| Colors: | 281 Trillion | Physical Pitch: | 2.97mm/3.91mm/4.81mm/6.25mm |
|---|---|---|---|
| Greyscale: | 16 Bit | Panel Material: | Die-Casting Aluminum |
| Brightness: | 900-1200 Nits | IP Rating: | IP40/IP21 |
| Refresh Rate: | ＞1920Hz | Servicing: | Front/Rear |
| Highlight: | P2.97mm Indoor Led Display,IP40 Indoor Led Display,ETL Indoor Led Display |
||

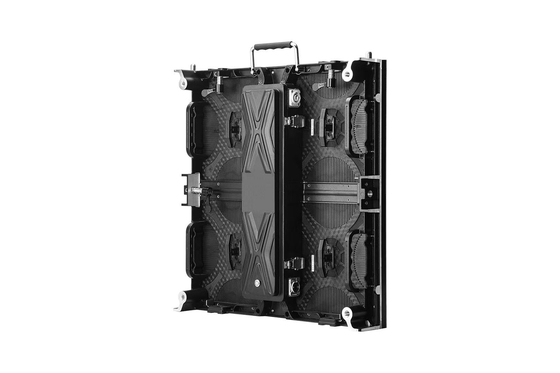

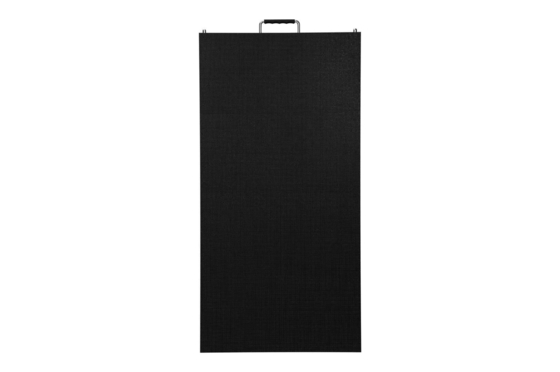

P2.97mm Indoor Led Display High Resolution High Refresh Rate Video Wall Wide
P2.97mm Indoor Led Display High-Resolution Video Wall Wide
BIR-II Series
One Chassis,
Various Module Options
Indoor Rental LED Display Features:
1. Show the beauty
4000: 1 high contrast, horizontal 160 °, vertical 140 ° viewing angle, support seamless splicing, high brush 1920Hz ,high gray 16bit.
2. Front and rear serviceable
Quick maintenance within 5 seconds with the magnetic tool.

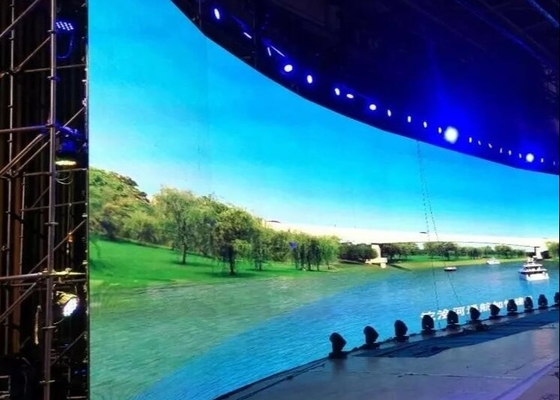

3. Curved shape available
±15 ° angle lock for curved screen, 90° right angle cabient for cubic screen.
4. Die-casting Aluminum
Leasing an LED video screen with die-casting aluminum frame design, the screen is super light and thin, saving space and costs, and fashionable and beautiful; Adopting die-casting aluminum improves heat dispersion, prolonging the lifetime of the led display.
5. Slim and lightweight
Convenient in transporting and installing & saving labor costs, suitable for flow shows.
Parameters:
| Pixel Pitch | 2.97mm | 3.91mm | 4.81mm | 6.25mm |
| Pixel Configuration | SMD2121 | SMD3528 | ||
| Pixel Density | 112,896pixels/m² | 65,536pixels/m² | 43,264pixels/m² | 25,600pixels/m² |
| Moduel Demensions(mm) | 250x250 / 250x500 | |||
| Panel Demension(mm) | 500x500 / 500x1000 | |||
| Resolution of Module | 84x84 / 84x68 | 64x64 / 64x128 | 52x52 / 52x104 | 80x80 / 80x160 |
| Grey Level | 16 bits(281 trillion colors) | |||
| Single Cabinet Weight | 7/13kg | |||
| Contrast Ratio | 4000 : 1 | |||
| Brightness | 900~1200 nits | |||
| Refresh Rate | 1920Hz | |||
| Average Power Consumption | 60/120 W/panel | |||
| Max Power Consumption | 110/400 W/panel | |||
| Viewing angle(H/V) | 160°/ 140° | |||
| Max Stacking | 20/10 | |||
| Max Hanging | 20/10 | |||
| Expected Lifetime | 100,000 hours | |||
| IP Rating (Front/Rear) | IP 40/IP 21 | |||
| Operating Temp/Humidity | -10℃~60℃ / 10%~60% | |||
| Storage Temp/Humidity | -30℃~60℃ / 10%~60% | |||
| Certification | CCC, CE, ETL, FCC | |||
Solutions:
Company Introduction:
Shenzhen BAKO VISION Technology Co.,Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holding end professional customers among domestic and overseas markets.
Do not be hesitate to contact us if you have any iquiry!
FAQ:
Q1. Do you provide samples?is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q2.How to order?
A:Please send us your purchase order by Email or we can make you proforma invoice under your request.
We need to know the following information for your order before sending you PI.
1)Product information-Quantity,Specification(Size,Material,Technological if needed and Packing requirements etc.
2)Delivery time required.
3)Shipping information-Company name,Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if there's any in China.
Q3. Do you offer guarantee for the products?
A: Yes,we offer 2-5 years warranty to our products.
