Product Details:
Payment & Shipping Terms:
|
| Product Name: | SMD Video Wall | Pixel Pitch: | P2.64, P2.97, P3.91, P4.81 |
|---|---|---|---|
| Moduel Size: | 250mmx250mm / 250mmx500mm | Cabinet Size: | 500mmx500mm / 500mmx1000mm |
| Panel Material: | Die-casting Aluminum | Brightness: | > 4500 Nits |
| Control System: | Novastar | Curved Design: | Optional |
| Application: | Concert, Car Show, Wedding Hall | Stock In U.S.: | Yes |
| Highlight: | 4500 Nits Backdrop Led Screen,4500 Nits Led Stage Backdrop,FCC Led Stage Backdrop Screen |
||

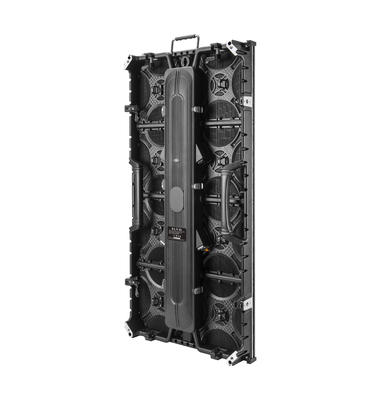

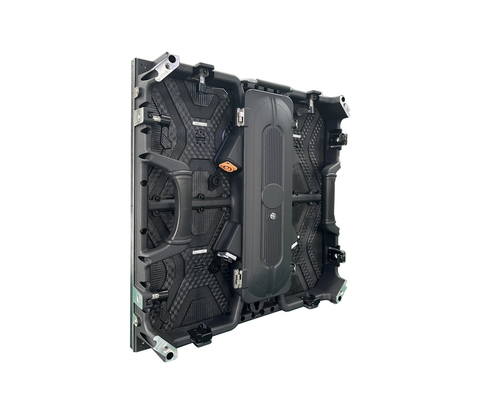

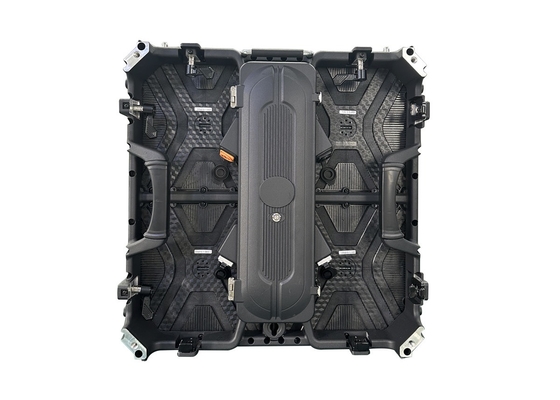

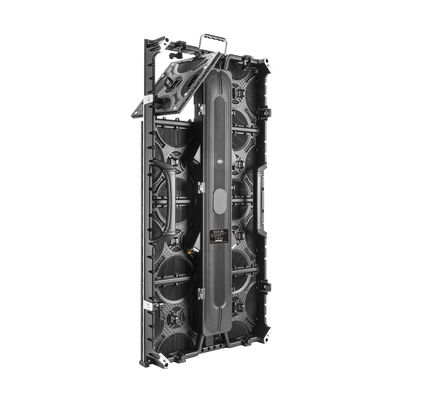

SMD Video Wall Led Title Inventory in CA and TX Outdoor Rentals
LED Title Features
1. UI LCD display
The rear LCD display shows voltage, temperature, cabinet operating time, and total hours of operation. Power and signal lamps indicate the cabinet status of SMD video wall.
2. Dual data connection
There is optional data connecting port on the bottom of the LCD box, which you can use if the standard one fails.
3. Strong Locks for hanging installation
A: The cabinet locks are smooth-edged, easy to handle, and strong that you can hang up to 20pcs cabinets vertically.
B: No tools are required for the SMD video wall installation.
C: The handle is innovative, gripped, and wide for easy handling.
5. Sleek and Slim design
500x1000mm & 500x500mm cabinets can be mixed assembly.
The cabinet is slim and the rear design smoothes an edged surface that makes you handle it safely for SMD video wall.
4. Concave or Convex
The cabinet can make curved shapes, from 0 to 15 degrees.
SMD Video Wall Parameters
| Pixel Pitch | 2.97mm | 3.91mm | 4.81mm | 6.25mm |
| Pixel Configuration | SMD2121 | SMD3528 | ||
| Pixel Density | 112,896pixels/m² | 65,536pixels/m² | 43,264pixels/m² | 25,600pixels/m² |
| Moduel Demensions(mm) | 250x250 / 250x500 | |||
| Panel Dimensions(mm) | 500x500 / 500x1000 | |||
| Resolution of Module | 84x84 / 84x68 | 64x64 / 64x128 | 52x52 / 52x104 | 80x80 / 80x160 |
| Grey Level | 16 bits(281 trillion colors) | |||
| Single Cabinet Weight | 7/13kg | |||
| Contrast Ratio | 4000: 1 | |||
| Brightness | 900~1200 nits | |||
| Refresh Rate | 3840Hz | |||
| Average Power Consumption | 60/120 W/panel | |||
| Max Power Consumption | 110/400 W/panel | |||
| Viewing angle(H/V) | 160°/ 140° | |||
| Max Stacking | 20/10 | |||
| Max Hanging | 20/10 | |||
| Expected Lifetime | 100,000 hours | |||
| IP Rating (Front/Rear) | IP 40/IP 21 | |||
| Operating Temp/Humidity | -10℃~60℃ / 10%~60% | |||
| Storage Temp/Humidity | -30℃~60℃ / 10%~60% | |||
| Certification | CCC, CE, ETL, FCC | |||

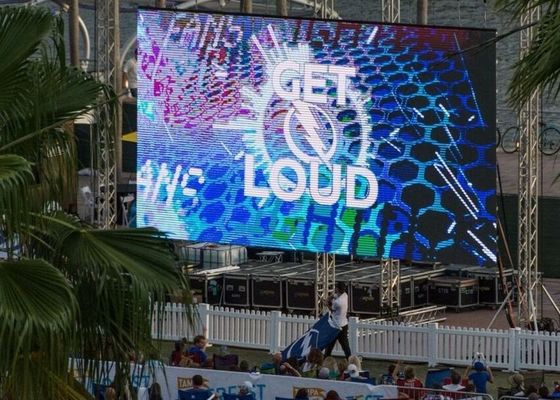

LED Panel Inventory Cases
FAQ:
1. How long is the warranty period?
We provide 2 years warranty and free repair service for our products sold.
2. Is Available to print customer required logo on your LED Stage Backdrop?
Surely it is. Please inform and confirm the logo details with our team ahead of production.
3. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
4. Can I have a sample order for led lamps?
Yes, we welcome sample orders to test and check quality of our SMD video wall. Mixed samples are acceptable.
5. Why choose bako vision?
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world-class manufacturer of technologically advanced SMD video wall, focusing on high-end professional customers in domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, and creative LED models besides standard SMD video wall.
BAKO VISION contains experienced team leaders and each of them has been working in the SMD video wall industry for over 10 years.
All of our R&D, Production, Sales, and Technical Support depts….are running efficiently and smoothly through our great teamwork, moreover, delivering qualified products and offering timely pre-after service is also assured by the BAKO VISION team.
Welcome to visit our L.A. warehouse here, SMD video wall inventory for the USA, with fast delivery~
