Product Details:
Payment & Shipping Terms:
|
| Pitch: | 8mm/10mm | Led Type: | SMD |
|---|---|---|---|
| Cabinet Size: | 960x960 | Brightness: | 6500nits |
| IP Rate: | IP65 | Refresh Rate: | 3840 Hz |
| Highlight: | P10 Stadium Perimeter Led Display,P10 Sports Perimeter LED Display,Sports Perimeter LED Display IP65 |
||

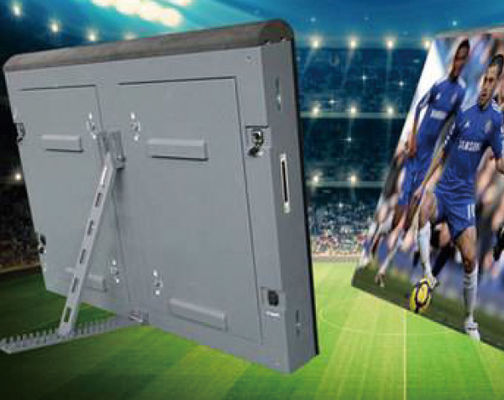

P8/P10 Stadium Sports Perimeter LED Display High Refresh Rate IP65 Fast Installation
P8/P10 Sports Perimeter Stadium Advertising Boards
Product Description of P8/p10 Stadium Perimeter Sports LED Display
| Parameter | Unit | Value |
| Pitch | mm | 6 |
| Brightness | nits | 6,500 |
| Color temperature | deg. K | 6,500 |
| Viewing angle – Horizontal (50% brightness) | deg. | 140(-70 ~ +70) |
| Viewing angle – Vertical (50% brightness) | deg. | 140(-70 ~ +70) |
| Panel weight | kg | 37 |
| Panel width | mm | 960 |
| Panel height | mm | 960 |
| Panel depth | mm | 134 |
| Panel area | sq. m. | |
| Panel material | Epoxy paint coated aluminum | |
| Panel Mode | Quick Assembly Cabinet with Bracket | |
| Panel protection | Soft mask | |
| Ingress protection (front/rear) | IP | IP22/IP43 |
| Operating temperature range | deg. C | -30 to +60 |
| Humidity operating | RH | 10% ~ 90% |
| Pixel type and configuration | R/G/B | 3in1 SMD |
| Resolution per panel | 320×160 | |
| Dot per panel | 10000 | |
| Dot per sq. meter | 27,777 | |
| LED per sq. meter | 27,777 | |
| Recommended minimum viewing distance | m | 4.56 |
| Recommended best viewing distance | m | 10~60 |
| Colors | 281 Trillion | |
| Grey scale (linear) | Levels | 65,536 levels per color |
| Brightness control | Levels | 100 |
| Contrast ratio | 1,000:1 | |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 180~3,000 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts/ cabinet. | 1,000 |
| Input power (typical) | Watts/ cabinet. | 400 |
| Lifetime (50% brightness) | Hours | ≥100,000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 520~525 |
| Blue wavelength (dominant) | nm | 470~475 |
| Multimedia data format | DVI,MPG,AVI,WMV,RM etc. | |
| Data interconnection | UTP Cat 5/Optical Fiber | |
| Mounting system | Stand on ground by bracket |

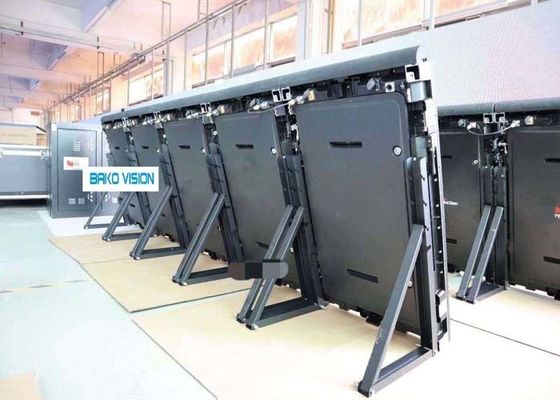

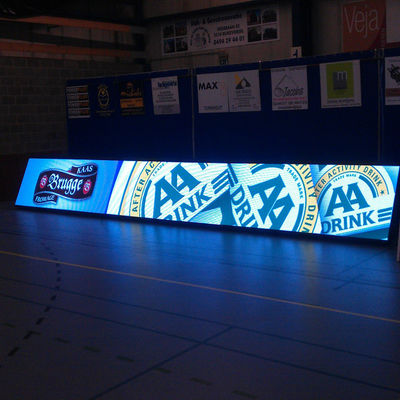

Sports Perimeter Stadium Advertising Boards Cases
FAQ:
Q1: The warranty of your LED dispaly ?
A: We offer 2-3 year warranty for our different led display screen series, 100,000 hours life span for the led lamps, and lifetime technology support with 7/24 phone answering service if you have any problem with our led screen.
Q2: Whats your payment term? How long it takes to delivery?
A: We normally accept T/T and L/C,and other payment options is negotiable for your convenience. A 30% deposit is needed in advance, and the rest 70% be paid before delivery. Our average lead time is 15 days.
Q3: What's the controlling system?
A: Our standard controlling system for this model is Novastar. Also support other controlling system such as Linsn, etc.
About Us
►Rich experience: established in 2005; familiar with technical and material about LED display.
►Absolute OEM service: providing the most suitable solution for you according to your different demands (such as quality, price and etc.). At least 3 different types in one material are provided for your choice , and with the lowest-cost custom service.
►Powerful R&D ability: excellent engineers are constantly developing new products and improving them.
►Good quality:All products have passed CE, ROHS, FCC certification.
►Thoughtful service: we always serve you heart and soul, striving to make our products meet your demands in maximum degree.
We guarantee all our LED products for 2 years and provide lifetime maintenance charging only for raw materials. We provide an excellent after-sale service, which contains free training, free CAD drawings, for more convenience and free consultation lifetime.
