Product Details:
Payment & Shipping Terms:
|
| Material: | Die-casting Aluminum | Brightness: | 5500 Nits |
|---|---|---|---|
| Panel Size: | 1024 X 768mm | Module Size: | 512 X 256 |
| Servicing: | Front/Rear | Viewing Angle: | 160°（H）140°（V） |
| Highlight: | 5500 Nits outdoor LED video display,Building Billboard outdoor LED video display,RoHS outdoor led video display board |
||
Outdoor LED Display Video Wall for Building Billboard
Features:
1. Lightweight large format,slim and smart ideal substitution for traditional outdoor buckly and heavy cabinet.
2. One standard chassis 1024mm x 768mm, covering pitches from 2.6mm to 10.6mm.
3. Suitable brightness adjustable for outdoor day and night.
4. Deep black levels, contrast ratio 4000 : 1

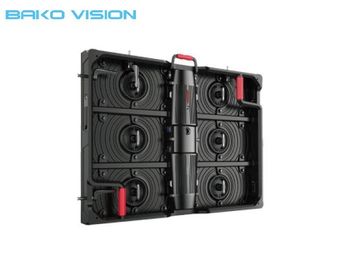

5. Die-casting cabinet, 27~35kg per cabinet, 100mm thickness.
6. Fanless design
Application:
Shopping malls, railways, airports,commercial advertising, Stadium perimeter, business establishments, etc.
Warranty:
We provide 2 years warranty. During this period, we provide free parts for replacement , but we will charge you productive cost for the parts when the warranty expires.
Parameters:
| BDF-3 | BDF-5 | BDF-6 | BDF-8 | |
| Physical Pitch | 3.2mm | 5.33mm | 6.4mm | 8mm |
| Pixel Configuration | SMD 1617 | SMD 1921 | SMD 2727 | SMD 2727 |
| Pixel Density | 97,656 pixels/m² | 35,200 pixels/m² | 24,414 pixels/m² | 15,625 pixels/m² |
| NO.of Modules Per Panel (W × H) | 512 × 256 | 512 × 256 | 512 × 256 | 512 × 256 |
| Module Dimensions (W× H)(mm) | 1024 × 768 × 100 | 1024 × 768 × 100 | 1024 × 768 × 100 | 1024 × 768 × 100 |
| Panel Dimensions (mm) | 2 × 3 | 2 × 3 | 2 × 3 | 2 × 3 |
| Physical Resolution of Module (W × H) | 160 × 80 | 96 × 48 | 80 × 40 | 64 × 32 |
| Physical Resolution of Panel (W × H) | 160 × 80 | 96 × 48 | 32 × 16 | 128 × 96 |
| Panel Material | Die -Casting | Die -Casting | Die -Casting | Die -Casting |
| Average Power Consumption | 240 W / panel | 240 W / panel | 240 W / panel | 350 W / panel |
| Max Power Consumption | 600 W/ panel | 600 W/ panel | 600 W/ panel | 700 W/ panel |
| Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz |
| Brightness | ≥ 4,000 nits | ≥ 4,500 nits | ≥ 5,500 nits | ≥ 5,500 nits |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP65 / IP54 | IP65 / IP54 | IP65 / IP54 | IP65 / IP54 |
| Operating Temp/Humidity | -20℃ - 60℃ / 10% - 90% | -20℃ - 60℃ / 10% - 90% | -20℃ - 60℃ / 10% - 90% | -20℃ - 60℃ / 10% - 90% |
| Storage Temp/Humidity | -30℃ - 60℃ / 10% - 90% | -30℃ - 60℃ / 10% - 90% | -30℃ - 60℃ / 10% - 90% | -30℃ - 60℃ / 10% - 90% |
| Scan Method | 1/20 Scan | 1/5 Scan | 1/5 Scan | 1/4 Scan |

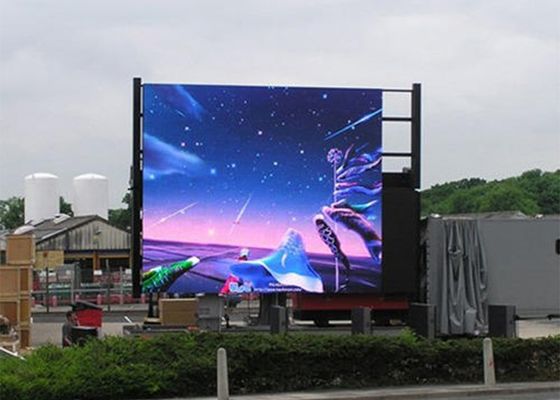

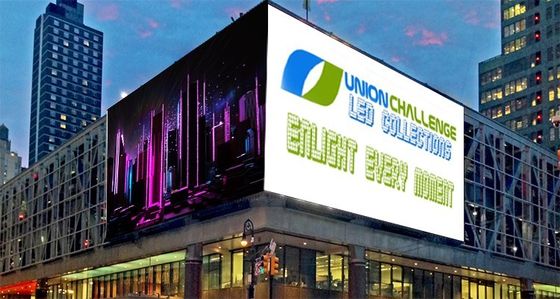

Cases:
FAQ:
1. How can you ensure the led display product quality?
Before shippment, all the screens have aging test. And then we also have waterproof test and shake test, to ensure transportation safety and normal use of our products.
2. What is your terms of payment?
T/T or Western Union 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3.How to choose a proper led screen for need?
You need to think about the following three questions.
1) Where will you use for?Just for indoor or outdoor?
2) Did you want to install it in one fixed place or want it to move anytime and anyway convenient?
3) what is the specific size of the led screen you would like to purchase?
4. How to install it after received?
We will offer you the drawing to guide you for installation, even send our engineer to you for help if needed.
