Product Details:
Payment & Shipping Terms:
|
| Pixels: | 8mm, 10mm, 16mm | Tube Chip Color: | Full Color |
|---|---|---|---|
| Brightness: | 6500cd/sqm | Warranty: | 2years |
| Module Size: | 256mm*256mm, 320mm*320mm, 256mm*128mm | Life Span: | 100000hours |
| Color: | Full-color | Pixel Density: | 10000 |
| Scan Mode: | 1/2 Scan, 1/4 Scan | Cabinet Size: | 1280*768*187mm, 1280*960*187mm |
| Design: | Soft Mask To Protect The Player | ||
| Highlight: | Sports Perimeter LED Display IP40,Outdoor ETL Sports Perimeter LED Display,6500cd/sqm Stadium Sports LED Display |
||

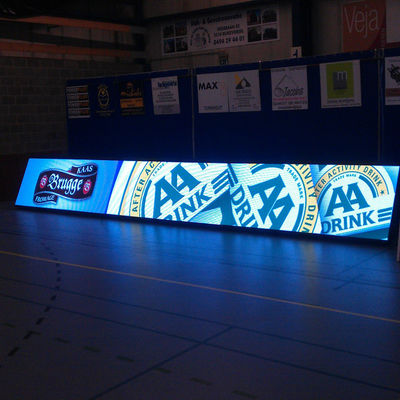

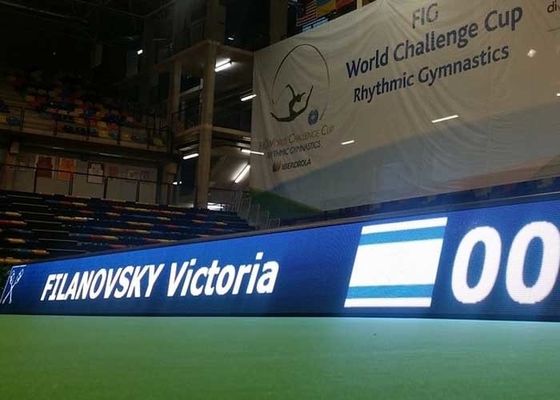

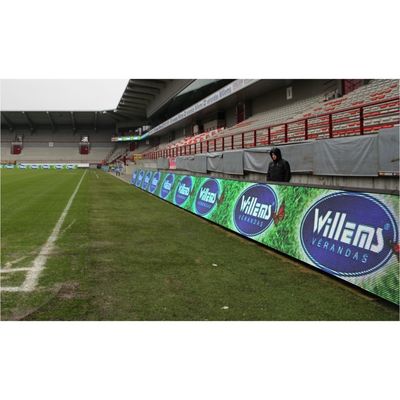

IP40 Sports Perimeter LED Display 6500cd/sqm Outdoor ETL
Products Description
| BSP-8 | BSP-10 | BSP-16 | |
| Physical Pitch | 8mm | 10mm | 16mm |
| Pixel Configuration | SMD3535 | SMD3535 | SMD3535 |
| Pixel Density | 15,625 pixels/㎡ | 10,000 pixels/㎡ | 3,906 pixels/㎡ |
| Module Dimensions(WxH)(mm) | 256 x 256 | 320 x 320 | 256 x 128 |
| NO. of Modules Per Panel(WxH) | 5 x 3 | 4 x 3 | 5 x 7 |
| Physical Resolution of Modules(WxH) | 32 x 32 | 32 x 32 | 16 x 8 |
| Physical Resolution of Whole Set(WxH) | 160 x 96 | 128 x 96 | 160 x 56 |
| Panel Material | Steel/Aluminum | Steel/Aluminum | Steel/Aluminum |
| Weight(m²) | 70/50kg /m² | 70/50kg /m² | 70/50kg /m² |
| Gray Scale | 16 bit | 16 bit | 16 bit |
| Colors | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 2,000: 1 | 2,000: 1 | 2,000: 1 |
| Average Power Consumption | 360 W / m² | 360 W / m² | 360 W / m² |
| Max Power Consumption | 900 W / m² | 900 W / m² | 900 W / m² |
| Operating Temp/Humidity | -20℃-50℃ / 10% - 90% | -20℃-50℃ / 10% - 90% | -20℃-50℃ / 10% - 90% |
| Storage Temp/Humidity | -20℃-50℃ / 10% - 90% | -20℃-50℃ / 10% - 90% | -20℃-50℃ / 10% - 90% |
| Refresh Rate | ≥2,880Hz | ≥2,880Hz | ≥2,880Hz |
| Brightness | >6,500 nits | >6,500 nits | >6,500 nits |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.
Q2. What are your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Do you provide samples? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, the sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q6. Do you offer a guarantee for the products?
A: Yes, we offer a 2-5 years warranty on our products.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q8: How can I get technical support?
A:1, We will train in our factory and send video for showing. The training includes system use, system maintenance, and equipment protection.
Company Info:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world-class manufacturer of technologically advanced LED displays, focusing on high-end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailored work of OEM, ODM, creative LED models besides standard LED screens.
BAKO VISION's main markets are among America, Europe, the Middle East, and Asia, all of our products are certificated by RoHS, CCC, CE, FCC, ETL, UL. Standing firmly by quality, winning firmly by proficiency, in the past years of development, BAKO VISION's continuous growth and brand positioning are all relied on by the long-term partnership with a variety of channel customers over 120+ countries.
