| Physical Pitch: | 8mm | Pannel Material: | Steel/Aluminum |
|---|---|---|---|
| Servicing: | Front/Rear | Viewing Angle: | 160°/140° |
| Refresh Rate: | ＞1920Hz | Contrast Ratio: | 2000:1 |
| Brightness: | ＞6500nits | IP Rating(Front/Rear): | IP65/IP54 |
| Highlight: | P8 Billboard LED Display,IP65 Billboard LED Display,IP65 billboard led screen |
||
P8 Outdoor Cloud control Advertising Billboard Led Screen Outdoor Wall mounted Display
Outdoor Fixed Billboard Features
* One standard chassis 960 x 960mm,covering pitches from 4 mm to 16 mm
* Deep black level ,contrast ratio 4000:1
* Steel Cabinet with Fan, Cooling system for hot weather
* Slim,about 100 mm thickness
* Suitable brightness,adjustable for outdoor day and night
* Fast lock system design guarantee a quick easy installation
* Front and rear access
* Outdoor rated, IP65 front
LED Billboard Specification:
| Physical Pitch | 8mm |
| Pixel Configuration | SMD3535 |
| Pixel Density | 15,625 pixels/Sqm |
| Module Dimensions(W x H) (mm) | 320 x 320 |
| Panel Dimensions (mm) | 960 x 960 x 150 |
| NO. of Modules Per Panel (W x H) | 3 x 3 |
| Physical Resolution of Module (W x H) | 40 x 40 |
| Physical Resolution of Panel (W x H) | 120 x 120 |
| Panel Material | Steal / Aluminum |
| Weight (kg/Sqm) | 40 |
| Processing | 16bit |
| Colours | 281 trillion |
| Contrast Ratio | 2,000 : 1 |
| Average Power Consumption | 360 W / Sqm |
| Max Power Consumption | 900 W / Sqm |
| Average Power After Energy Saving | 90 W /Sqm |
| Max Power After Energy Saving | 230 W /Sqm |
| Brightness | >6,500 nits |
| Refresh Rate | >1,920 Hz |
| Vertical Viewing Angle | 160° |
| Horizontal Viewing Angle | 140° |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Rear |
| IP Rating (Front/Rear) | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/10 Scan |

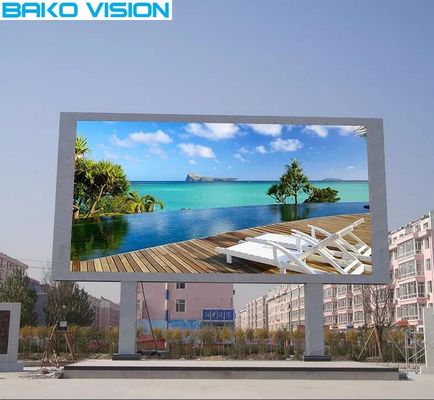

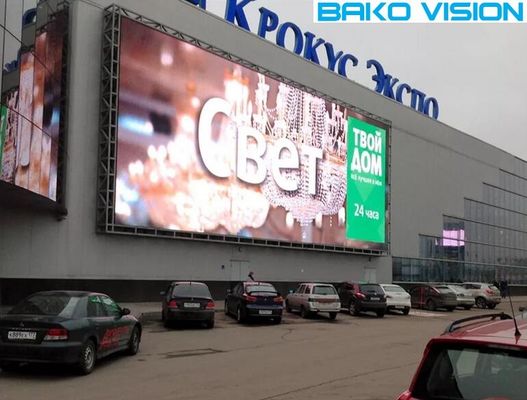

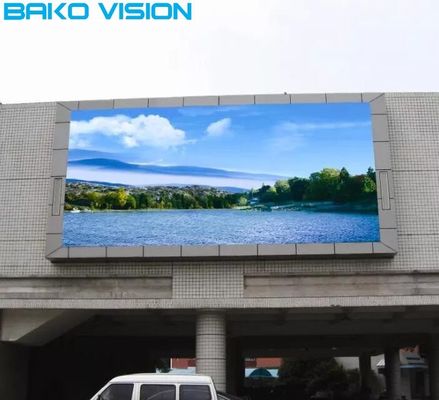

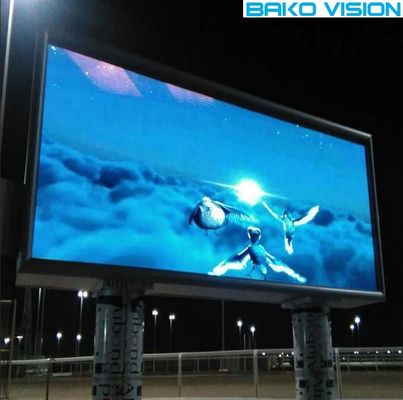

Wall Mounted Screen Case
FAQ
Q1: What's the warranty of your LED Display Screen ?
A1: We have a 2-year warranty for our led display screen, and 100,000 hours life span of the led lamps.
Q2: What about your pre-sale service and post-sale service?
A2: For pre-sale service: We have a professional sales team and a 12 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project!
For post-sale service: We can instruct you how to use, adjust the screens, and change the boken modules with spare parts.
Also, we can send technicals to your country to solve problems. Mostly, our led display will not have big problems within warranty time!
Q3: Whats your payment term? How long it takes to delivery?
A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.
Our average Production time is 16 days, after receiving the deposit.
Q4: What's the control system?
A4: For synchronization control: We use Nova, Linsn Or Colorlight control system.
For asynchronous control: We use Onbon, or Xixun control system.
Q5: How can you ensure the led display product quality?
A5: Our led display screen quality is our core competence, for 14 years, what we rely on.
We have each stardard process to make quality products.
If any quality failures within warranty time, we will refund you by email.
