Product Details:
Payment & Shipping Terms:
|
| Panel Material: | Steel/Aluminum | Brightness: | >6,000 Nits |
|---|---|---|---|
| Servicing: | Rear | IP Rating(Front/Rear): | IP65/IP54 |
| Refresh Rate: | >1,920 Hz | Processing: | 16 Bit |
| Highlight: | IP65 Outdoor Fixed LED Display,IP54 Outdoor Fixed LED Display,IP54 LED Advertising Billboard Screen |
||

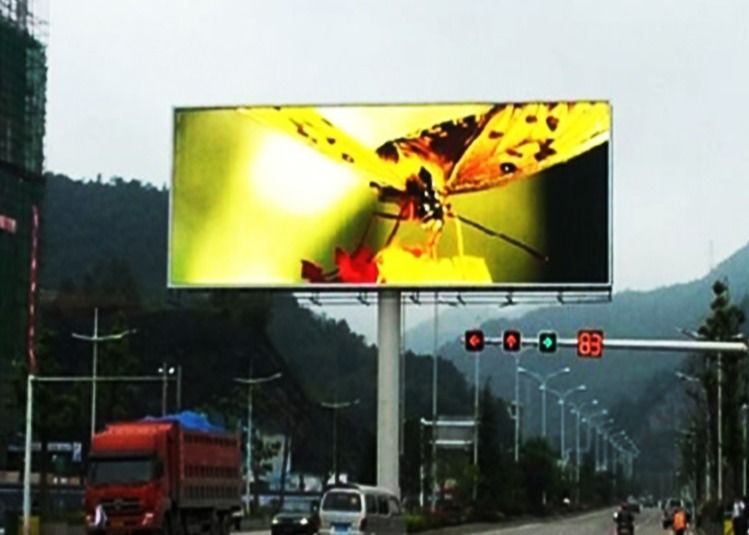

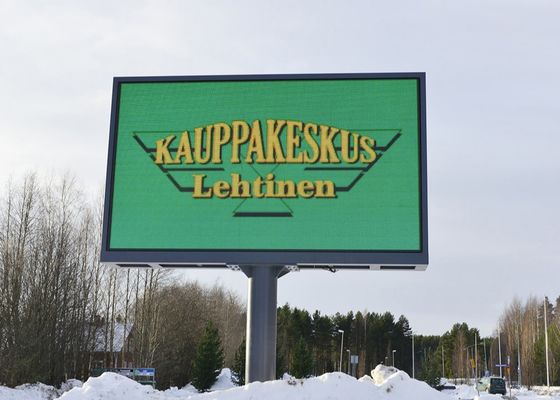

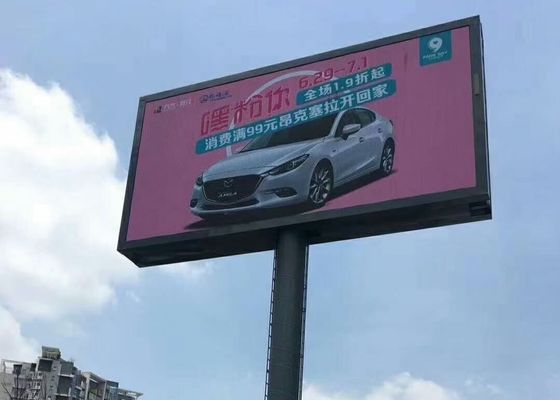

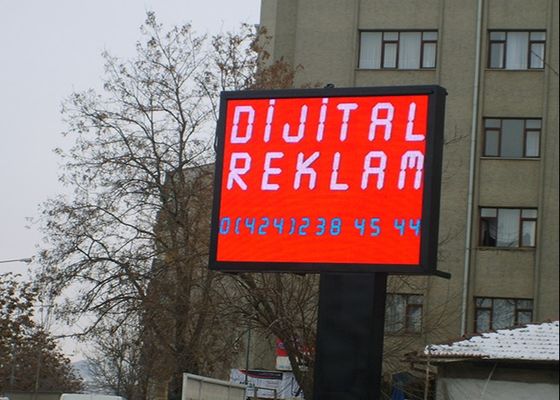

IP65 Waterproof Dustproof Outdoor Pillar Stand LED Advertising Billboard Screen
P4 Outdoor Fixed Led Billboard Display Panel Specification
| BOF-B-4 | |
| Physical Pitch | 4 mm |
| Pixel Configuration | SMD1818 |
| Pixel Density | 62,500 pixels/m² |
| Module Dimensions (W × H) (mm) | 320 × 160 |
| Panel Dimensions (mm) | 960 × 960 × 150 |
| NO .of Modules Per Panel (W × H) | 3 × 6 |
| Physical Resolution of Module (W × H) | 80 × 40 |
| Physical Resolution of Panel (W × H) | 240 × 240 |
| Panel Material | Steel / Aluminum |
| Weight(m²) | 65/45 |
| Processing | 16 bit |
| Colours | 281 trillion |
| Contrast Ratio | 2,000 : 1 |
| Average Power Consumption | 360W/m² |
| Max Power Consumption | 900 W/ m² |
| Brightness | ≥5500 nits |
| Refresh Rate | ＞1,920 Hz |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing angle | 140° |
| Expected Lifetime | 100, 000 Hrs |
| Servicing | Rear |
| IP Rating | IP 65 |
| Operating Temp/Humidity | -20℃-50℃ / 10%-90% |
| Storage Temp/Humidity | -20℃-50℃ / 10%-90% |
| Scan Method | 1/8 Scan |
Company introduction:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
The advantages of Shenzhen Bako Vision Technology Co., Ltd:
1. We are engaged in led display industry for more than 12 years;
2. Over 20,000sqm workshop with 500 skilled workers and 100 talented engineers;
3. Export to 200 countries, and 98% got positive feedback from our clients;
4. Some products won reddot award;
5. We not only offer high quality products, but also offer full package solution like offer professional solution, inspection on site, framework drawing, guidance during installation, training, 24 hours online after sales service, etc.
Features of our products:
1. Different IP rate
2. In very hot area, we make white color cabinet instead of black colour cabinet, so white cabinet absorb less heat from the sun;
3. Inside cabinet, dust-proof net is embedded, esp for installation location such as near highway, desserts area, etc;
4. Exhausted fans are embedded inside cabinet box for heat sink, since high temperature is the killer of led display;
5. For location like sea island or highway, we offer double deck cabinet, and brush more thicker layer of paint for preventing humidity;
6. For outdoor ads display, we only recommend clients of Nationstar leds, because of reliability and excellent performance;
7. Once order is fixed, we will make design of framework for our clients for reference, based on actual installation location;
8. In the middle of installation, we send engineer to guide our clients how to do installation;
