| Physical Pitch: | 8mm | Pannel Material: | Steel/Aluminum |
|---|---|---|---|
| Servicing: | Front/Rear | Viewing Angle: | 160°/140° |
| Refresh Rate: | ＞1920Hz | Contrast Ratio: | 2000:1 |
| Brightness: | ＞6500nits | IP Rating(Front/Rear): | IP65/IP54 |
| Highlight: | 8mm outdoor led billboard,SMD3535 outdoor led billboard,SMD3535 billboard led screen |
||
P8 Outdoor Fixed Install Front Maintenance LED Display Screen Advertising Billboard
Energy Saving LED Billboard Quick Details:
1, Pixel Pitch: 8mm.
2, SMD LEDs, Wide viewing angle: 160°/ 140°.
3, Digital Process: 16bits.
4, Standard cabinet size: Customized, cabinet weight:40kg/Sqm.
5, Warranty: 2years.
6, Recommended minimum viewing distance: 10m.
Energy Saving LED Screen Description:
Bako Vision outdoor Energy Saving Led digital billboards pixel include 8mm, 10mm, within these pixels, 8mm is the most hot-selling and highest cost-effective series.
Energy Saving LED Billboard Application:
Bako Vision outdoor led electronic billboards are widely installed on poles, single pole-mounted, dual pole-mounted, or tri-pole mounted, doing advertisement or broadcasting for airport, bus station, railway, government, school, shopping mall, public places, advertising media and so on.
Energy Saving LED Billboard Features:
1, High IP Rating IP65, good waterproof and dust resistance, suitable for every condition.
2, Wide viewing angle 160° for broader reach, seamless in all direction with same image quality output, suitable for large gatherings.
3, High brightness from 4,000nits to 6,000nits, visible from every direction even face to direct sunshine.
4, Good heat dissipation with fans and using meanwell power supply, long lifespan.
5, High fresh rate up to 2,000Hz, high contrast to 2,000:1, vivid color.
6, With Bako Vision Energy Saving technique, the power consumption reduce from 360W/Sqm to 90W/Sqm. If you install a 10 Sqm screen and light it for 15 hours per day. Then there will consume 19,710 Kw/h one year if you use old product, then if you use our energy saving screen, then there only consume 4927.5 Kw/h one year, it saves 14782.5 Kw/h one year. This can save lots of your energy cost.
Energy Saving LED Billboard Specification:
| Physical Pitch | 8mm |
| Pixel Configuration | SMD3535 |
| Pixel Density | 15,625 pixels/Sqm |
| Module Dimensions(W x H) (mm) | 320 x 320 |
| Panel Dimensions (mm) | 960 x 960 x 150 |
| NO. of Modules Per Panel (W x H) | 3 x 3 |
| Physical Resolution of Module (W x H) | 40 x 40 |
| Physical Resolution of Panel (W x H) | 120 x 120 |
| Panel Material | Steal / Aluminum |
| Weight (kg/Sqm) | 40 |
| Processing | 16bit |
| Colours | 281 trillion |
| Contrast Ratio | 2,000 : 1 |
| Average Power Consumption | 360 W / Sqm |
| Max Power Consumption | 900 W / Sqm |
| Average Power After Energy Saving | 90 W /Sqm |
| Max Power After Energy Saving | 230 W /Sqm |
| Brightness | >6,500 nits |
| Refresh Rate | >1,920 Hz |
| Vertical Viewing Angle | 160° |
| Horizontal Viewing Angle | 140° |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Rear |
| IP Rating (Front/Rear) | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/10 Scan |

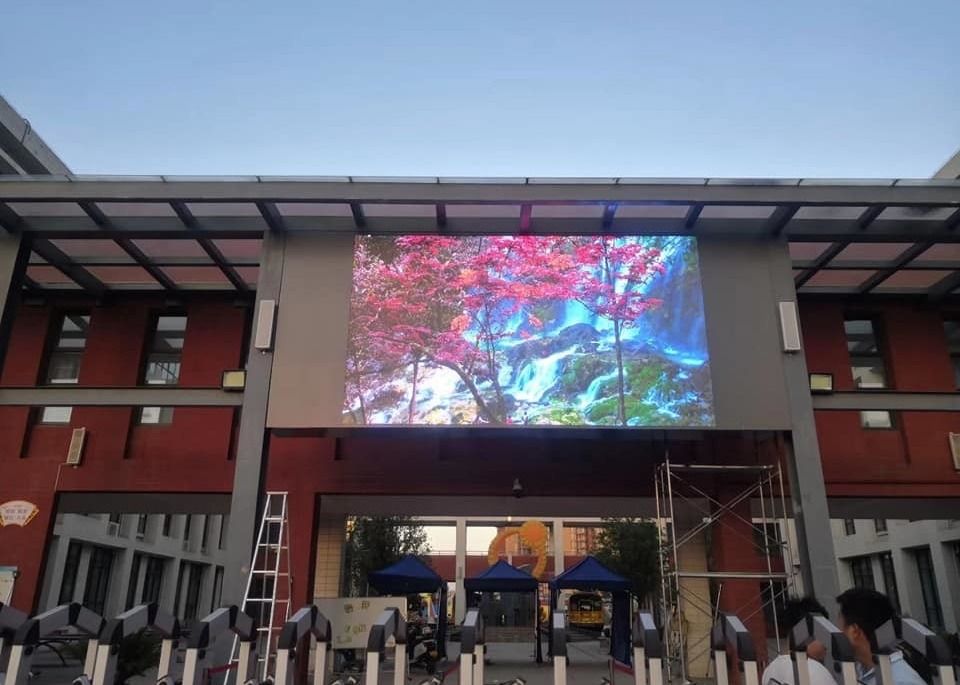

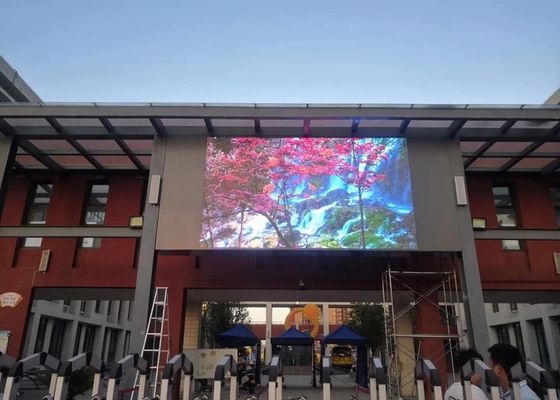

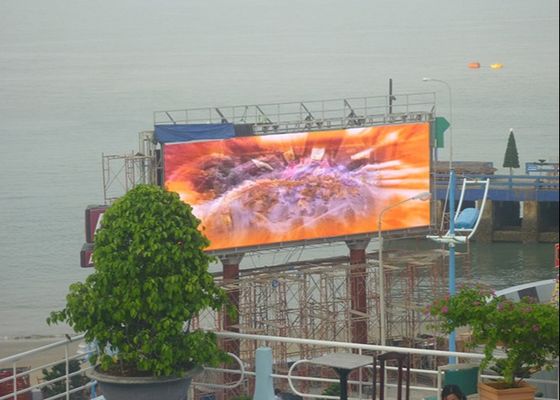

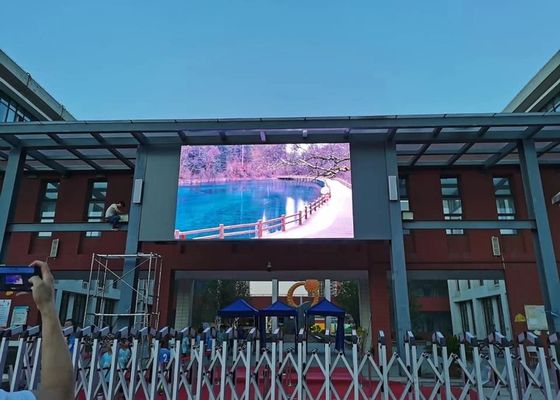

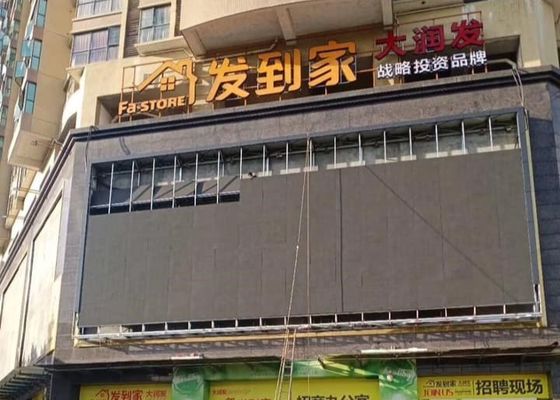

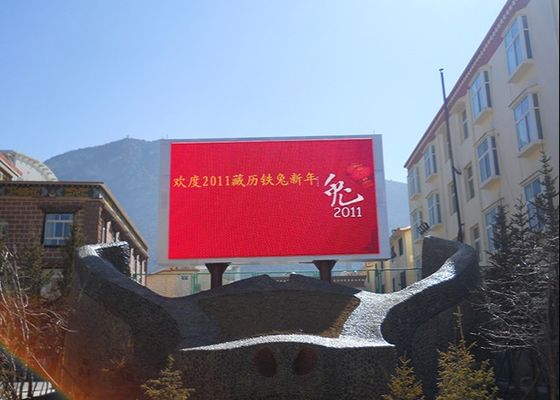

Energy Saving LED Billboard Case
