Product Details:
Payment & Shipping Terms:
|
| Product Name: | Mobile LED Screens | Physical Pitch: | 3mm, 4.81mm, 5mm, 6.67mm, 8mm, 10mm |
|---|---|---|---|
| Module Size: | 320*160mm/320*320mm | Cabinet Material: | Steel/Aluminum |
| Cabinet Size: | Customized | LEDs: | Nationstar/Kinglight |
| Maintenace Way: | Front/Rear | Brightness: | 5,000 Nits - 7,500 Nits |
| Refresh Rate: | 1920Hz / 2880Hz / 3840Hz | Viewing Angle: | 160°/140° |
| IP Rating(Front/Rear): | IP65/IP54 | Average Power Consumption: | 90/360 W/m2 |
| Max. Power Consumption: | 230/900 W/m2 | Contrast Ratio: | 2000:1 |
| Life Span: | 100,000 Hours | Warranty: | 2-5 Years |
| HS Code: | 8528591090 | ||
| Highlight: | High Brightness LED Truck Display,5000 nits LED Truck Display,mobile digital led billboard advertising truck |
||

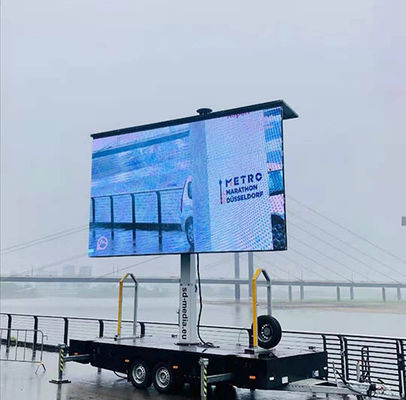

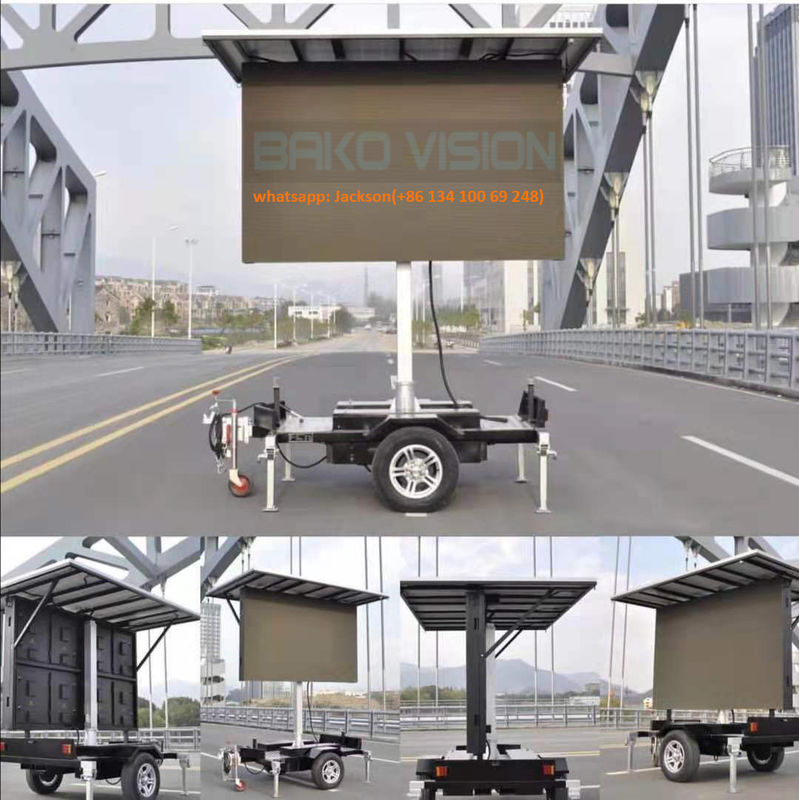

Outdoor High Brightness Mobile Trailer LED Truck Display Screen with Lifting Function
BOF Series (BOF-F.pdf/BOF-B.pdf)
Trailer LED Screens
| Specification | |
|---|---|
| Pixel Pitch(mm): | 3 / 4.81 / 5 / 6.67 / 8 / 10 |
| Brightness(nits): | 5,000 - 7,500 nits |
| Refresh Rate(Hz): | 1920 / 2880 / 3840 Hz |
| Key Point: | Most common outdoor LED billboard |
1. Competitive prie: 12,000usd per unit.
2. Moving ads available in every corner of city.
3. Easy operation, only 1 person can handle all staff.
4. High brightness, refresh pictures available.
Trailer LED Billboard Features
Outdoor LED Display Parameters
| BOF-B-8 | |
| Physical Pitch | 8 mm |
| Pixel Configuration | SMD 3535 |
| Pixel Density | 15,625 pixels/m² |
| Module Dimensions (W × H) (mm) | 320 × 160 |
| Panel Dimensions (mm) | 960 × 960 × 150 |
| NO .of Modules Per Panel (W × H) | 3 × 6 |
| Physical Resolution of Module (W × H) | 40 × 20 |
| Physical Resolution of Panel (W × H) | 120 × 120 |
| Panel Material | Steel / Aluminum |
| Weight(m²) | 65/45 |
| Processing | 16 bit |
| Colours | 281 trillion |
| Contrast Ratio | 2,000 : 1 |
| Average Power Consumption | 360 W/m² |
| Max Power Consumption | 900 W/ m² |
| Brightness | ≥6500 nits |
| Refresh Rate | ＞1,920 Hz |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing angle | 140° |
| Expected Lifetime | 100, 000 Hrs |
| Servicing | Rear |
| IP Rating | IP 65 |
| Operating Temp/Humidity | -20℃-50℃ / 10%-90% |
| Storage Temp/Humidity | -20℃-50℃ / 10%-90% |
| Scan Method | 1/4 Scan |
Digital LED Panel Advantages
1. Lower temperature, generally is 10-16 ℃ lower than convertional screens.
2. Uniform heat, constant color temperature, ensuring uniformity of the entire screen, no distortion of the image effect.
3. Natural heat dissipation does not require air conditioning/fans, zero noise when the screen works.
4. Lower power consumption, energy-efficient IC, reduce circuit losses, 70% energy saving.
5. Both front and rear service are available, easy and fast operation.
Trailer LED Applications
