Product Details:
Payment & Shipping Terms:
|
Pixel Pitch: | 3.91mm | Cabinet Size: | 500 X 500mm / 500 X 1000mm |
---|---|---|---|
Weight: | 9 / 14 Kg/Panel | Warranty: | 2 Years |
Brightness: | >5500nits | Certification: | CE,UL,FCC,ISO9001 |
Highlight: | P3.91 Fold Outdoor Rental LED Display,3.91mm Outdoor Rental LED Display,P3.91 foldable led display |
P3.91 Creative Product Fold Screen Easy carry Easy Install No Frame Design for stage speak and performance
Product Profile:
Bako BF series indoor full color foldbale LED screen is slim and portable which can 180 or 360 degree foldable. The product have variable foldbale modules and can save space and transportation cost.
Foldable LED screen Advantage and Features:

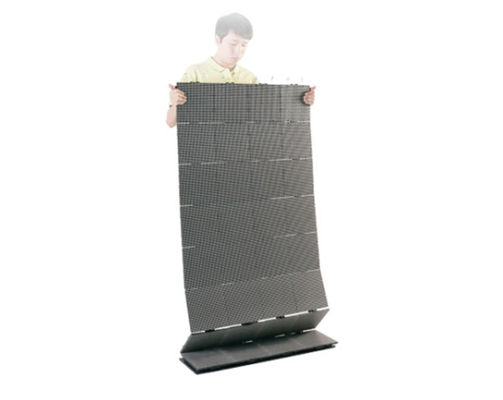

(1) Easy carry and installation. This screen is super slim and light weight that <12kg per square meter. One person can take it easily to everywhere and can install it just with few steps as below.
(2) High brightness (The highest brightness can meet 6,000 nits) , no problem to work during daytime . Brightness can be lowered so perfectly to be used in the evening too
(3) The modules size can be 160 x 160mm,so you can use it to constitute any size screen.
(4) The modules can be 180 or 360 degree foldable, so it can save space during transportation and storage. Also it can save time for express as it's very easy carry during express.
(5) Due to the space saving and light weight, so the transportation cost will be much lower than other screens. You can save much cost once sending the screen to other place.

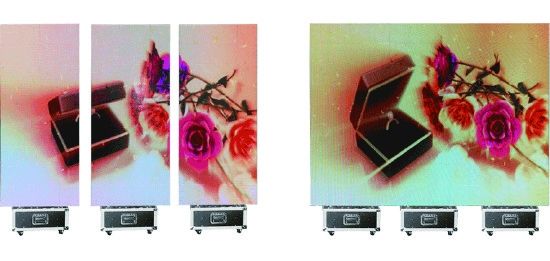

(6) As the modules can be 180 or 360 degree foldable, so you can use it to build different construction screen which make the screen unique compare with other screen.
Parameters:
BF | ||||
BF-6 | BF-7 | BF-10 | BF-12 | |
Physical Pitch | 6mm | 7.8mm | 10mm | 12mm |
Pixel Configuration | SMD3528 | SMD3528 / SMD3535 | SMD3528 | SMD3528 |
Pixel Density | 27,556 pixels/square meter | 16,384 pixels/square meter | 10,000 pixels/square meter | 6,889 pixels/square meter |
United Size (mm) | 192 x 192 | 250 x 250 | 160 x 160 | 192 x 192 |
Physical Resolution of Unit (W x H) | 32 x 32 | 32 x 32 | 16 x 16 | 32 x 32 |
Weight (kg/square meter) | <10 | <9 | <9 | <9 |
Processing | 16bit | 16bit | 16bit | 16bit |
Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
Contrast Ratio | 2,000:1 / 4,000 : 1 | 2,000:1 / 4,000 : 1 | 2,000:1 / 4,000 : 1 | 2,000:1 / 4,000 : 1 |
Average Power Consumption | 150 / 310 W/square meter | 90 / 200 W/square meter | 110 W/square meter | 75 W/square meter |
Max Power Consumption | 375 / 775 W/square meter | 225 / 500 W/square meter | 275 W/square meter | 187 W/square meter |
Operating Temp/Humidity | -10ºC - 60ºC / 10ºC - 60ºC | -10ºC - 60ºC / 10ºC - 60ºC | -10ºC - 60ºC / 10ºC - 60ºC | -10ºC - 60ºC / 10ºC - 60ºC |
Storage Temp/Humidity | -30ºC - 60ºC / 10ºC - 60ºC | -30ºC - 60ºC / 10ºC - 60ºC | -30ºC - 60ºC / 10ºC - 60ºC | -30ºC - 60ºC / 10ºC - 60ºC |
Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz |
Brightness | 2000 / 4,000nits | 1500 / 6,000nits | 1500nits | 1500nits |
Foldable Angle | 360° | 360° | 360° | 360° |
Max Length of Control Box | 6m | 8m | 4m | 12m |
Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
Servicing | Front | Front | Front | Front |
IP Rating (Front/Rear) | IP 43 / IP 54 | IP 43 / IP 54 | IP 43 / IP 54 | IP 43 / IP 54 |
Certification | CE, FCC, TUV, RoHS | CE, FCC, TUV, RoHS | CE, FCC, TUV, RoHS | CE, FCC, TUV, RoHS |
Rental Screen FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer located in Shenzhen since 2005. You can come to vist our factory.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, sample needs 5-7 days, mass production time needs 2-3 weeks for order quantity more than.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2 years free warranty to our products.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Contact Person: Allen
Tel: +86 150 1702 2121
Fax: 86-755-2905-8213
