Product Details:
Payment & Shipping Terms:
|
| Physical Pitch: | 4.81mm | Panel Material: | Die-casting Aluminium |
|---|---|---|---|
| Module Size:: | 250mm*250mm | LED Chip: | Nationstar |
| IP Rating:: | IP65 Waterproof | Life Span: | 100,000 Hrs |
| Highlight: | IP65 Waterproof Outdoor Rental LED Display,4.81mm Pitch Outdoor Rental LED Display,65536 pixels outdoor rental led screen |
||
Outdoor Stage High Brighness IP65 Waterproof LED Display Screen for Performance
The best assistant of outdoor advertising. Suitable for stage, bank, promotion, exhibition,shopping mall, highway, station, KTV, stadium, airport and all outdoor places.
Product Features:
1. High quality,Advanced and proper system design,cost-effective.Display effect stable, can be completes fast fixed installation.
2. After waterproof test all the cabinets can ensure waterproof properties. The cabinet upper and lower with positioning holes and positioning column.
3. Independent rear cover and lock design, both moisture-proof,dustproof, and can facilitate fast debugging and maintenance cabinet.
4. Display mode:Right and left movement,zola curtain,right in the tabernacle of the congregation,pull open,blinking,namely show and so on.
5.Through program editor software,the words,images and videos can be editted just by clicking the mouse.The edited content is stored in the controller card,and will be broadcasted successively according to the program sheet automatically.
Parameter
| BOR-III-3 | BOR-III-4 | |
| Physical Pitch | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1921 | SMD2727 |
| Pixel Density | 65,536 pixels/m² | 43,264 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250/250*500 | 250*250/250*500 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 |
| NO. of Modules Per Panel (W*H) | 2*2 | 2*2 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum |
| Colors | 281Trillion | 281Trillion |
| Processing | 16 Bit | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 64*64 | 52*52 |
| Physical Resolution of Panel(W*H)(mm) | 128*128/128*256 | 104*104/104*208 |
| Single Cabinet Weight | 9/15kg/ panel | 9/15kg/ panel |
| Average Power Consumption | 75/150W/panel | 75/150W/panel |
| Max Power Consumption | 225/550W/panel | 225/550W/panel |
| Brightness | >60,00nits | >60,00nits |
| Viewing Angle | H:160°/ V:140° | H:160°/ V:140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear |
| IP Rating(Front/Rear) | IP 65/IP54 | IP 65/IP54 |
| Max Stacking | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 |
| Refresh Rate | >1,920 Hz | >1,920 Hz |
| Contrast Ratio | 4000:1 | 4000:1 |
Products Image
1. The order of the left-mounted screen body is as follows: from low to high, from the middle to the sides;
2. The number of a main power supply conventional carrying case is 15PCS, and it cannot be plugged in and out;
3. A network cable has a maximum load of 640,000 points, and the length of the network cable is preferably within 50m.
Fast refreshing, to swtich without water wave, no flash line, picture display is high definition, the picture display is the best effect. When comparing with ordinary LED display, Bako Vision's display doesn't have ghosting phenomenon, picture is clean and distinct, in addition, it is fast refreshing ratio without water wave. WHAY Display is to adopt high quality LED, to match black protection shade, the contrast ratio is 4000:1, which makes the picture display be more clear and colorful.
Better Grey Scale Grade
Stable and clear images, excellent dynamic showing, without scanning line, and the effect will be more nature if play point-to-point output image.

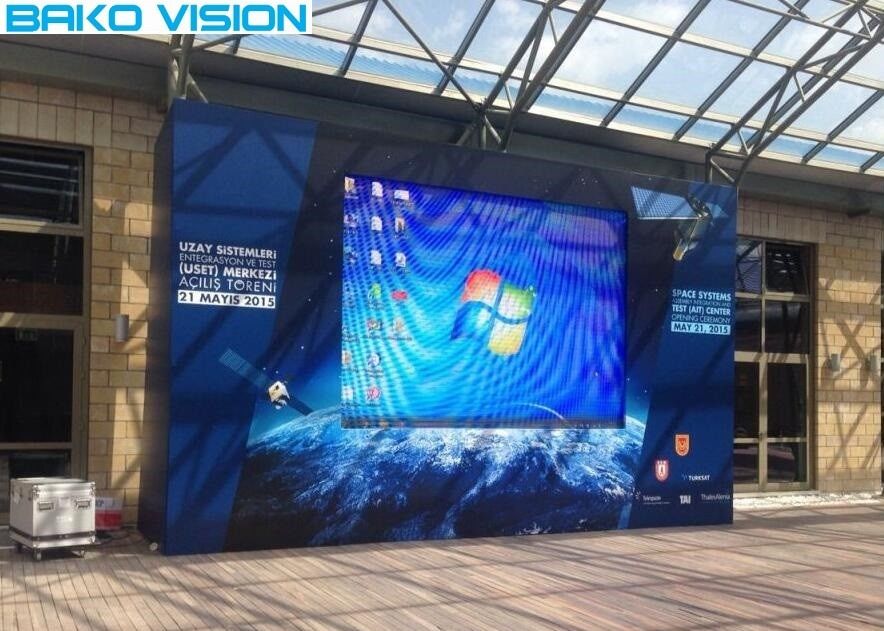

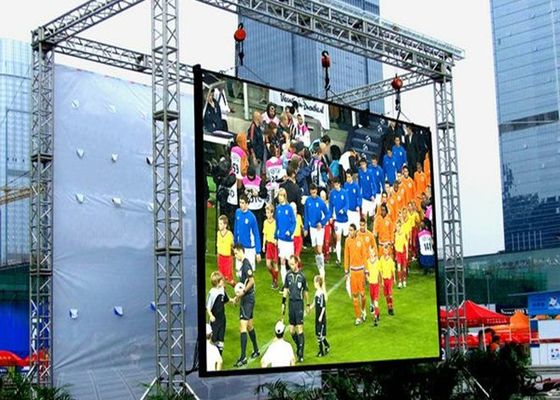

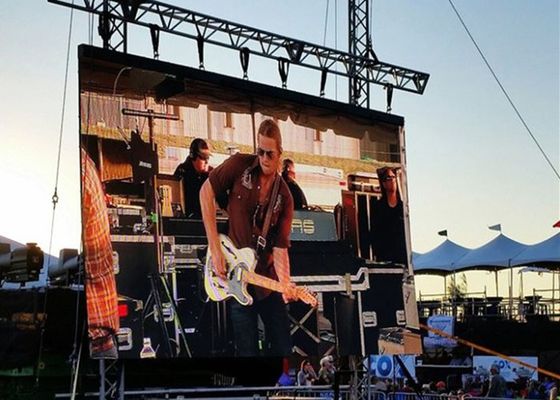

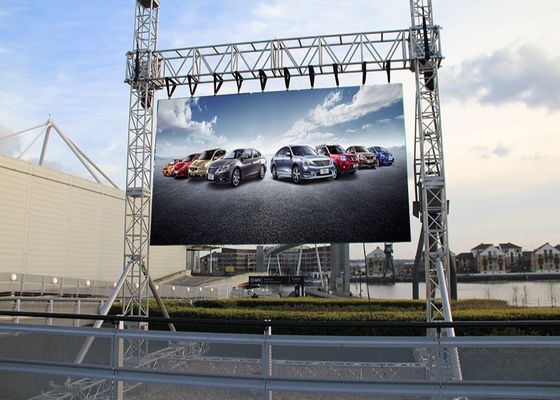

Application Case:
Widely used for shopping malls, entertainment venues, wedding hall, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, outdoor stadium, and a variety of public facilities and etc.
