Product Details:
Payment & Shipping Terms:
|
Pixels: | 4mm / 5mm | Screen Dimension: | Customized |
---|---|---|---|
Weight: | 40 Kg / ㎡ | Warranty: | 2 Years |
Refresh Rate: | 1920Hz | Certification: | CE,UL,FCC,ISO9001 |
Highlight: | P4 Outdoor Fixed Led Display,P5 Outdoor Fixed Led Display,9000 nits Outdoor Led Display Screen |
P4 P5 Waterproof Outdoor Fixed Led Digital Video Display Screen on building roof
Outdoor Fixed Screen Quick Details:
1, Pixel Pitch:4mm / 5 mm.
2, SMD LEDs, Wide viewing angle: 160°/ 140°.
3, Digital Process: 16bits.
4, Standard cabinet size: customized
5, Warranty: 2years.
6, Recommended minimum viewing distance: 5m.
Fixed Screen Description:
Bako Vision outdoor fixed led screen pixel include 4mm, 5mm, 6mm, 6.67mm,8mm, 10mm within these pixels, 8mm, 10mm are the most hot-selling and highest cost-effective series.
Outdoor Screen Application:
Bako Vision outdoor led electronic video display are widely installed on poles, single pole-mounted, dual pole-mounted, or tri-pole mounted, doing stage performance, wedding, car show etc.
Fixed LED Screen Features:
1, High IP Rating IP65, good waterproof and dust resistance, suitable for every condition.
2, Wide viewing angle 160° for broader reach, seamless in all direction with same image quality output, suitable for large gatherings.
3, High brightness from 6,000nits to 9,000nits, visible from every direction even face to direct sunshine.
4, Good heat dissipation with fans and using meanwell power supply, long lifespan.
Floor Screen Advantages:
1, High quality SMD led panels, stable and high durability.
2, Without ghosting, clear and clean.
3, High fresh rate up to 2,000Hz, high contrast to 4,000:1, vivid color.
Floor Screen Specification:
Physical Pitch | 4mm | 5mm |
Pixel Configuration | SMD1921 | SMD2727 |
Pixel Density | 65,536 pixels/Sqm | 43,264 pixels/Sqm |
Module Dimensions(W x H) (mm) | 320 x 160 | 320 x 160 |
Panel Dimensions (mm) | Customized | Customized |
Physical Resolution of Panel (W x H) | Customized | Customized |
Panel Material | Steel or Aluminum | Steel or Aluminum |
Processing | 16bit | 16bit |
Colours | 281 trillion | 281 trillion |
Contrast Ratio | 4,000 : 1 | 4,000 : 1 |
Average Power Consumption | 360 W /panel | 360W /panel |
Max Power Consumption | 900W /panel | 900 W /panel |
Operating Temp/Humidity | -20℃ - 60℃ / 10℃ - 60℃ | -20℃ - 60℃ / 10℃ - 60℃ |
Storage Temp/Humidity | -30℃ - 60℃ / 10℃ - 60℃ | -30℃ - 60℃ / 10℃ - 60℃ |
Refresh Rate | >1,920 Hz | >1,920 Hz |
Brightness | ≥6,000nits | ≥6,000nits |
IP Rating (Front/Rear) | IP 65 / IP 54 | IP 65 / IP 54 |
Certification | CCC, CE, ETL, RoHS | CCC, CE, ETL, FCC |

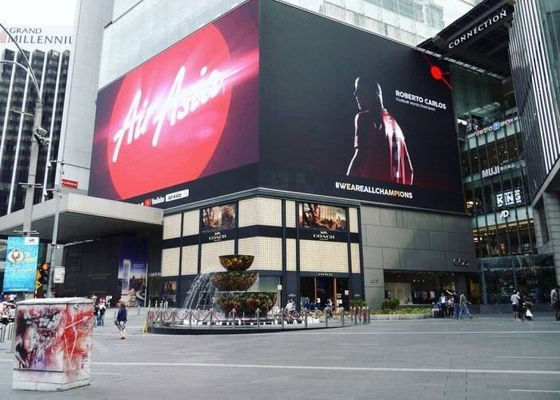

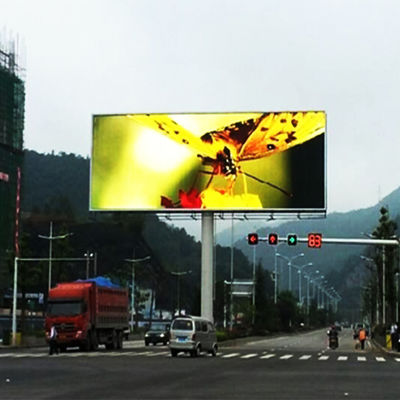

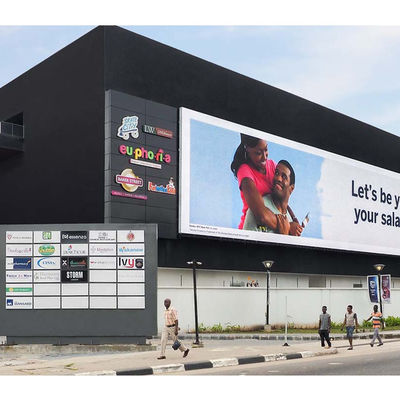

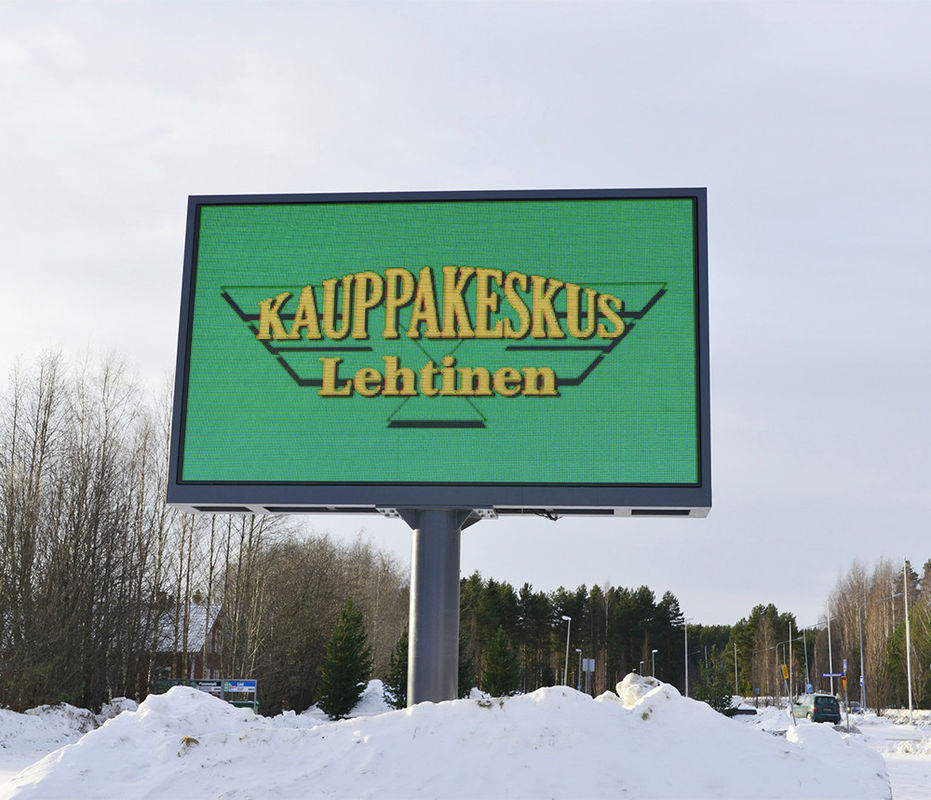

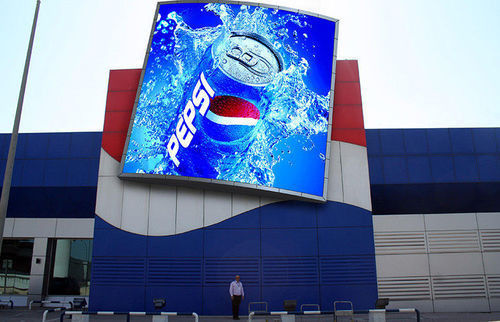

LED Screen Case:
FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer located in Shenzhen since 2005.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, sample needs 5-7 days, mass production time needs 2-3 weeks for order quantity more than.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2 years free warranty to our products.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
