Indoor Stage Rental LED Display High Brightness P3.91 Screen Die-Casting Aluminum
4-BIR-II.
Indoor Stage Rental LED Display Feature:
(1) Lightweight:The aluminum die-casting technology makes the single cabinet as light as 8KG, which is convenient for assembly and transportation.
(2) Seamless connection:The aluminum die-casting technology, together white the hight-percision CNCprocession, makes the precision reach±0.05mm so as to achieve seamless assembly.
(3) Ultra Thin: No need to disassemble the whole screen for maintenance. Each component can be detached individually for that purpose.
(4) Easy to maintain:No need to disassemble the whole screen for maintenance.Each component can be detached individually for that purpose.
(5) Noiseless:The aluminum structure requires no fan.Combined with the noiseless power supply,the cabinet is totally silent.
(6) Ghost canceling:Exquisite and clear pict quality with no ghost.Both upstream and downstream ghosts can be automatically canceled.
(7) Hight refresh rate:Over 1500Hz refresh rate to ensure the picture wrinkle-less,line-less and stable.
(8) Low brightness and Hight gray scale:16Bit gray scale to bring excellent performance when brightness is reduced to 20%.
(9) Easy to install: No need of other tools. It takes only 15 minutes for 2 workers to finish the 20 sqm installation.
(10) High IP: The IP65 insures the reliable operation in severe enrionment.
Specification
| Model |
BIR-II |
| Pixel Pitch |
3.91mm |
| Pixel Density |
65536 pixels/m2 |
| LED Type |
SMD2121 |
| LED Configuration |
1R1G1B |
| Cabinet Dimension |
500x500mm/500x1000mm |
| Cabinet Resolution |
128*128px/128*256px |
| Cabinet Weight |
8kg/14kg |
| Cabinet Material |
die casting aluminum |
| Ingress Protection(front/rear) |
IP40/IP21 |
| Brightness |
>6500nits |
| Viewing Angle(H/V) |
140°/140° |
| Driving Method |
1/10 Scan |
| Frame Refresh |
≥ 60Hz |
| Data Refresh Rate |
>1500Hz |
| Gray Scale |
16bit |
| Power Consumption(avg.) |
420w/m2 |
| Input Voltage |
AC 110/220±10%, 50~60Hz |
| Temperature(operating/storage) |
-20~50°C / -40~60°C |
| Humidity(operating/storage) |
10%~90%RH / 10%~85%RH |
| MTBF |
≥1000hrs |
| Life Span |
≥100000hrs |
| Pixel Failure |
<0.0003 |

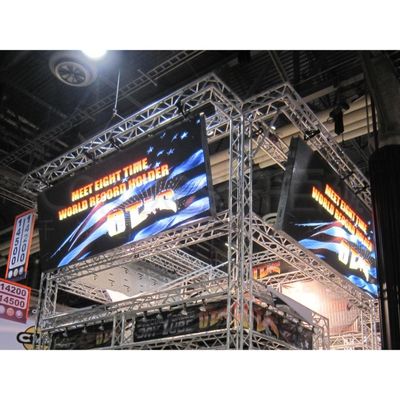

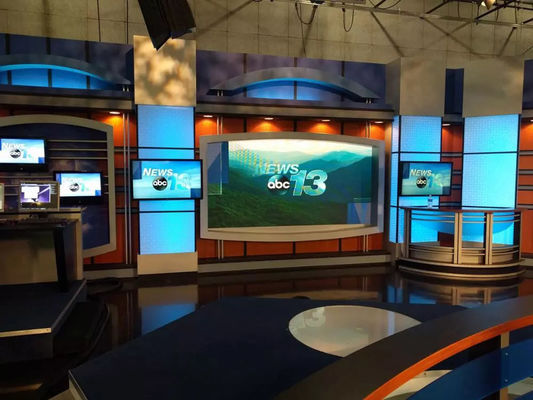

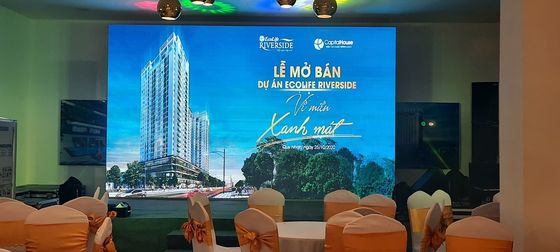

Application Areas:
Indoor advertising, digital billboards, advertising in big companies
Indoor Sports halls, fields, playgrounds.

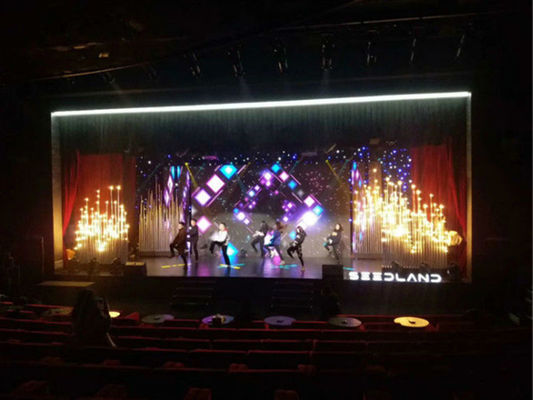

Indoor stage background
Facades of shopping malls, department stores, banks and car dealerships.
Architecture and social projects, information systems in cities.
Show-business, concerts, festivals, motor shows and other public events
Entertainment venues telecommunications industry and auction house.
Company Information:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holding enterprises (Stock Code: 871745), focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.
Q2. What is your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q8: How can I get technology support?
A:1,We will train in our factory and send video for showing. The training include system use, system maintenance and equipment protection.
