Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 10mm | Material: | Die-cutting Aluminum |
|---|---|---|---|
| Brightness: | ＞5,500 Nits | Refresh Rate: | 1920Hz |
| Certification: | CE,UL,FCC,ISO9001 | Cabinet Size: | 960 X 960 X 10mm |
| Highlight: | P10 Outdoor Fixed LED Display,P8 Outdoor Fixed LED Display,10mm LED Video Wall Screen |
||
P8 P10 Nationstar Lamp Energy Saving LED Billboard LED Video Wall Screen
LED Billboard Quick Details:
1, Pixel Pitch: 8mm.10mm
2, SMD LEDs, Wide viewing angle: 160°/ 140°.
3, Digital Process: 16bits.
4, Standard cabinet size: Customized, cabinet weight:65kg/Sqm.
5, Warranty: 2years.
6, Recommended minimum viewing distance: 10m.
LED Billboard Description:
Bako Vision outdoor led digital billboards pixel include 4.81mm, 6.67mm,8mm, 10mm, 16mm, within these pixels, 8mm,10mm are the most hot-selling and highest cost-effective series.
LED Billboard Application:
Bako Vision outdoor led electronic billboards are widely installed on poles, single pole-mounted, dual pole-mounted, or tri-pole mounted, doing advertisement or broadcasting for airport, bus station, railway, government, school, shopping mall, public places, advertising media and so on. Even we can install it in Trailer/truck as mobile screen.
Energy Saving LED Billboard Features:
1, High IP Rating IP65, good waterproof and dust resistance, suitable for every condition.
2, Wide viewing angle 160° for broader reach, seamless in all direction with same image quality output, suitable for large gatherings.
3, High brightness from 6,000nits to 9,000nits, visible from every direction even face to direct sunshine.
4, Good heat dissipation with fans and using meanwell power supply, long lifespan.
5, High fresh rate up to 2,000Hz, high contrast to 2,000:1, vivid color.
6,±10° adjustable, creative design to meet your requirement;
Energy Saving LED Billboard Specification:
| Physical Pitch | 8mm | 10mm |
| Pixel Configuration | SMD3535 | SMD3535 |
| Pixel Density | 15,625 pixels/Sqm | 10,000 pixels/Sqm |
| Module Dimensions(W x H) (mm) | 256 x 256 | 320 x 320 |
| Panel Dimensions (mm) | 1280 x 768 x 150 | 1280 x 960 x 150 |
| NO. of Modules Per Panel (W x H) | 5 x 3 | 4 x 3 |
| Physical Resolution of Module (W x H) | 32 x 32 | 32 x 32 |
| Physical Resolution of Panel (W x H) | 160 x 96 | 128 x 96 |
| Panel Material | Steal / Aluminum | Steal / Aluminum |
| Weight (kg/Sqm) | 40 | 45 |
| Processing | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion |
| Contrast Ratio | 2,000 : 1 | 2,000 : 1 |
| Average Power Consumption | 360 W / Sqm | 360 W / Sqm |
| Max Power Consumption | 900 W / Sqm | 900 W /panel |
| Average Power After Energy Saving | 90 W /Sqm | 90 W /Sqm |
| Max Power After Energy Saving | 230 W /Sqm | 230 W /Sqm |
| Brightness | >6,500 nits | >6,500 nits |
| Refresh Rate | >1,920 Hz | >1,920 Hz |
| Vertical Viewing Angle | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Rear | Front / Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 / IP 54 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/10 Scan | 1/8 Scan |

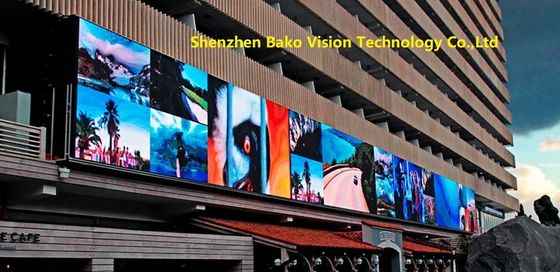

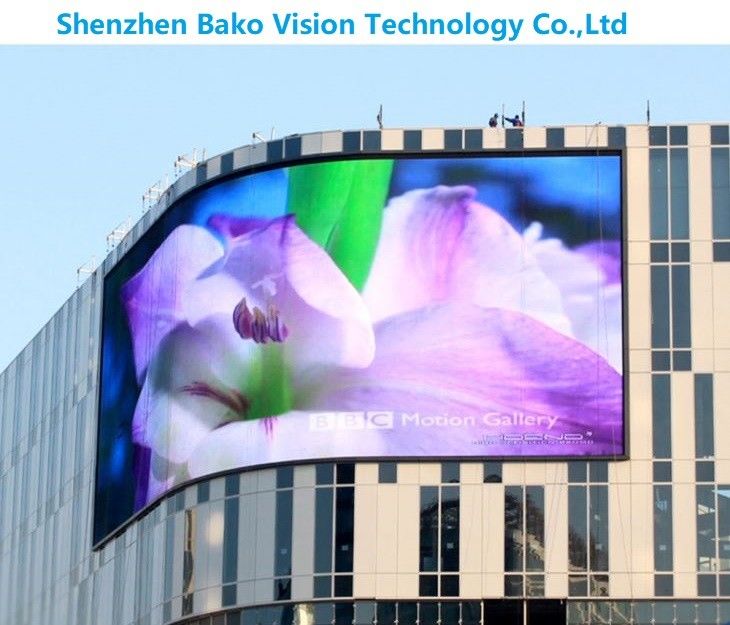

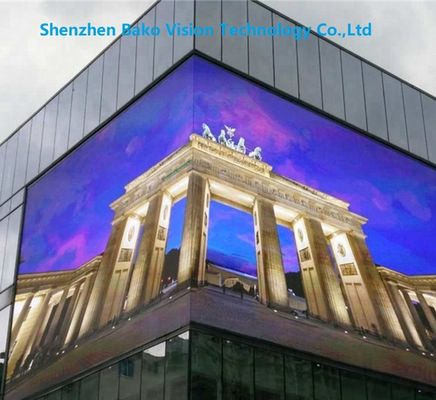

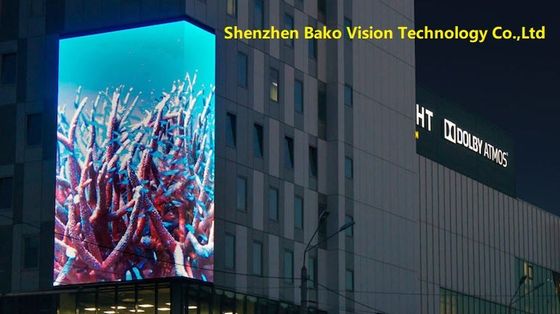

LED Billboard Case:
FAQ
Q1: What's the warranty of your LED Display Screen ?
A1: We have a 2-year warranty for our led display screen, and 100,000 hours life span of the led lamps.
Q2: What about your pre-sale service and post-sale service?
A2: For pre-sale service: We have a professional sales team and a 12 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project!
For post-sale service: We can instruct you how to use, adjust the screens, and change the boken modules with spare parts.
Also, we can send technicals to your country to solve problems. Mostly, our led display will not have big problems within warranty time!
Q3: Whats your payment term? How long it takes to delivery?
A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.
Our average Production time is 16 days, after receiving the deposit.
Q4: What's the control system?
A4: For synchronization control: We use Nova, Linsn Or Colorlight control system.
For asynchronous control: We use Onbon, or Xixun control system.
Q5: How can you ensure the led display product quality?
A5: Our led display screen quality is our core competence, for 14 years, what we rely on.
We have each stardard process to make quality products.
If any quality failures within warranty time, we will refund you by email.
