Product Details:
Payment & Shipping Terms:
|
| Product Name: | Wall LED Display | Pixel Pitch: | P2.604, P2.97, P3.91, P4.81 |
|---|---|---|---|
| Module Size: | 250x250mm, 250x500mm | Cabinet Size: | 500 X 500 X 80mm / 500 X 1000 X 80mm |
| Cabinet Material: | Die-casting Aluminum | Cabinet Weight: | 7 / 13 Kg/pc |
| Modular Design: | Yes | Refresh Rate: | ＞1,920 Hz |
| Contrast Ratio: | 5000:1 | Brightness: | 900-1,200 Nits |
| Average Power Consumption: | < 350 W/m2 | Max. Power Consumption: | < 780 W/m2 |
| Highlight: | P4.81 Indoor Rental LED Display,4.81mm Indoor Rental LED Display,4.81mm HD Flat LED Screen |
||
P3.91 P4.81 Portable LED Billboard Wall LED Display HD Flat LED Screen for Stage Exhibition Events
Rental LED display literally means the LED display for rental market. It is also called led display rental or led display for hire. Literally speaking, it should include all the LED displays which are rentable such as permanent installation LED billboard display for advertising, mobile LED display trailer for live broadcasting and even perimeter banner LED video display etc...
Key Features
1. The Lifting Handles with Humanity Design.
When lifting the cabinet people can feel more comfortable and relaxed.
Support 1 Person to Climb to Finish Maintenance.
If there are an issue with a cabinet, you can climb to this cabinet and take the back cover off from cabinet.
2. The cabinet is custom made and has very good precision.
CNC processing with tolerance within 0.02mm.
The module is 250*250mm, which can make LED display look like a complete screen.
3. Easy Take Out Back Cover.
Directly take out back cover is easy to change within 5 seconds.
4. 2 kinds of cabinet design Straight Cabinet and Curved Cabinet.
BIR-M Series
Indoor Rental LED Display
| Specifications | |
| Pixel Pitch(mm): | 2.604 / 2.97 / 3.91 / 4.81 |
| Cabinet Size(mm): | 500*500 / 500*1000 |
| Refresh Rate(Hz): | > 1920 Hz |
| Key Point: | Easy assemble and disassemble, light weight used for indoor |
Stage LED Screens Parameters
| Model | BIR-I-2X | BIR-I-2 | BIR-I-3 | BIR-I-4 |
| Physical Pitch | 2.604mm | 2.97mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 | SMD3528 |
| Pixel Density | 147,456 pixels/m² | 112,896 pixels/m² | 65,536 pixels/m² | 43,264 pixels/m² |
| Module Dimensions (W× H) (mm) |
500*125/500*125 | 250*250/250*500 | 250*250/250*500 | 250*250/250*500 |
| Panel Dimensions (mm) | 500*500*80 500*1000*80 |
|||
| Physical Resolution of Module | 192*48/192*168 | 84*84/64*168 | 64*64/64*128 | 40*40/40*80 |
| Single Cabinet Weight | 7/13KG/Panel | |||
| Panel Material | Die-Casting Aluminum | |||
| Processing | 16bit | 16bit | 16bit | 16bit |
| Colour Number | 281trillion | 281trillion | 281trillion | 281trillion |
| Contrast Ratio | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
| Average Power Consumption | 400 W/m2 | 400 W/m2 | 325 W/m2 | 310 W/m2 |
| Max Power Consumption | 800 W/m2 | 800 W/m2 | 780 W/m2 | 750 W/m2 |
| Operating Temperature | -10~60ºC/10~60ºC | |||
| Storage Temperature | -30~60ºC/10~60ºC | |||
| Refresh Rate | >1920Hz | >1920Hz | >1920Hz | >1920Hz |
| Brightness | 900-1200nits | 900-1200nits | 900-1200nits | 900-1200nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing angle | 140° | 140° | 140° | 140° |
| Max Stacking | 20/10 | 20/10 | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 | 20/10 | 20/10 |
| Expected Lifetime | 100,000hours | 100,000hours | 100,000hours | 100,000hours |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP40/IP21 | IP40/IP21 | IP40/IP21 | IP40/IP21 |

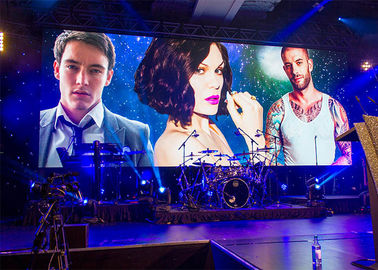

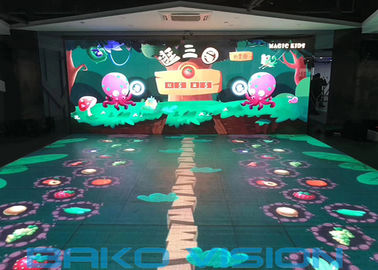

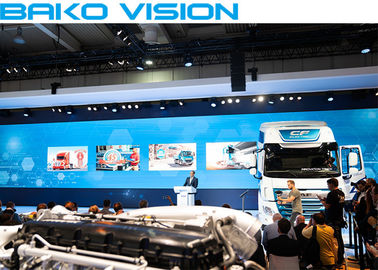

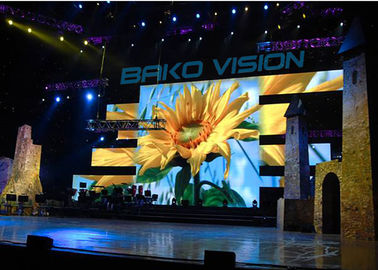

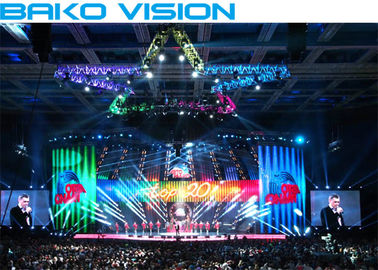

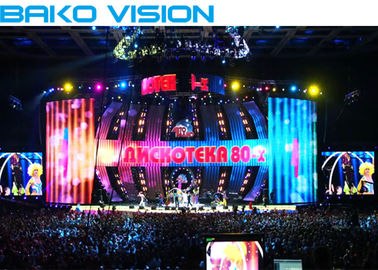

Rental LED Displays Applications
Advantages of Rental LED Display
1. Easy and fast to install and dismantle, saving working time and labor cost.
2. Can do creative set ups for specific events, flexible to different applications.
3. Robust, and reliable weight capacity when used a suspension, safety comes first.
4. Can be maintained easily if failure happens.
