Product Details:
Payment & Shipping Terms:
|
| Product Name: | Advertising Video Wall | Pixel Pitch: | P2.604, P2.97, P3.91, P4.81 |
|---|---|---|---|
| Module Size: | 250x250mm, 250x500mm | Cabinet Size: | 500 X 500 X 80mm / 500 X 1000 X 80mm |
| Cabinet Material: | Die-casting Aluminum | Cabinet Weight: | 7 / 13 Kg/pc |
| Modular Design: | Yes | Refresh Rate: | ＞1,920 Hz |
| Contrast Ratio: | 5000:1 | Brightness: | 900-1,200 Nits |
| Average Power Consumption: | < 350 W/m2 | Max. Power Consumption: | < 780 W/m2 |
| Highlight: | P2.604 Mobile LED Screen,P2.97 Mobile LED Screen,P2.604 Advertising Video Wall |
||

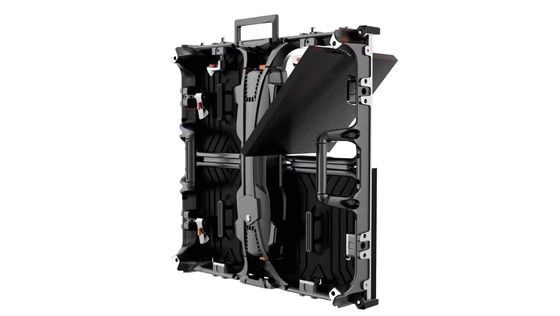

Mobile LED Screen Rental LED Panel Advertising Video Wall Exterior Display for Event Conference
Rental LED display literally means the LED display for rental market. It is also called led display rental or led display for hire. Literally speaking, it should include all the LED displays which are rentable such as permanent installation LED billboard display for advertising, mobile LED display trailer for live broadcasting and even perimeter banner LED video display etc...
Key Features
- Optimized PCB Board.
- High Stability Module.
- Practical Integrated Control Unit.

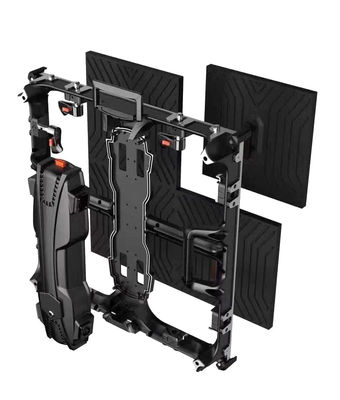

- Modular Design with Optional Compatibility.
- Fully Front or Rear Maintenance.
- Unique Handle Enables One Man Installation.
- Detailed User-Friendly Design.
- Universal Bracket For Multiple Application.
- Versatile Creative Installation.
BIR-M Series
Indoor Rental LED Display
| Specifications | |
| Pixel Pitch(mm): | 2.604 / 2.97 / 3.91 / 4.81 |
| Cabinet Size(mm): | 500*500 / 500*1000 |
| Refresh Rate(Hz): | > 1920 Hz |
| Key Point: | Easy assemble and disassemble, light weight used for indoor |
Stage LED Screens Parameters
| Model | BIR-I-2X | BIR-I-2 | BIR-I-3 | BIR-I-4 |
| Physical Pitch | 2.604mm | 2.97mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 | SMD3528 |
| Pixel Density | 147,456 pixels/m² | 112,896 pixels/m² | 65,536 pixels/m² | 43,264 pixels/m² |
| Module Dimensions (W× H) (mm) |
500*125/500*125 | 250*250/250*500 | 250*250/250*500 | 250*250/250*500 |
| Panel Dimensions (mm) | 500*500*80 500*1000*80 |
|||
| Physical Resolution of Module | 192*48/192*168 | 84*84/64*168 | 64*64/64*128 | 40*40/40*80 |
| Single Cabinet Weight | 7/13KG/Panel | |||
| Panel Material | Die-Casting Aluminum | |||
| Processing | 16bit | 16bit | 16bit | 16bit |
| Colour Number | 281trillion | 281trillion | 281trillion | 281trillion |
| Contrast Ratio | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
| Average Power Consumption | 400 W/m2 | 400 W/m2 | 325 W/m2 | 310 W/m2 |
| Max Power Consumption | 800 W/m2 | 800 W/m2 | 780 W/m2 | 750 W/m2 |
| Operating Temperature | -10~60ºC/10~60ºC | |||
| Storage Temperature | -30~60ºC/10~60ºC | |||
| Refresh Rate | >1920Hz | >1920Hz | >1920Hz | >1920Hz |
| Brightness | 900-1200nits | 900-1200nits | 900-1200nits | 900-1200nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing angle | 140° | 140° | 140° | 140° |
| Max Stacking | 20/10 | 20/10 | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 | 20/10 | 20/10 |
| Expected Lifetime | 100,000hours | 100,000hours | 100,000hours | 100,000hours |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP40/IP21 | IP40/IP21 | IP40/IP21 | IP40/IP21 |

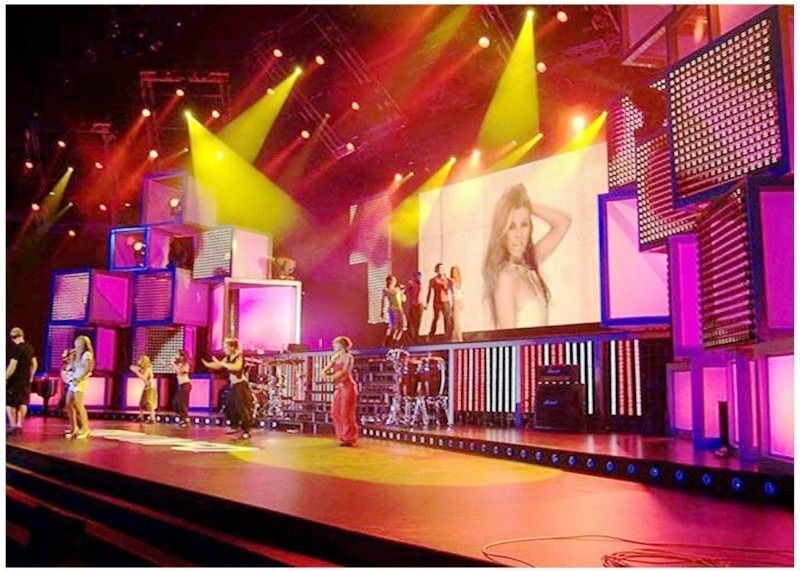

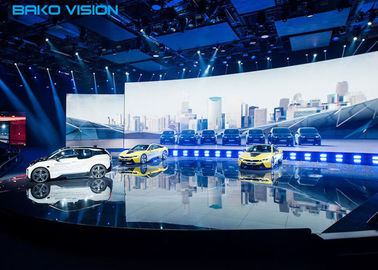

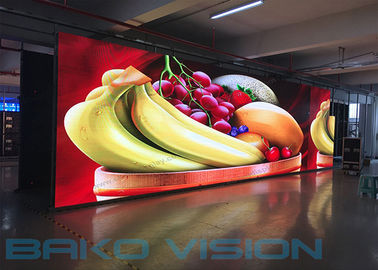

Rental LED Displays Applications
Why You Need a Visual Video Wall for Your Live Broadcast ?
With the development of sportsmanship and the e-sports industry, more and more live broadcasts of large-scale events have appeared in people’s field of vision.
For sports competitions and e-sports organizers, the following question is what they must think about:
How to attract people's attention in the increasingly rich personal leisure activities, and let them be willing to come to the event? Race, participate in a series of activities?
Therefore, if there is not enough detailed and visualized sound transmission method and excellent and luxurious activity design, then the audience is more willing to stay at home to watch the drama and drink Coke.
But BAKO VISION can provide you with an effective solution.
The live game is an outdoor event. Usually, with thousands of people (such as the world-famous Olympic Games, League of Legends All-Star Game), a huge rental LED screen can bring everyone closer, let them For the win or loss of the game, the feeling of “side by side.”
Once the loss of the large LED rental screen is lost, it will be difficult for them to generate a huge sense of collective honor on the spot through ordinary communication methods, not to mention the excellent impression of the event. In contrast, LED rental screens are more suitable for live broadcasts.
The LED rental screen is the best tool for you to create a close-up live broadcast of the national event.
About Bako Vision
FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.
Q2. What is your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery. Will show you the Professional Quality Control Photos before you pay the balance. Then you could see everything by your eyes before the shipment.
Q3. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty for your products.
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q7: How can I get technology support?
A:1. We could give you the free training in our factory, which include system use, system maintenance and equipment protection ect.
2. We could teach you by remotely if anything not clear.
