Product Details:
Payment & Shipping Terms:
|
| Product Name: | LED Poster Board | Pixel Pitch: | 1.875mm/2mm/2.5mm/3mm |
|---|---|---|---|
| Panel Size: | 640*1920mm | Panel Material: | Aluminum/Steel |
| Panel Thickness: | 33mm | Maintenance Way: | Front Service |
| Driving IC: | MBI5124IC | Brightness: | 1,000~3,500 Nits |
| Refresh Rate: | >1920Hz | Contrast Ratio: | 4000:1 |
| Warranty: | 2~5 Years | ||
| Highlight: | P2.5 Indoor LED Poster Screen,P2.5 Floor Standing Kiosk,3500 nits Indoor LED Poster Screen |
||

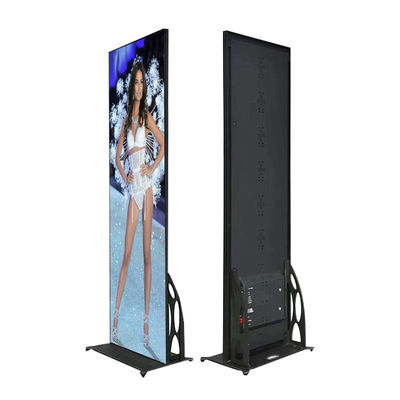

LED Poster Board P2.5 Indoor Screen Floor Standing Kiosk Wifi 4G Control
LED Poster Board has multiple mounting ways, side mounting, hanging, floor standing, etc. Install LED Poster Displays in-store, in shopping malls, halls, and bus stations, your ads must be eye-catching. Built-in media player allows for uploading ads videos or pictures via wifi or USB. LED Poster Display frame colors can be customized, and multiple screen modes for choices, which means custom your brand identity. LED Poster Board also known as advertising LED display screen, no one can deny that LED Poster Board is designed to be the advertising industry's new star, all to help you build unique and impressive brand experiences!
BP Series (BP.pdf)
Poster LED Screen
| Specifications | |
| Pixel Pitch(mm): | 1.875 / 2 / 2.5 / 3 |
| Cabinet Material: | Die-casting aluminum |
| Refresh Rate(Hz): | > 1920 Hz |
| Key Point: | Lightweight design, easy to move and carry, plug to play |
Floor Standing LED Kiosk Features
- HD detailed, poster-like indoor LED poster board.
- Extremely thin and light, without reducing the display effect of high brightness and fine.
- Bring your audio, rich in features.
- A variety of types, all kinds of scenarios can be adapted.
- Clip-on frame, pull-out design, easy installation, and maintenance.
Mirror LED Screen Descriptions
1. Smart Split Screen, Various Uses - Various usage, optional ways of the split screen as you like, support HD pictures or videos split screen display mode, even mixed display mode.
2. Rapid Release, Smart Control - Wireless control, program edit, split screen, etc via phone, or computer at your available time.
3. USB Version One-click Loop Playback - Automatic identified system: Plug into a USB driver or SD card can realize automatically loop as soon as booting.
4. Ultra Thin, Preciouly Simple - Extremely simple design, lightweight to realize truly ultra-thin and portable.
Digital Media Player Parameters
| Pixel Pitch | 1.875mm | 2.5mm | 2.5mm Pro | 3.0mm |
| Pixel Configuration | SMD 1515 | SMD 2121 | SMD 2121 | SMD 2121 |
| Pixel Density | 279,936pixels/m² | 169,344pixels/m² | 157,464pixels/m² | 110,889pixels/m² |
| Module Dimension(mm) | 160 × 160 | 320 × 160 | 280 × 210 | 192 × 192 |
| Whole Set Dimension(mm) | 640 × 1920 × 35 | 640 × 1920 × 35 | 571× 1897 × 33 | 576 × 1920 × 35 |
| Resolution of Module | 84 x 84 | 64× 64 | 108× 81 | 64 × 64 |
| Resolution of the Whole Set | 336 × 1010 | 256 × 768 | 216 × 729 | 192× 640 |
| Panel Material | Aluminum / Steel | |||
| Cabinet Weight | 32 kg | 32 kg | 28 kg | 32 kg |
| Gray Level | 16 bit(281 trillion colors) | |||
| Average Power Consumption | 250W/Set | 200W/Set | 100 W/ Set | 200 W/ Set |
| Max Power Consumption | 750W/Set | 600W/Set | 390 W / Set | 600 W / Set |
| Driving Method | 1/32 Scan | 1/32 Scan | 1/27 Scan | 1/32 Scan |
| Brightness | >1,000 nits | >1,000 nits | >1,000/3500 nits | >1,000 nits |
| Refresh Rate | ≥1,920 Hz | ≥1,920 Hz | ≥3,840 Hz | ≥1,920 Hz |
| Viewing Angle(V/H) | 160°/ 140° | |||
| Operating Temp/Humidity | -10ºC~60ºC / 10%~60% | |||
| Storage Temp/Humidity | -30ºC~60ºC / 10%~60% | |||
| IP Rating (Front/Rear) | IP40 | |||
| Expected Lifetime | 100,000 Hrs | |||
Advertising LED Signage Applications
Variously applied in Shopping malls/Stores/Supermarkets/Theaters/Hotels/Car 4s/Real Estates, etc.
FAQ on LED Poster Board
1. Do you still need to assemble it after buying it? Is there any guidance?
The 'upright' LED poster board does not need to be assembled; the LED screen manufacturer will ship the finished product, and you receive it and plug and play.
However, if a type such as “hanging” is purchased, separate instructions for installation will be required.
2. How can I repair a broken LED poster board?
Simply pull out the clip on one side of the screen and remove the corresponding module.
3. How does the LED poster board sound work?
All you need to do is play the video file with the accompaniment, and the LED poster screen will automatically play the sound without separate processing.
4. What control system is used for the LED poster board? What to look out for in a single screen and a spliced screen?
BAKO VISION offers this product with the Novastar T1 system and the Novastar T6 system.
The difference is that:
Under the T1 system, support for single use.
Under the T6 system, 2-8 units can be spliced by adding an HDMI HD cable between the LED poster board.
About Bako Vision
FAQ:
Q1. Are you a trading company or manufacturer?
A: We are a professional led screen manufacturer.
Q2. What are your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery. Will show you the Professional Quality Control Photos before you pay the balance. Then you could see everything with your eyes before the shipment.
Q3. How about your delivery time?
A: Generally, the sample needs 3-5 days, and mass production time needs 1-2 weeks for order quantity more than.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Do you offer a guarantee for the products?
A: Yes, we offer a 2-5 years warranty for your products.
Q6: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive prices to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q7: How can I get technical support?
A: 1. We could give you free training in our factory, which include system use, system maintenance and equipment protection, etc.
2. We could teach you remotely if anything is not clear.
