Product Details:
Payment & Shipping Terms:
|
| Product Name: | LED Curtain Screen | Physical Pitch: | 15.625mm, 31.25mm, 25mm |
|---|---|---|---|
| Cabinet Material: | Aluminum | IP Rating: | IP65 |
| Maintenance Way: | Front & Rear | Refresh Rate: | 3840Hz |
| Brightness: | 10,000nits | Transparency: | 35%-70% |
| Gray Scale: | 16 Bit | Colours: | 281 Trillion |
| Contrast Ratio: | 2,000:1 | ||
| Highlight: | 15.625mm LED Curtain Screen,10000 nits LED Curtain Screen,10000 nits Led Curtain Video Wall |
||

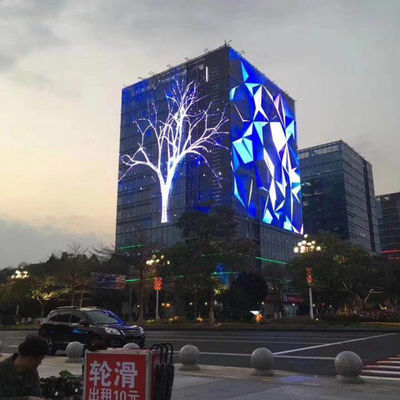

LED Curtain Screen Transparent Led Curtain Video Wall For Building Advertising
LED Curtain Screen Transparent LED Display Hanging Video Wall for Building Advertising
LED curtain screen is a kind of LED display used in outdoor commercial advertising. It is composed of strips in the shape of LED curtain screen, the appearance of a hollow, grid format, so it is also known as stips LED screen, grid LED screen, hollow LED screen, etc. His main features are lightweight, light transparency, small wind load, which can greatly reduce the weight pressure of the installation wall.
BOC Series (BOC.pdf)
Outdoor Curtain LED Display
| Specifications | |
| Pixel Pitch(mm): | 15.625 / 25 / 31.25 |
| Cabinet Size(mm): | 500*1000 / 1000*500 |
| Refresh Rate(Hz): | 3840 Hz |
| Key Point: | High Transparency, High Brightness |
Key Features
- 500x1000mm Fixed Cabinet Size.
- Front and Back Service.
- DIP Technology More Durable.
- Super Light Weight of the Cabinet.
- Water Proof IP67 Rate.
LED Curtain Screen Parameters
| BOC-15.625 (double line) | BOC-15.625 | BOC-3115 | BOC-25 | BOC-31 | |
| Physical Pitch (mm)(H*V) | 15.625 | 15.625 | 31.25*15.6 | 25 | 31.25*31.25 |
| Pixel Density (pixels/m2) | 4,096 | 4096 | 2,048 | 1,600 | 1,024 |
| Module Size (W*H)(mm) | 23.8*1000 | 1000*10 | 10*1000 | 10*1500 | 1000*10 |
| Module Resolution (H*V) | 2*64 | 1*64 | 64*1 | 1*60 | 32*1 |
| Cabinet Size (W*H)(mm) | 500*1000 | 1000*500 | 500*1000 | 500*1500 | 500*1000 |
| Panel Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Cabinet Weight (kg/m2) | 13.5 | 7.5 | 7.5 | 9 | 9 |
| Average Power Consumption (W/m2) | 272 | 272 | 300 | 360 | 340 |
| Max. Power Consumption (W/m2) | 680 | 680 | 600 | 480 | 450 |
| Brightness(nits) | 9,000 | 10,000 | 10,000 | 10,000 | 10,000 |
| Refresh Rate (Hz) | 3840 | ||||
| Maintenance Way | Front & Rear | ||||
| Transparency | 35% | 70% | 68% | 60% | 68% |
| IP Rating (Front/Rear) | IP65 | ||||
Transparent LED Dislay Installation Ways
Five Advantages Have to Choose A Outdoor Curtain Screen
1. Lightweight, simple structure - quick installation, easy maintenance.
2. High efficiency, low power consumption - energy saving, and environmental protection.
3. High adaptability - excellent environmental tolerance.
4. Lighting - solve the trouble of "screen without light."
5. Stable and reliable - rigorous and thoughtful design of the interior of the case.
