Product Details:
Payment & Shipping Terms:
|
| Product Name: | LED Video Panel | Pixel Pitch: | P2.604, P2.97, P3.91, P4.81 |
|---|---|---|---|
| Module Size: | 250x250mm, 250x500mm | Cabinet Size: | 500 X 500 X 80mm / 500 X 1000 X 80mm |
| Cabinet Material: | Die-casting Aluminum | Cabinet Weight: | 7 / 13 Kg/pc |
| Modular Design: | Yes | Refresh Rate: | 3840 Hz |
| Contrast Ratio: | 4000:1 | Brightness: | 900-1,200 Nits |
| Average Power Consumption: | < 350 W/m2 | Max. Power Consumption: | < 780 W/m2 |
LED Video Panel Rental LED Displays Audio Visual for Big Stage Background
With the fast development of the economy, people are concerned more about enriching their spiritual life, and small TV and LCD can't meet their needs anymore. Many entertainment activities and events are organized every day, such as DJ clubs, parties, concerts, and conference meeting events.
A big rental LED Video Panel makes the whole activity and events shine with its uniform color vivid video effect, high brightness, broad viewing face and perspective, and live broadcast available characteristics.
BAKO VISION focuses on providing high-quality indoor/outdoor led video panels from P2.604 to P5.95 for customers in the media & entertainment industries and has done many successful projects all over the world.
BIR-M Series
Indoor Rental LED Display
| Specifications | |
| Pixel Pitch(mm): | 2.604 / 2.97 / 3.91 / 4.81 |
| Cabinet Size(mm): | 500*500 / 500*1000 |
| Refresh Rate(Hz): | > 1920 Hz |
| Key Point: | Easy assemble and disassemble, light weight used for indoor |

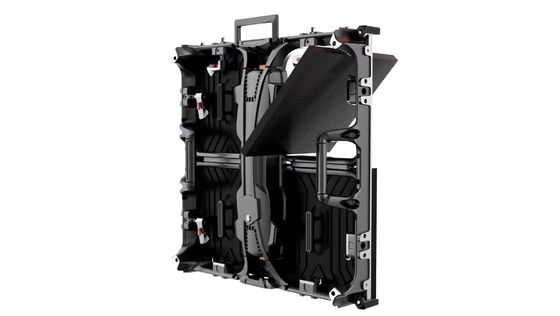

LED Video Panel Key Features
1. The Lifting Handles with Humanity Design.
When lifting the cabinet people can feel more comfortable and relaxed.
Support 1 Person to Climb to Finish Maintenance.
If there is an issue with a cabinet, you can climb to this cabinet and take the back cover off the cabinet.

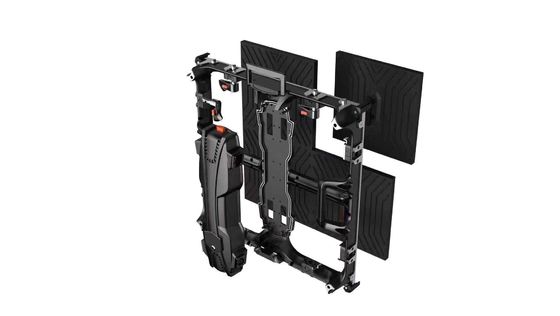

2. The cabinet is custom-made and has very good precision.
CNC processing with tolerance within 0.02mm.
The module is 250*250mm, which can make the led video wall look like a complete screen.

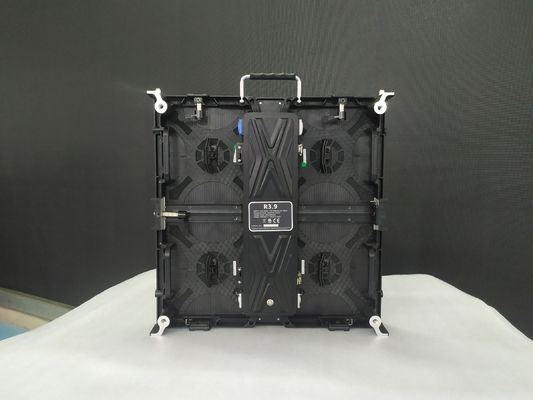

3. Easy Take Out Back Cover.
Directly taking out the back cover is easy to change within 5 seconds.
4. 2 kinds of cabinet design Straight Cabinet and Curved Cabinet.
Indoor LED Screens Parameters
| Model | BIR-I-2X | BIR-I-2 | BIR-I-3 | BIR-I-4 |
| Physical Pitch | 2.604mm | 2.97mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 | SMD3528 |
| Pixel Density | 147,456 pixels/m² | 112,896 pixels/m² | 65,536 pixels/m² | 43,264 pixels/m² |
| Module Dimensions (W× H) (mm) |
500*125/500*125 | 250*250/250*500 | 250*250/250*500 | 250*250/250*500 |
| Panel Dimensions (mm) | 500*500*80 500*1000*80 |
|||
| Physical Resolution of Module | 192*48/192*168 | 84*84/64*168 | 64*64/64*128 | 40*40/40*80 |
| Single Cabinet Weight | 7/13KG/Panel | |||
| Panel Material | Die-Casting Aluminum | |||
| Processing | 16bit | 16bit | 16bit | 16bit |
| Colour Number | 281trillion | 281trillion | 281trillion | 281trillion |
| Contrast Ratio | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
| Average Power Consumption | 400 W/m2 | 400 W/m2 | 325 W/m2 | 310 W/m2 |
| Max Power Consumption | 800 W/m2 | 800 W/m2 | 780 W/m2 | 750 W/m2 |
| Operating Temperature | -10~60ºC/10~60ºC | |||
| Storage Temperature | -30~60ºC/10~60ºC | |||
| Refresh Rate | >1920Hz | >1920Hz | >1920Hz | >1920Hz |
| Brightness | 900-1200nits | 900-1200nits | 900-1200nits | 900-1200nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing angle | 140° | 140° | 140° | 140° |
| Max Stacking | 20/10 | 20/10 | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 | 20/10 | 20/10 |
| Expected Lifetime | 100,000hours | 100,000hours | 100,000hours | 100,000hours |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP40/IP21 | IP40/IP21 | IP40/IP21 | IP40/IP21 |

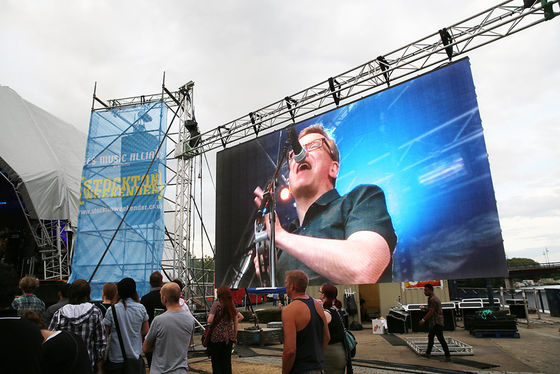

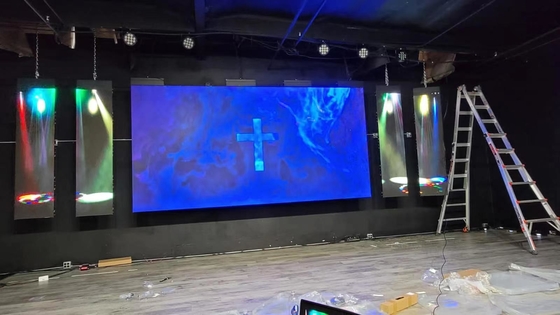

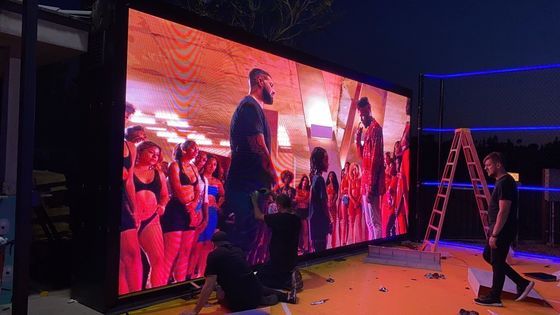

Rental LED Displays Applications
Why do You Need a LED Video Panel for Your Live Broadcast?
With the development of sportsmanship and the e-sports industry, more and more live broadcasts of large-scale events have appeared in people’s fields of vision.
For sports competitions and e-sports organizers, the following question is what they must think about:
How do attract people's attention to the increasingly rich personal leisure activities, and let them willing to come to the event? Race, participate in a series of activities?
Therefore, if there is not enough detailed and visualized sound transmission method and excellent and luxurious activity design, then the audience is more willing to stay at home to watch the drama and drink Coke.
But BAKO VISION can provide you with an effective solution.
The live game is an outdoor event. Usually, with thousands of people (such as the world-famous Olympic Games, League of Legends All-Star Game), a huge rental LED video panel can bring everyone closer, let them For the win or loss of the game, the feeling of “side by side.”
Once the loss of the largely led video panel is lost, it will be difficult for them to generate a huge sense of collective honor on the spot through ordinary communication methods, not to mention the excellent impression of the event. In contrast, rental-led video panels are more suitable for live broadcasts.
The led video panel is the best tool for you to create a close-up live broadcast of the national event.
