Product Details:
Payment & Shipping Terms:
|
| Product Name: | Poster LED Display | Pixel Pitch: | 1.875mm/2mm/2.5mm/3mm |
|---|---|---|---|
| Panel Size: | 640*1920mm | Panel Material: | Aluminum/Steel |
| Panel Thickness: | 33mm | Maintenance Way: | Front Service |
| Driving IC: | MBI5124IC | Brightness: | 1,000~3,500 Nits |
| Refresh Rate: | >1920Hz | Contrast Ratio: | 4000:1 |
| Warranty: | 2~5 Years | ||
| Highlight: | 1.875mm Indoor LED Poster Display,2mm Indoor LED Poster Display,p3 smart led poster |
||

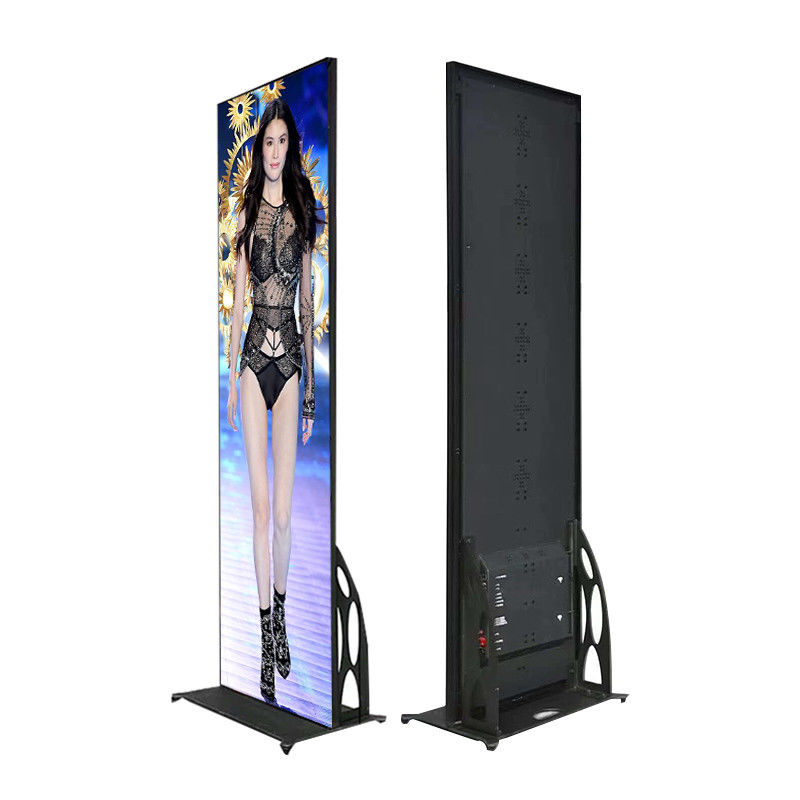

Poster LED Display Portable Digital Screen New Intelligent Terminal Advertising Player
BP Series (BP.pdf)
Poster LED Screen
| Specifications | |
| Pixel Pitch(mm): | 1.875 / 2 / 2.5 / 3 |
| Cabinet Material: | Die-casting aluminum |
| Refresh Rate(Hz): | > 1920 Hz |
| Key Point: | Light weight design, easy to move and carry, plug to play |
Portable Digital Screen Features
1. Smart Split Screen, Various Uses - Various usage, optional ways of split screen as you like, support HD pictures or videos split screen display mode, even mixed display mode.
2. Rapid Release, Smart Control - Wireless control, program edit, split screen etc via phone, computer at your available time.
3. USB Version One-click Loop Playback - Automatic identified system: Plug into USB driver or SD card can realize automatically loop as soon as booting.
4. Ultra Thin, Preciouly Simple - Extremely simple design, light weight to realize turely ultra-thin and portable.
Indoor Advertising Player Parameters
| Pixel Pitch | 1.875mm | 2.5mm | 2.5mm Pro | 3.0mm |
| Pixel Configuration | SMD 1515 | SMD 2121 | SMD 2121 | SMD 2121 |
| Pixel Density | 279,936pixels/m² | 169,344pixels/m² | 157,464pixels/m² | 110,889pixels/m² |
| Module Dimention(mm) | 160 × 160 | 320 × 160 | 280 × 210 | 192 × 192 |
| Whole Set Dimention(mm) | 640 × 1920 × 35 | 640 × 1920 × 35 | 571× 1897 × 33 | 576 × 1920 × 35 |
| Resolution of Module | 84 x 84 | 64× 64 | 108× 81 | 64 × 64 |
| Resolution of Whole Set | 336 × 1010 | 256 × 768 | 216 × 729 | 192× 640 |
| Panel Material | Aluminum / Steel | |||
| Cabinet Weight | 32 kg | 32 kg | 28 kg | 32 kg |
| Gray Level | 16 bit(281 trillion colors) | |||
| Average Power Consumption | 250W/Set | 200W/Set | 100 W/ Set | 200 W/ Set |
| Max Power Consumption | 750W/Set | 600W/Set | 390 W / Set | 600 W / Set |
| Driving Method | 1/32 Scan | 1/32 Scan | 1/27 Scan | 1/32 Scan |
| Brightness | >1,000 nits | >1,000 nits | >1,000/3500 nits | >1,000 nits |
| Refresh Rate | ≥1,920 Hz | ≥1,920 Hz | ≥3,840 Hz | ≥1,920 Hz |
| Viewing Angle(V/H) | 160°/ 140° | |||
| Operating Temp/Humidity | -10ºC~60ºC / 10%~60% | |||
| Storage Temp/Humidity | -30ºC~60ºC / 10%~60% | |||
| IP Rating (Front/Rear) | IP40 | |||
| Expected Lifetime | 100,000 Hrs | |||
Intelligent Terminal Applications
Variously applied in Shopping Mall/Stores/Supermarket/Theater/Hotel/Car 4s/Real Estates, etc..
· Shopping mall
· Theaters
· Hotel
· Airport
· High-speed rail stations
· Store windows
· Expo and exhit venues
· Brand stores
· Performance venues
· Large-scale conference rooms
Flight Case Packages
About Bako Vision
FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.
Q2. What is your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery. Will show you the Professional Quality Control Photos before you pay the balance. Then you could see everything by your eyes before the shipment.
Q3. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty for your products.
Q6: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q7: How can I get technology support?
A: 1. We could give you the free training in our factory, which include system use, system maintenance and equipment protection ect.
2. We could teach you by remotely if anything not clear.
