Product Details:
Payment & Shipping Terms:
|
| LEDs: | SMD2121 | Pixel Pitch: | 4mm |
|---|---|---|---|
| Servicing: | Front/Rear | Viewing Angle: | 160°/140° |
| Refresh Rate: | ＞1920Hz | Contrast Ratio: | 4000:1 |
| Highlight: | SMD2121 Indoor Fixed LED Display,4mm Indoor Fixed LED Display,SMD2121 Wall Mounted LED Display |
||
4mm SMD2121 Indoor Fixed LED Display Wall Mounted TV Screen For Concert
Fixed Led Video Wall Quick Details:
1, Pixel Pitch: 4mm
2, Full colors: 281trillions.
3, SMD, Wide viewing angle: 160°/ 140°.
4, Standard cabinet size: Customized, weight: 28kg/m2.
5, Recommended minimum viewing distance: 5m.
6, Warranty: 2 years.
Fixed Led Video Wall Description :
Bako Vision indoor LED Wall include permanent installation indoor electronic led display, the pixel various from 3mm, 4mm, 5mm, 6mm.You can use it as billboard or Led Wall in Concert hall or shop and so on.
Fixed Led Video Wall Features:
1, High brightness from 900 nits to 1,200nits, visible from every direction indoor.
2, SMD LEDs ensure large viewing angle, up to 160° horizontally and 140° vertically.
Image no distortion, no color cast in any angle within this range.
3, Cabinet design lightweight, Front access can be easy to install and maintanence.
4, Digital process: 16bits, High contrast ratio 4000:1, vivid color.
5, You can choose front service or back service, it's easy for maintenance
Fixed Led Video Wall Specification:
| Physical Pitch | 4mm |
| Pixel Configuration | SMD2121 |
| Pixel Density | 62,500 pixels/Sqm |
| Module Dimensions(W x H) (mm) | 256 x 128 |
| Panel Dimensions (mm) | 1024 x 768 |
| NO. of Modules Per Panel (W x H) | 4 x 6 |
| Physical Resolution of Module (W x H) | 64 x 32 |
| Physical Resolution of Panel (W x H) | 256 x 192 |
| Panel Material | Steel / Aluminum |
| Scan Method | 1/16 Scan |
| Gray Scale | 16bit |
| Colours | 281 trillion |
| Contrast Ratio | 4,000 : 1 |
| Average Power Consumption | 120 W /Sqm |
| Max Power Consumption | 400 W /Sqm |
| Operating Temp/Humidity | -10ºC - 60ºC / 10% - 60% |
| Storage Temp/Humidity | -30ºC - 60ºC / 10% - 60% |
| Refresh Rate | >1,920Hz |
| Brightness | 900-1,200nits |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 140° |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front / Rear |
| IP Rating (Front/Rear) | IP 21 |

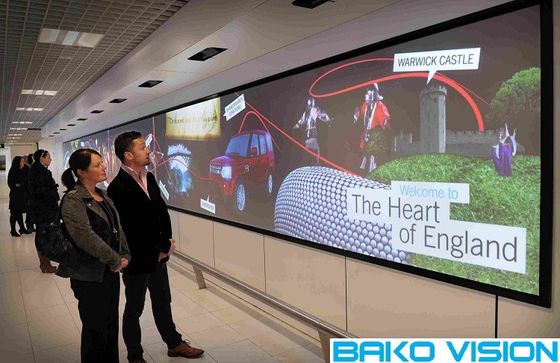

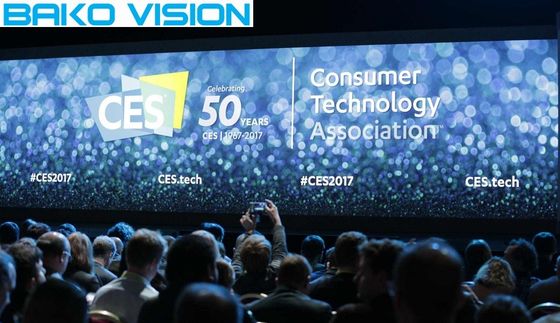

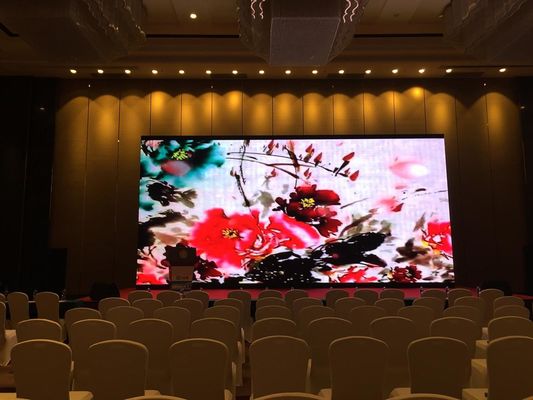

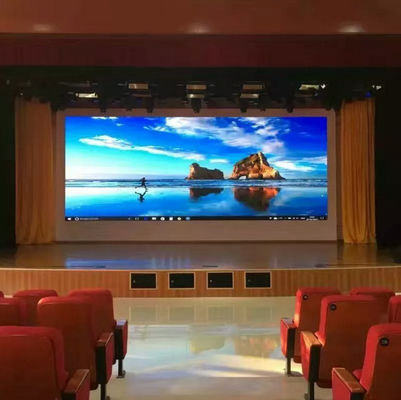

Fixed Led Video Wall Case:
Services
1) We can offer customization service for customized products and can provide onsite installation and testing service.
2) We provide 2 years warranty and free repair service for our products sold.
3) We also provide free training to customers' engineer.
4) Regarding the production of products, from raw materials to every process, we have strict production and testing process to ensure that our products under the quality inspection system standards.
5) At the same time,we have an aging testing of 72 hours as well as waterproof test of outdoor led display to ensure the high quality of the product.
Tips
1. Payment:We accept the L/C,T/T,Western Union.
2. Shipment: We will ship within 20-25 working days after you placed the order, but the specific delivered time will be affected by the shipping company and shipping details.
3. Package:We usually pack the product in a wooden box or flight case.
