| Product Name: | Stage Rental LED Display | Pitch Pixel: | P3.91, P5.2, P6.25, P8.928 |
|---|---|---|---|
| Module Dimension (WxH): | 250*250mm | Cabinet Dimension (WxH): | 500*1000mm |
| Cabinet Material: | Aluminum | Cabinet Weight: | 25kg/pc |
| Brightness: | 2000 Nits - 4500 Nits | Maintenance Way: | Front |
| IP Rating: | IP65/IP54 | Life Span: | 100,000 Hours |
| Warranty: | 2-5 Years | ||
| Highlight: | 4500 nits Rental LED Stage Screen,2000 Nits Rental LED Stage Screen,8.928mm Rental LED Stage Screen |
||
Rental LED Stage Screen Interactive LED Panel Dance Floor Video Tile Display
BD Series (BD.pdf)

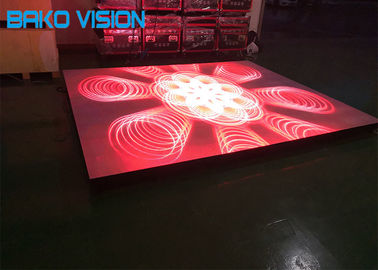

Dance Floor LED Display
| Specifications | |
| Pixel Pitch: | 3.91mm / 5.2mm / 6.25mm / 8.928mm |
| Bearing Capacity: | 1.8 tons per square meter |
| Refresh Rate: | > 1920Hz |
| Key Point: | It is attracting more traffics, have fun with it |
Key Features
· Same Operation Way With the Regular LED Screen.
· Easy To Install And Maintenance.
· Very Durable, is Able to Support The SUV Car On it.
· Interactive And Non-interactive Design Accepted.
· High Brightness and Good Visual Display Performance.
Rental Stage LED Screens Parameters
| BD-3 | BD-5 | BD-6 | BD-8 | |
| Physical Pitch | 3.91 mm | 5.2 mm | 6.25 mm | 8.928 mm |
| Pixel Configuration | SMD 1921 | SMD 1921 | SMD 2727 | SMD 3535 |
| Pixel Density | 65,536 pixels/m² | 36,864 pixels/m² | 25,600 pixels/m² | 25,600 pixels/m² |
| Module Dimensions (W × H) (mm) | 250 × 250 | |||
| Panel Dimensions (mm) | 500 × 1000 | |||
| Physical Resolution of Module (W × H) | 64 x 64 | 48 x 48 | 40 x 40 | 28 x 28 |
| Physical Resolution of Panel (W × H) | 128 x 256 | 96 x 192 | 80 x 160 | 56 x 112 |
| Panel Material | Aluminum | |||
| Single Cabinet Weight | 20 kg/panel | 25 kg/panel | 24 kg/panel | 25 kg/panel |
| ray Scale | 16 bit | |||
| Colours | 281 trillion | |||
| Contrast Ratio | 4,000 : 1 | |||
| Average Power Consumption | 300 W / m² | |||
| Max Power Consumption | 880 W / m² | 880 W / m² | 600 W / m² | 600 W / m² |
| Operating Temp/Humidity | -10℃-60℃ / 10%-60% | |||
| Storage Temp/Humidity | -30℃-60℃ / 10%-60% | |||
| Refresh Rate | >1,920 Hz | |||
| Brightness | 2,500 nits | 2,000 nits | 4,500 nits | 4,500 nits |
| Horizontal Viewing Angle | 160° | |||
| Vertical Viewing Angle | 140° | |||
| Expected Lifetime | 100, 000 Hrs | |||
| Best Viewing Distance | 4m | 5m | 6m | 9m |
| Scan Method | 1 / 16 Scan | 1 / 6 Scan | 1 / 5 Scan | 1 / 3 Scan |
| Maintenance Way | Front | |||
| IP Rating | IP 65 | |||
Where can we use the floor LED screen ? What benefits can it bring ?
As long as you need to attract traffic, the floor LED screen will become your best weapon. For example, shopping malls, exhibitions, amusement parks, bars, stages, urban greening, landmark buildings, corporate logos, square markets, automobile 4S shop.
1. Increase in traffic - It can bring customers new and magical fun experiences, it can attract customers to your event venue.
2. Increase the profits of the surrounding stores - It can indirectly increase the purchase amount of the store, increase the local business value of the place, and attract more brands to stay.
3. Stimulate the audience’s senses and enhance the viewing experience - When your competitors are still using the LED screens, considerable posters to catch the customers, you are already making the entire stage performance into their body and blood, which can allow you to compete against to have a better stage effect.
4. Increase the fun of entertainment
5. In the place of public welfare activities, it is like a city landmark

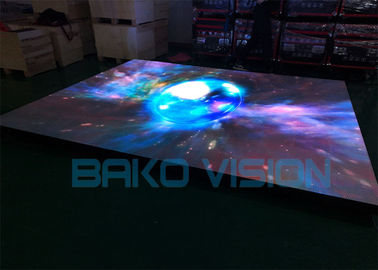

Interactive LED Panel Cases
About Bako Vision
FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.
Q2. What is your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery. Will show you the Professional Quality Control Photos before you pay the balance. Then you could see everything by your eyes before the shipment.
Q3. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty for your products.
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q7: How can I get technology support?
A:1. We could give you the free training in our factory, which include system use, system maintenance and equipment protection ect.
2. We could teach you by remotely if anything not clear.
