Product Details:
Payment & Shipping Terms:
|
| Product Name: | Outdoor Advertising LED Display | Pannel Material: | Steel/Die-casting Aluminum |
|---|---|---|---|
| Matain Way: | Front/Rear | Refresh Rate: | 1920Hz/3840Hz |
| Contrast Ratio: | 4000:1 | Brightness: | 4500nits - 6500nits |
| IP Rating(Front/Rear): | IP65/IP54 | Warranty: | 2 - 5 Years |
| Highlight: | P6 Outdoor Fixed LED Display,6500nits Outdoor Fixed LED Display,4500nits Outdoor Fixed LED Display |
||

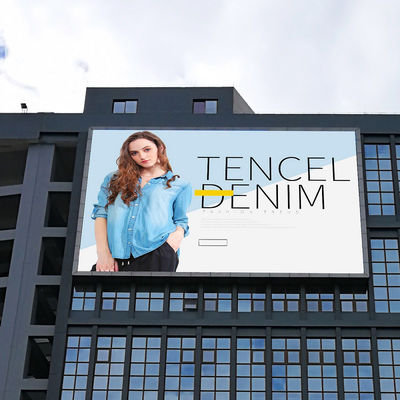

Digital Signage Giant LED Screen P6 Outdoor Advertising LED Display for High Building
BOF Series (BOF-B.pdf)

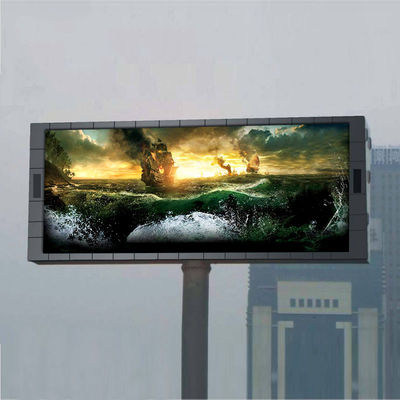

Outdoor LED Billboard
| Specifications | |
|---|---|
| Pixel Pitch(mm): | 3 / 4 / 5 / 6.67 / 8 / 10 / 16 |
| Brightness(nits): | Up to 6500 |
| Refresh Rate(Hz): | >1920 |
| Key Point: | Most common outdoor LED billboard |
Key Features
Gaint LED Screens Parameters
|
|
View Distance | In/meter | 392/10 |
| View Angle (H/V) | Deg. | 140/140 | |
| LED Type | N/A | SMD3535 | |
| Pixel Pitch | Unit | 10 | |
| Brightness | Nits | 6500 | |
|
Module Dimension(WxH)
|
In/mm | 12.6x6.3/320x160 | |
|
Module Pixel(WxH)
|
Pixel | 32x16 | |
|
Cabinet Dimension(WxH)
|
In/mm | 37.8x37.8/960x960 | |
|
Cabinet Pixel(WxH)
|
Pixel | 96x96 | |
|
Cabinet Weight
|
Kg | 50 | |
|
Cabinet Material
|
N/A | Steel | |
|
Maintenance Way
|
N/A | Rear | |
| Power Operating | AC Operation | V | AC100~240V 50-6-Hz switchable |
| Power Consumption(Max./Ave.) | W/m2 | 730/220 | |
| Control System |
Refresh Rate
|
Hz | 1920 |
|
Driving Type
|
Scan | 1/2 | |
|
Digital Processing
|
Bit | 14 | |
|
Gray Scale
|
Level | 16384 | |
|
Support Input
|
N/A | Composite video,S-video,DVI,HDMI,SDI,HD-SDI | |
|
Control Distance
|
Meter |
Ethernet cable within 100 meters, Optical fiber within 5KM |
|
| Raliability | Ingress Protection | N/A | IP65 front/IP54 back |
| Operating Humidity | RH | 10~95% | |
| Operating Tem. | F/C | -4F~140F/-30~60 | |
| Life Time(50% brightness) | Hour | 100,000 |

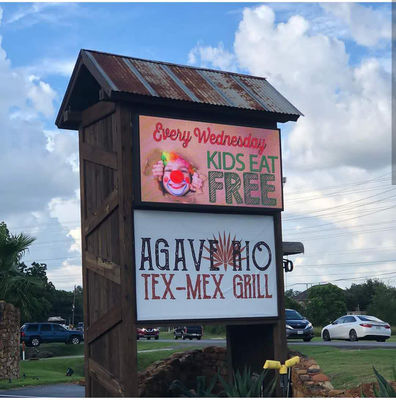

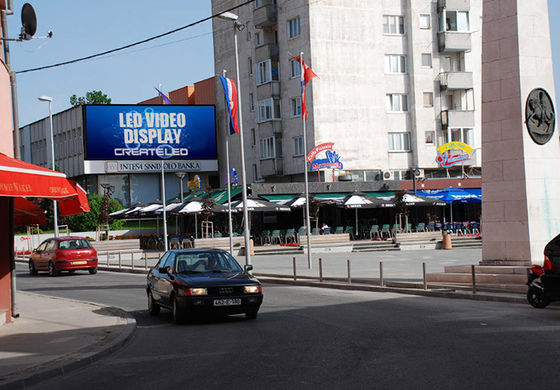

Advertising LED Sign Cases
BOF-B Series is an most common and popular outdoor fixed LED display.
It is used for outdoor commercial place, supermarket, shopping mall, bank, hotel, etc.
BOF-B Series is the right one to choose if you need the outdoor LED billboard to spread your brand.

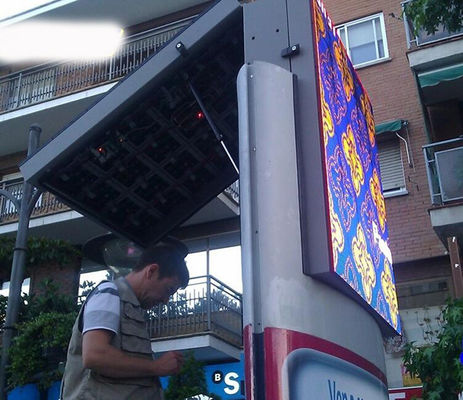

How do I install the outdoor led screen as I am new in this industry?
1. About how to install it :
The good thing is, in many countries and regions, there are companies that will do the work for you.
If you don't know much about this industry, we can recommend our partners to help you install your outdoor LED display.
Just hit us up.
2. About how to use and operate :
We will provide online remote technical support, which can teach you how to use the LED display.
If you don't like going that route, we have very clear video tutorials as well that will guide you on how to use and operate your LED display screens.
Third, once you become our customer, you can actually visit our factory and have our guys teach you.
Lastly, if you want to work in this industry for a long time, you can become one of our dealers. We will send our technical staff to your country and train your guys on site every two year.
About Bako Vision
FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.
Q2. What is your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery. Will show you the Professional Quality Control Photos before you pay the balance. Then you could see everything by your eyes before the shipment.
Q3. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty for your products.
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q7: How can I get technology support?
A:1. We could give you the free training in our factory, which include system use, system maintenance and equipment protection ect.
2. We could teach you by remotely if anything not clear.
