Product Details:
Payment & Shipping Terms:
|
| Pixel Configuration: | 3.91mm | Pixel Density: | 65536pixels/m2 |
|---|---|---|---|
| IP Rating: | IP65 | Servicing: | Front/Rear |
| Viewing Angle: | 160°/140° | Contrast Ratio: | 4000:1 |
| Brightness: | ＞6000nits | Panel Dimensions: | 500 X 500 X 80 / 500 X 1000 X 80 |
| Highlight: | P3.91 Stage Rental LED Display,65536pixels/M2 Stage Rental LED Display,6000nits Concert Rental LED Display |
||
Quick Details:
1, Pixel Pitch: 3.91mm.
2, SMD LEDs, Wide viewing angle: 160°/ 140°.
3, Digital Process: 16bits.
4, Standard cabinet size: 500 x 500 x 80mm / 500 x 1000 x 80mm, cabinet weight: 8 / 13kg/Panel.
5, Warranty: 2years.
6, Recommended minimum viewing distance: 4m.
Description:
Bako outdoor rental led screen pixel include 2.97mm,3.91mm, 4.81mm, within these pixels, 3.91mm, 4.81mm are the most hot-selling and highest cost-effective series.
Application:
Bako outdoor led electronic screen are widely installed on stage,hall,expo, Displaying video or music and so on.
Features:
1, High IP Rating IP65, good waterproof and dust resistance, suitable for every condition.
2, Wide viewing angle 160° for broader reach, seamless in all direction with same image quality output, suitable for large gatherings.
3, High brightness from 4,000nits to 6,000nits, visible from every direction even face to direct sunshine.
4, Good heat dissipation and using meanwell power supply, long lifespan.
Advantages:
1, High quality SMD led panels, stable and high durability.
2, Without ghosting, clear and clean.
3, High fresh rate up to 2,000Hz, high contrast to 4,000:1, vivid color.
Specification:
| BOR-III-3 | |
| Physical Pitch | 3.91mm |
| Pixel Configuration | SMD1921 |
| Pixel Density | 65,536 pixels/Square Meter |
| Module Dimensions(W x H) (mm) | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 / 500 x 1000 x 80 |
| Physical Resolution of Panel (W x H) | 128 x 128 / 128 x 256 |
| Panel Material | Die-Casting Aluminum |
| Single Cabinet Weight | 8 / 13 kg/panel |
| Processing | 16bit |
| Colours | 281 trillion |
| Contrast Ratio | 4,000 : 1 |
| Average Power Consumption | 75 /150 W /panel |
| Max Power Consumption | 225 /550 W /panel |
| Operating Temp/Humidity | -20ºC - 60ºC / 10ºC - 60ºC |
| Storage Temp/Humidity | -30ºC - 60ºC / 10ºC - 60ºC |
| Refresh Rate | >1,920 Hz |
| Brightness | ≥6,000nits |
| Expected Lifetime | 100,000 Hrs |
| Max Stacking | 20/10 |
| Max Hanging | 20/10 |
| Servicing | Front / Rear |
| IP Rating (Front/Rear) | IP 65 / IP 54 |

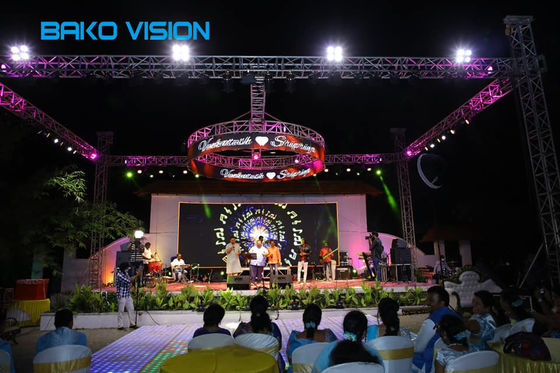

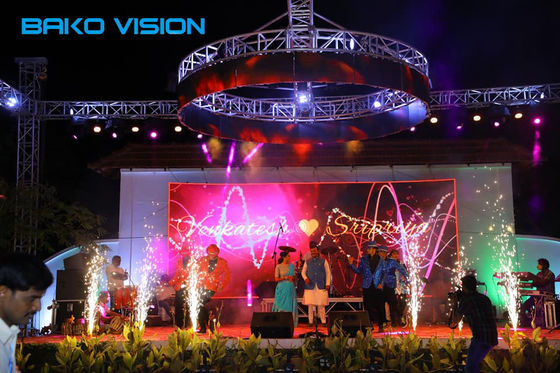

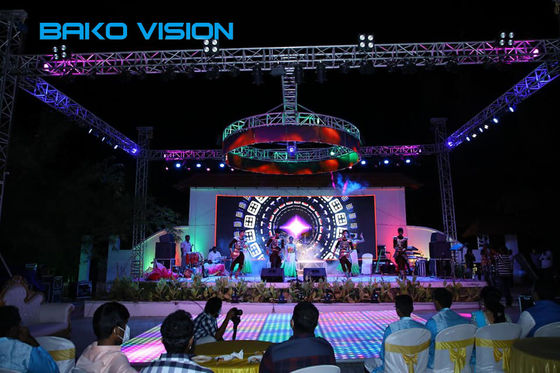

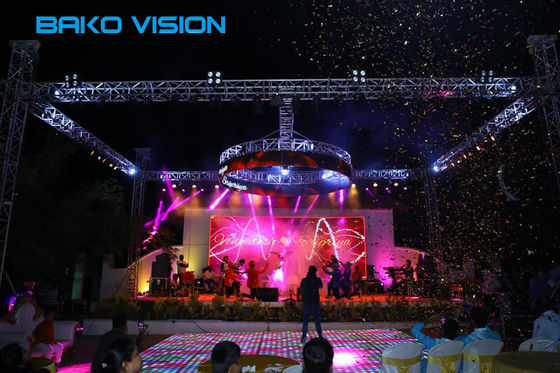

Case:
FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer located in Shenzhen since 2005.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, sample needs 5-7 days, mass production time needs 2-3 weeks for order quantity more than.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2 years free warranty to our products.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
