Product Details:
Payment & Shipping Terms:
|
| Led Module Size: | 320x160mm | Leds: | Nationstar |
|---|---|---|---|
| Power Supply: | Meanwell | Driver IC: | ICN2038S |
| Led Type: | SMD2727 | ||
| Highlight: | 5500 Nits Advertising LED Trailer,15625 pixels/m2 Advertising LED Trailer,SMD2727 Truck Mobile LED Panel |
||

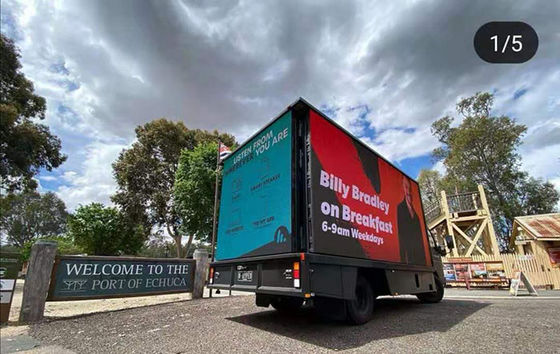

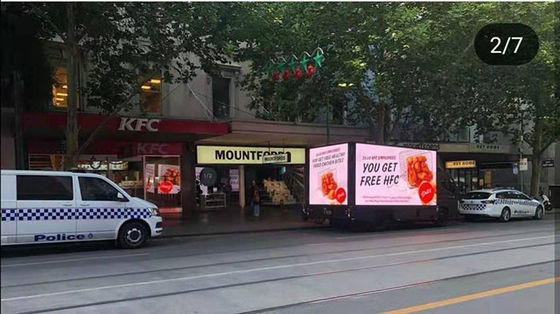

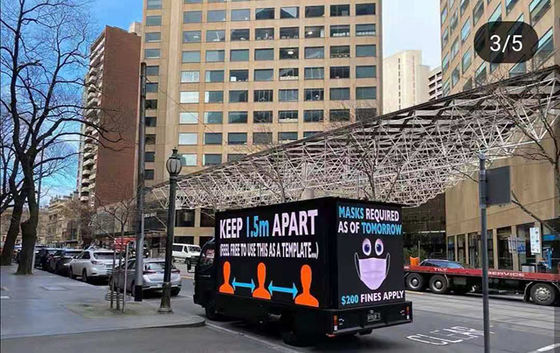

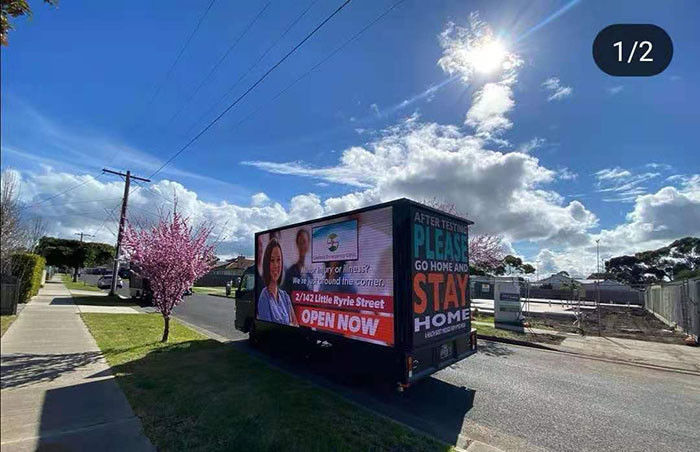

P8 Truck Mobile Advertising Display LED Trailer with 5500 Nits Brightness
P8 Truck Mobile Advertising LED Display LED Trailer Features:
1) Lightweight, space-saving and labour-saving.
2) Nice appearance and simple structures.
3) Quick locking methods, no tools installation.
4) With indicator lights and backside flexible door, easy to test and maintain.
5) High brightness over 6000 nits, using at daytime.
6) IP65, waterproof.
7) High refresh rate, HD video performance.
8) Good prices and aftersales services.
Application:
The full color P6 Rental LED Display is widely outdoor rental stage screen,perfectly as mian background for various stage shows,trade shows,concerts,etc,with brilliant video quality,HD image viewing and best viewing distance. It's equipped with fast-locking system,100% no tools installation, very easy to assemble,dismantle and maintenance.
Prices are very competitive, reaching good performance with limited budget.
P8 Truck Mobile Advertising LED Display LED Trailer Specs
| BOF-B-8 | |
| Physical Pitch | 8 mm |
| Pixel Configuration | SMD3535 |
| Pixel Density | 15625 pixels/m2 |
| Module Dimensions (W × H) (mm) | 320 × 160 |
| Panel Dimensions (mm) | 960 × 960 × 150 |
| NO .of Modules Per Panel (W × H) | 3 × 6 |
| Physical Resolution of Module (W × H) | 40× 20 |
| Physical Resolution of Panel (W × H) | 120 × 120 |
| Panel Material | Steel / Aluminum |
| Weight(m²) | 65/45 |
| Processing | 16 bit |
| Colours | 281 trillion |
| Contrast Ratio | 2,000 : 1 |
| Average Power Consumption | 36 W/m² |
| Max Power Consumption | 900 W/ m² |
| Brightness | ≥6500 nits |
| Refresh Rate | ＞1,920 Hz |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing angle | 140° |
| Expected Lifetime | 100, 000 Hrs |
| Servicing | Rear |
| IP Rating | IP 65 |
| Operating Temp/Humidity | -20℃- 50℃ / 10%-90% |
| Storage Temp/Humidity | -20℃-50℃ / 10%-90% |
| Scan Method | 1/8 Scan |
