| Tube Chip Color: | Full Color | Pixel Pitch: | P1.25 /P1.56 /P1.66 /P1.92 |
|---|---|---|---|
| Pixel Configuration: | 1R 1G 1B | Pixel Density: | Optional |
| Color Number: | 281 Trillion | Viewing Angle(H/V): | 160 / 140 |
| Contrast Ratio: | 4000:1 | Gray Scale: | 16bit |
| Highlight: | 1.25mm Pitch Indoor LED Display,SMD0909 Indoor LED Display,220W/m2 TV Studio LED Display |
||
UHD LED Display Full Color Video Wall P1.25 With Ultra Small Fine Pixel Pitch for TV Studio, Control Room with High-Standard
| UHD-1.2 | UHD-1.5 | UHD-1.8 | UHD-2.3 | |
| Physical Pitch | 1.56mm | 1.87mm | 2.34mm | |
| Pixel Configuration | SMD0909 | SMD1010 | SMD1010 | SMD1010 |
| Pixel Density | 640,000pixels/m² | 409,600pixels/m² | 286225pixels/m² | 182329pixels/m² |
| Module Dimensions(W*H)(mm) | 150*168.75 | |||
| Panel Dimensions(mm) | 600*337.5 | |||
| No. Of Modules Per Panel(WxH) | 4x2 | |||
| Physical Resolution of Module(WxH) | 120x135 | 96x108 | 80x90 | 64x72 |
| Physical Resolution of Panel(WxH) | 480x270 | 384x216 | 320x180 | 256x144 |
| Panel Material | Die-casting | |||
| Single Cabinet Weight | 6kg/panel | |||
| Processing | 16 bit | |||
| Color Number | 281 trillion | |||
| Contrast Ratio | 4,000:1 | |||
| Average Power Consumption | 220W/m2 | |||
| Max Power Consumption | 600W/m² | |||
| Refresh Rate | 3840Hz | |||
| Driving Method | 1/27 Scan | 1/27 Scan | 1/30 Scan | 1/24 Scan |
| Brightness | >800 nits | |||
| Viewing Angle(H/V) | 160°/140° | |||
| Expected Lifetime | ≥100,000 Hrs | |||
| IP Rating(Front/Rear) | IP40 | |||
| Operating Temp/Humidity | -20ºC-50ºC/10%-90% | |||
| Storage Temp/Humidity | -40ºC-60ºC/10%-85% | |||
| Certification | CCC,TUV-CE,ETL | |||
UHD LED Display Full Color Video Wall P1.25 With Ultra Small Fine Pixel Pitch for TV Studio, Control Room with High-Standard is kind of a high-end product and mainly used in meeting room, tv studio, video conference and control room. And we recently just exported this product to a tv studio in Macao, I can email your some pictures if you are interested.
With the help of UHD LED Display, we can create a bright, open and highly-productive meeting environment together, and this screen helps grab and maintain your attendees' attention while improving information delivery effectiveness and overall efficiency at each and every meeting.
UHD LED Display Full Color Video Wall Specifications

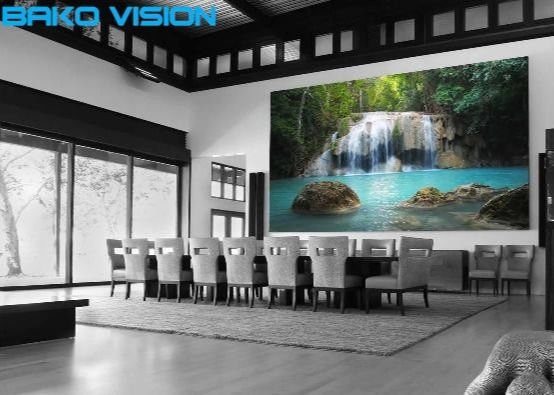

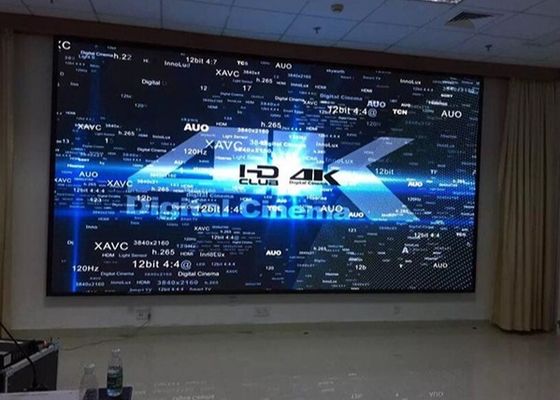

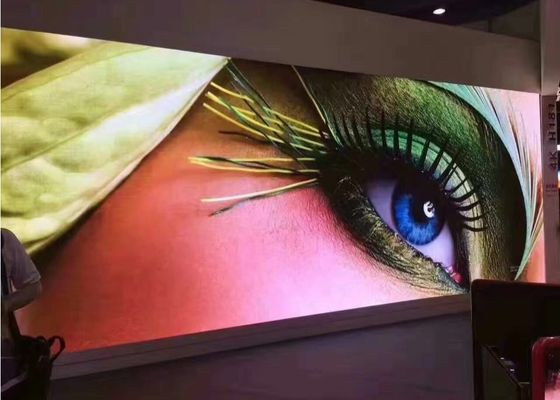

UHD LED Display Full Color Video Wall P1.25 Cases
UHD LED Display Full Color Video Wall Features
16:9 HD excellent fidelity
High accuracy achieves high quality
Unique module design
Precise localization
Front service and disassembly
Wire hidden design
Handle internally installed & Module magnetically mounted
Lightweight and slim thickness
About us:
Shenzhen BAKO VISION Technology Co.,Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holding end professional customers among domestic and overseas markets.
Do not be hesitate to contact us if you have any quiry!
FAQ
Q1. Do you provide samples?is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q2.How to order?
A:Please send us your purchase order by Email or we can make you proforma invoice under your request.
We need to know the following information for your order before sending you PI.
1)Product information-Quantity,Specification(Size,Material,Technological if needed and Packing requirements etc.
2)Delivery time required.
3)Shipping information-Company name,Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if there's any in China.
Q3. Do you offer guarantee for the products?
A: Yes,we offer 2-5 years warranty to our products.
