| Module Dimension: | 150x168.75mm | Panel Dimension: | 600x337.5mm |
|---|---|---|---|
| Panel Material: | Die-casting Aluminium | Single Panel Weight: | 4.6kg/panel |
| Gray Scale: | 16bit | Refresh Rate: | >1920Hz |
| Brightness: | >800nits | IP Rating: | IP40 |
| Contrast Ratio: | 4,000:1 | ||
| Highlight: | P1.25 Rental Curved LED Display,IP40 Rental Curved LED Display,800 Nits Stage LED Display |
||

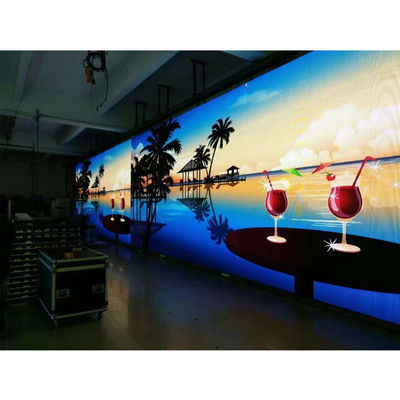

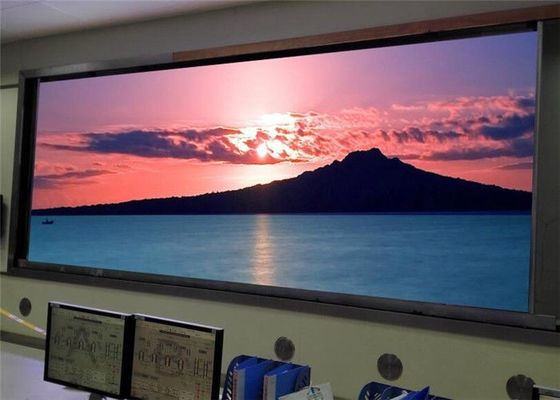

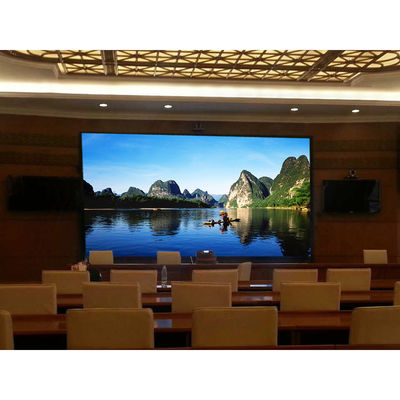

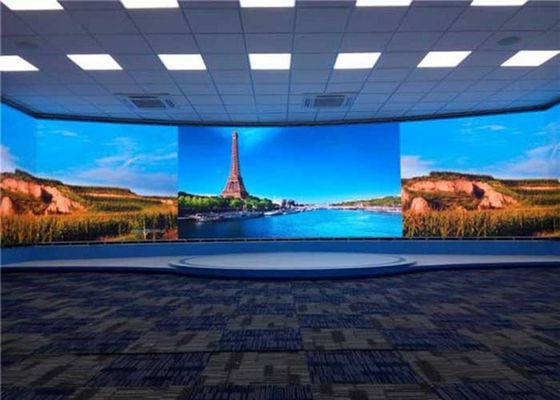

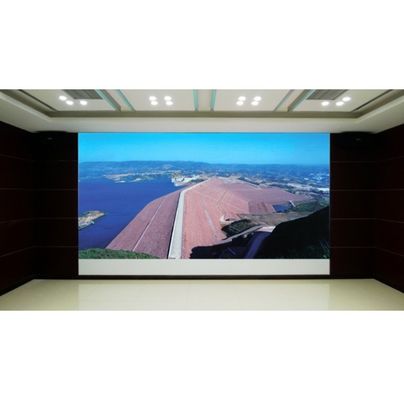

Low power comsumption 1920Hz refresh rate high brightness indoor HD LED video wall display
1-UHD.pdf
High gray scale, ultra HD:
Cabinets configure brand IC, gray scale reach to 16bit, data refresh rate reach 3840Hz, the display screen is soft, delicate and realistic.
Lightweight and slim thickness:
Cabinet lightweight design, using die-cast aluminum designed and manufactured. One single cabinet only 6kg weight and 60mm thickness.
Specifications:
| UHD-1.2 | UHD-1.5 | UHD-1.6 | UHD-1.9 | |
| Physical Pitch | 1.25mm | 1.56mm | 1.66mm | 1.92mm |
| Pixel Configuration | SMD0909 | SMD1010 | SMD1010 | SMD1010 |
| Pixel Density | 640,000pixels/m² | 409,600pixels/m² | 360,000pixels/m² | 270,000pixels/m² |
| Module Dimensions(W*H)(mm) | 150x168.75 | |||
| Panel Dimensions(mm) | 600x337.5 | |||
| No. Of Modules Per Panel(WxH) | 4x2 | |||
| Physical Resolution of Module(WxH) | 120x135 | 96x108 | 80x90 | 64x72 |
| Physical Resolution of Panel(WxH) | 480x270 | 384x216 | 320x180 | 256x144 |
| Panel Material | Die-casting | |||
| Single Cabinet Weight | 4.6kg/panel | |||
| Processing | 16 bit | |||
| Color Number | 281 trillion | |||
| Contrast Ratio | 4,000:1 | |||
| Average Power Consumption | 220W/m² | |||
| Max Power Consumption | 800W/m² | |||
| Refresh Rate | >1,920Hz | |||
| Driving Method | 1/30 Scan | 1/32 Scan | 1/30 Scan | 1/26 Scan |
| Brightness | >800 nits | |||
| Viewing Angle(H/V) | 160°/140° | |||
| Expected Lifetime | ≥100,000 Hrs | |||
| IP Rating(Front/Rear) | IP40 | |||
| Operating Temp/Humidity | -20ºC-50ºC/10%-90% | |||
| Storage Temp/Humidity | -40ºC-60ºC/10%-85% | |||
| Certification | CCC,TUV-CE,ETL | |||
16:9 HD excellent fidelity:
Easy to implement HD/4K/8K image seamless splicing. Pixel to pixel display mode matching with 16:9 video source. Image segmentation can be carried out, achieving the input source resolution equal to LED display screen resolution, restoring images to the maximum extent possible, meanwhile avoiding distortion and blurring caused by zooming in or out.
High accuracy achieves high quality:
New high strength die - casting aluminum material, CNC finish machining make the cabinet flatness reaches 0.01mm level, guaranteed seamless splicing effect.
Unique module design:
Separation design. PCBA and bottom case are not integrated structure, this can make the cabinet lighter weight and better heat dissipation.
Precise localization:
Each module has 2pcs fixed axes for connection, one to one correspondence with the positioning holes on the cabinet frame, quick installation.
Front service available, saving maintenance cost and time consumption.
Wire hidden design:
Cabinet uses the wire hidden design. There are wire holes in the side of each cabinet . Cabinet back visual wireless after assemble. Much neat and beautiful.
Front service and disassembly:
Power supply, hub card, receive card and module all front assemble or disassemble. A repair aisle reserving is unnecessary. Built-in installation method can help to save space.
Also front maintenance is available.
Handle internally installed & Module magnetically mounted:
2pcs handles and 3pcs magnetic sheets within the cabinet. Easy to fix the modules.
High precision quick lock assemble and disassemble:
The sides of the cabinet can be quick lock and quick disassemble, convenient operation. Save time as well as manpower.Apply users a better sense of operation experience, only need 10 seconds to install a cabinet.
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005,a world class manufacturer of
technologically advanced LED displays,it is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION product lines have include I/O rantal,I/O fixed, UHD fine pitch, transparent screen,advertising poster,foldable screen… meanwhile, based on our experienced R&D team,and comprehensive management , we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
FAQ
Q1:How to choose a proper led screen for your need?
A:You just need to think of 3 simple questions when you choose a led screen by yourself.
1.Will you use it indoor or outdoor?
2.Is it for rental use(need to be moved from one place to another place very often) or for fixed installation(to be installed in one place forever)?
3.what is the appoximate size of the led screen you would like to purchase?
Q2:Which pixel pitch should i choose?
A:There are many different pixel pitch from 1.667--20,25,30mm, there is a roughly principle-usually small pixel(1.667mm-10mm) used for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen(for example high way huge advertisement).
Q3:Which control system should i choose?
A:There is both synchronous and asynchronous control system for led screen on the market,for big size led screen(usually more than 20sqm) need to use synchronous control system,below 20sqm it's up to you to use syn or asyn.But asyn control system's refresh rate is much lower than sync control system and for asyn control system, you can choose to use wifi,3G,4G etc wireless control.
