Product Details:
Payment & Shipping Terms:
|
| LEDs: | SMD2121 | Pixel Pitch: | 4mm |
|---|---|---|---|
| Servicing: | Front/Rear | Viewing Angle: | 160°/140° |
| Refresh Rate: | ＞1920Hz | Contrast Ratio: | 4000:1 |
| Highlight: | SMD2121 Indoor Fixed LED Screen,P4 Indoor Fixed LED Screen,900 Nits LCD Video Wall |
||
Pixel Pitch 4mm Indoor Fixed LED Screen Video Display Wall for Hall and Concert
Fixed Led Video Wall Quick Details:
1, Pixel Pitch: 4mm
2, Full colors: 281trillions.
3, SMD, Wide viewing angle: 160°/ 140°.
4, Standard cabinet size: Customized, weight: 28kg/m2.
5, Recommended minimum viewing distance: 5m.
6, Warranty: 2 years.
Fixed Led Video Wall Description :
Bako Vision indoor LED Wall include permanent installation indoor electronic led display, the pixel various from 3mm, 4mm, 5mm, 6mm.You can use it as billboard or Led Wall in Concert hall or shop and so on.
Fixed Led Video Wall Features:
1, High brightness from 900 nits to 1,200nits, visible from every direction indoor.
2, SMD LEDs ensure large viewing angle, up to 160° horizontally and 140° vertically.
Image no distortion, no color cast in any angle within this range.
3, Cabinet design lightweight, Front access can be easy to install and maintanence.
4, Digital process: 16bits, High contrast ratio 4000:1, vivid color.
5, You can choose front service or back service, it's easy for maintenance
Fixed Led Video Wall Specification:
| Physical Pitch | 4mm |
| Pixel Configuration | SMD2121 |
| Pixel Density | 62,500 pixels/Sqm |
| Module Dimensions(W x H) (mm) | 256 x 128 |
| Panel Dimensions (mm) | 1024 x 768 |
| NO. of Modules Per Panel (W x H) | 4 x 6 |
| Physical Resolution of Module (W x H) | 64 x 32 |
| Physical Resolution of Panel (W x H) | 256 x 192 |
| Panel Material | Steel / Aluminum |
| Scan Method | 1/16 Scan |
| Gray Scale | 16bit |
| Colours | 281 trillion |
| Contrast Ratio | 4,000 : 1 |
| Average Power Consumption | 120 W /Sqm |
| Max Power Consumption | 400 W /Sqm |
| Operating Temp/Humidity | -10ºC - 60ºC / 10% - 60% |
| Storage Temp/Humidity | -30ºC - 60ºC / 10% - 60% |
| Refresh Rate | >1,920Hz |
| Brightness | 900-1,200nits |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 140° |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front / Rear |
| IP Rating (Front/Rear) | IP 21 |

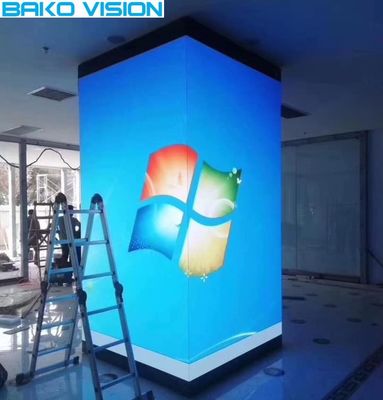

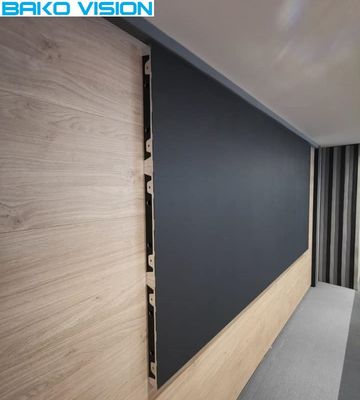

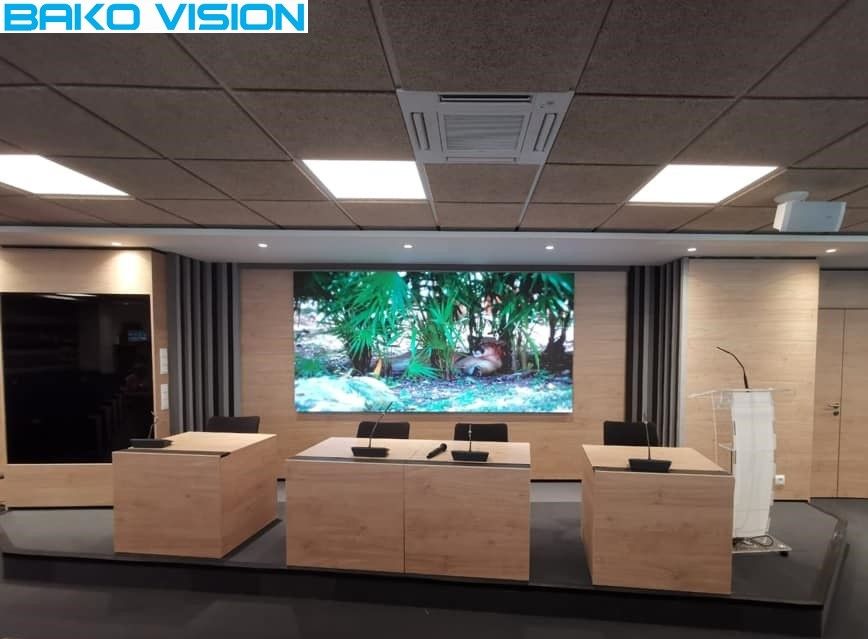

Fixed Led Video Wall Case:
Pre-producing
In producing
After service
