Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 2.5mm, 3mm, 5mm | Panel Size: | 960*320mm/768*288mm |
|---|---|---|---|
| Module Size: | 160*160mm/192*96mm | Panel Material: | Aluminum |
| Maintenance Way: | Front Service | IP Rating: | IP65 |
| Brightness: | 3,500 - 5,500nits | Refresh Rate: | > 1920Hz |
| Contrast Ratio: | 4000:1 | Expected Lifetime: | 100,000 Hrs |
| Highlight: | 5500 Nits Mobile LED Billboard,Movable Mobile Led Signs |
||

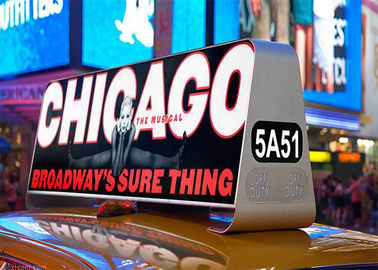

Digital Taxi Roof LED Advertising Screen Movable Waterproof LED Billboard Surpport USB/3G/4G/WIFI
Taxi Top LED Sign, Delivery Your Message !
BT Series (BT.pdf)
Taxi Top Advertising Display
| Specification | |
|---|---|
| Pixel Pitch(mm): | 2.5 / 3 / 5 |
| Brightness(nits): | 3,500 - 5,500 |
| Refresh Rate(Hz): | >1920 |
| Key Point: | Digital Moving Billboard |
Mobile Taxi Signage Features
1. Car Battery Protection
With the special car power supply, once the car battery was closed, the screen will be closed too. If the car battery is going to run out, the power supply will shut down automatically until the power is enough to play again.
2. Overvoltage and Over Current Protection
As the car battery offers the power to the screen when the car engine started, the voltage may rise to the highest, and also when there has some traffic, the voltage will be unstable, the special power supply could protect the screen.
3. Low Power Consumption
High power consumption will bring more problems to the car, so it is important to use low power consumption as a protection for the car.
4. High Brightness
Above 5000nits, it is visible under sunlight.
5. Cooling System Design
6. 100% Vibration Testing
Taxi LED Sign Electricity Parameters
| BT-2 | BT-3(Hot sale) | BT-5 | |
| Physical Pitch | 2.5mm | 3mm | 5mm |
| Pixel Configuration | SMD 2121 | SMD 2121 | SMD 2727 |
| Pixel Density | 160,000 pixels/m² | 111,111 pixels/m² | 40,000 pixels/m² |
| Module Dimensions(W*H)(mm) | 160*160 | 192*196 | 160*160 |
| Screen Size(mm) | 960*320 | 768*288 | 960*320 |
| Screen Resolution | 384*128 | 256*96 | 192*64 |
| Panel Material | Aluminum | ||
| Screen Weight | 26kg | 15kg | 23kg |
| Gray Scale | 16 bit | ||
| Refresh Rate | >1920 Hz | ||
| IP Rating | IP65 | ||
| Operating Temp/Humidity | -40ºC-70ºC/ 10%-90% |
-40ºC-70ºC/ 10%-90% |
-40ºC-70ºC/ 10%-90% |
| Storage Temp/Humidity | -30ºC-60ºC/ 10%-60% |
-30ºC-60ºC/ 10%-60% |
-30ºC-60ºC/ 10%-60% |
| Avg./ Max. Power Consumption | 180/480W/ set | 80/2500W/ set | 150/450W/ set |
| Servicing | Back | ||
Taxi Top Billboard Case Study
