| Pixel Pitch: | 8mm | Module Size: | 320*320mm |
|---|---|---|---|
| Cabinet Size: | 960*960mm | Cabinet Material: | Die-casting Aluminum |
| Service Method: | Front Access | ||
| Highlight: | P8 Aluminum LED Panels,6500 Nits Led Video Display |
||

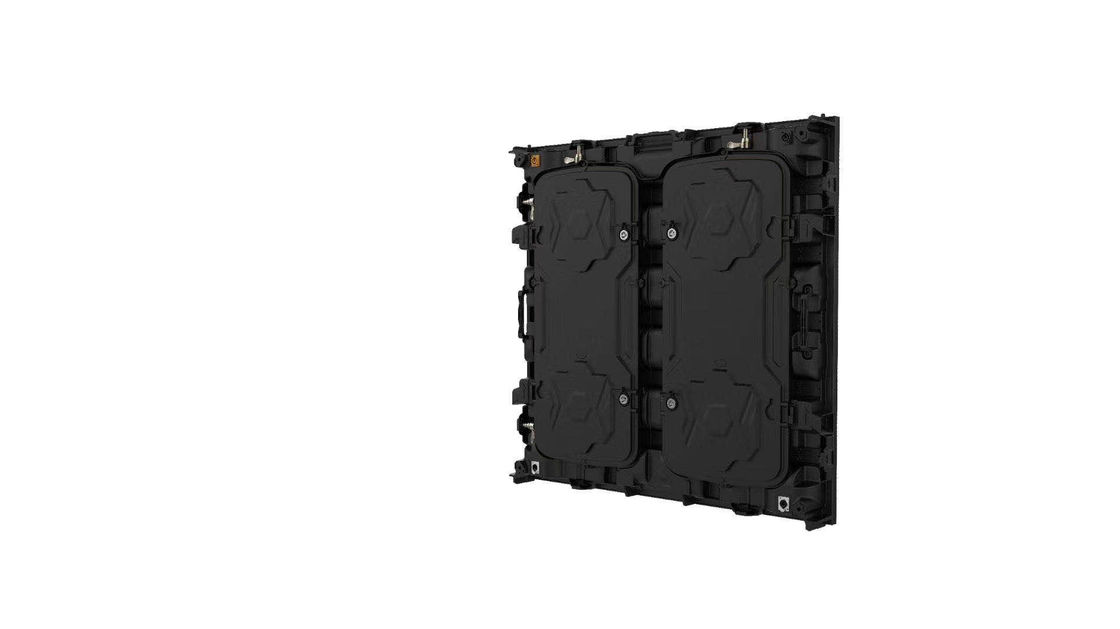

P8 Outdoor Video Wall Light Weight Cabient High Brightness LED Screen Display 960x960mm Die-casting Aluminum LED Panels
Product Feature:
1.High quality LED chip and high anti-static electricity capacity.
2.Large viewing angle and smooth displaying provide excellent visual effect from every angle.
3.The integration of lamp and driving IC,together with with the multi-circuit structure, achieves evenly-distributed current,low power consumption and fast heat dissipation.
4.Ultra high brightness,low attenuation,high reliability and weather ability.
5.High contrast ratio. Adopting black lamps can improve the contrast ratio by 50%.
6.High refresh rate, high gray scale,ghost-canceling, low power consumption, low EMI, anti-creeping, multi-route redundancy backup-supporting,and dot-by-dot-calibration.
Specification
| Model | BDF-8 |
| Pixel Pitch | 8mm |
| Pixel Density | 15625 pixels/m2 |
| LED Type | SMD3535 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 960*960mm |
| Cabinet Resolution | 96*96pixels |
| Cabinet Weight | 35kg/Cabinet |
| Cabinet Material | die casting aluminum |
| Ingress Protection(front/rear) | IP65/IP54 |
| Brightness | >6500nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/10 Scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Gray Scale | 16bit |
| Power Consumption(avg.) | 420w/m2 |
| Input Voltage | AC 110/220±10%, 50~60Hz |
| Temperature(operating/storage) | -20~50°C / -40~60°C |
| Humidity(operating/storage) | 10%~90%RH / 10%~85%RH |
| MTBF | ≥1000hrs |
| Life Span | ≥100000hrs |
| Pixel Failure | <0.0002 |
Application Areas:
Indoor advertising, digital billboards, advertising in big companies
Indoor Sports halls, fields, playgrounds.
Indoor stage background

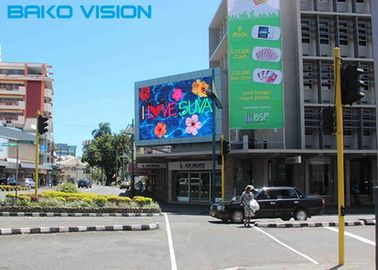

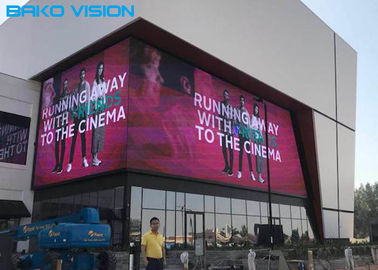

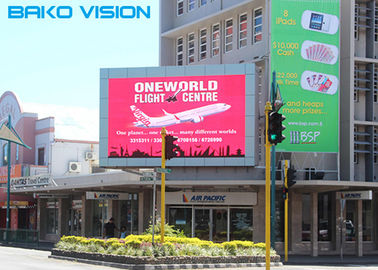

Facades of shopping malls, department stores, banks and car dealerships.
Architecture and social projects, information systems in cities.
Show-business, concerts, festivals, motor shows and other public events
Entertainment venues telecommunications industry and auction house.
FAQ
1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays.
2. What kind of display do we provide?
We have indoor/outdoor/mobile LED /rental LED display /LED stage/ Advertising LED display for you choose.
3. What about the lead time for an order?
Always: 10-17 days, as your order quantity, sometimes we have stock, can delivery within 7 days
4. What about the warranty?
We have Three years quality guaranteed, spare parts such as led module, receiving card, control card, power supply are damaged not cause of artificial damaged, then it’s free maintenance and ship back new ones for replacement.
5.How about the quality?
Our led products must be testing of at least 72hours before shipping, from purchase raw materials to ship ,Each step has strict quality control systems to ensure led display with good quality
6. Can you offer a technical support? Since it's my first time....
We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Nova star or Linsn control systems, our engineer can directly teach you how to control, or help you to done if you are really don't know how to control(Our Engineer can text English, we can saving more time )
