Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 3.91mm | Pixel Density: | 65536 Pixels/m2 |
|---|---|---|---|
| Cabinet Dimension: | 500*500mm/500*1000mm | Driving Method: | 1/28 |
| Highlight: | 1200 Nits Outdoor LED Panel,P3.91 LED Video Wall |
||
P2.97 Outdoor LED Stage Rental Display Panels Video Wall LED Boards 500*500mm Die-casting Aluminum Cabinet
Key Feature
• Optional of Convex Shaped, Concave Shaped and Wave Shaped screens
• Ultra slim and lightweight
• Rental Slim aluminum structure
• Seamless splicing
• Quick lock system, easy installation
• High refresh rate and high contrast
• Wide viewing angle
• Working status indicator available

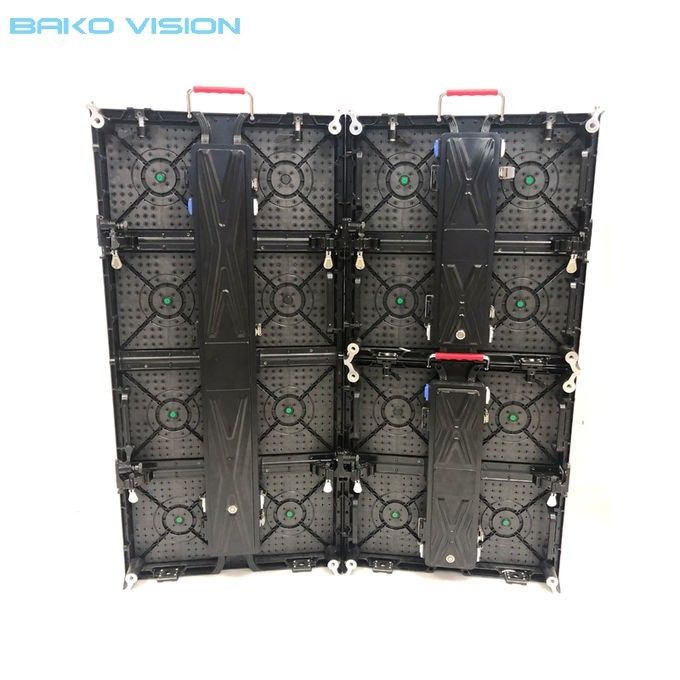

Be distinguished by its design, P3 Indoor event audio visual equipment LED video walls are consisted to be the best event production on the market. Aim at high-end market, its quality, reliability and excellent visual effect contribute the most to its success.Dies casting aluminum material design, it only weighs 8KG per unit.With multi fast locks and alignment pins, flatness and seamless are greatly reduced.
Specification
| Model | BOR-II-3.9 |
| Pixel Pitch | 3.91mm |
| Pixel Density | 65536 pixels/m2 |
| LED Type | SMD2121 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 500*500mm/500*1000mm |
| Cabinet Resolution | 128*128px/128*256px |
| Cabinet Weight | 8kg(13kg) |
| Cabinet Material | die casting aluminum |
| Ingress Protection(front/rear) | IP65 |
| Brightness | >1200nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/13 Scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Gray Scale | 16bit |
| Power Consumption(avg.) | 320w/m2 |
| Input Voltage | AC 110/220±10%/50~60Hz |
| Temperature(operating/storage) | -20~50°C / -40~60°C |
| Humidity(operating/storage) | 10%~90%RH / 10%~85%RH |
| MTBF | ≥1000hrs |
| Life Span | ≥50000hrs |
| Pixel Failure | <0.0002 |
Application

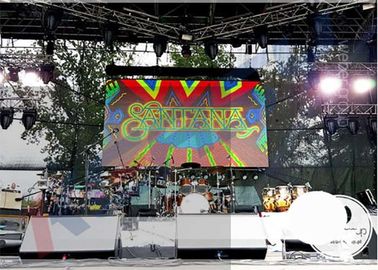

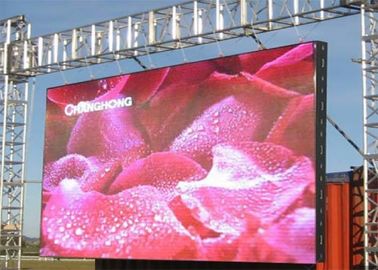

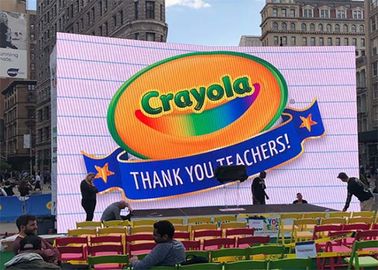

Indoor stage, TV studio, concert, theme park and exhibition where need quick installation and HD video.
