Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 3.91mm | Pixel Density: | 65536 Pixels/m2 |
|---|---|---|---|
| Brightness: | >6500 Nits | Cabinet Resolution: | 128*128px/128*256px |
| Cabinet Size: | 500*500/500*1000mm | ||
| Highlight: | 6500 Nits Outdoor Led Panel,P3.91 Led Display Panels |
||

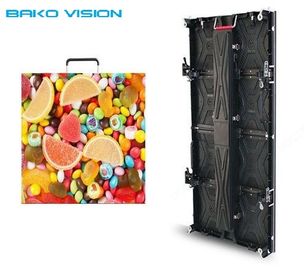

P3.91 Outdoor LED Panels Stage Video Wall High Refresh Rate LED Display Screen LED Board
Key Feature
• Optional of Convex Shaped, Concave Shaped and Wave Shaped screens
• Ultra slim and lightweight
• Rental die-casting aluminum structure
• Seamless splicing
• Quick lock system, easy installation
• High refresh rate and high contrast
• Wide viewing angle
• Working status indicator available
Application

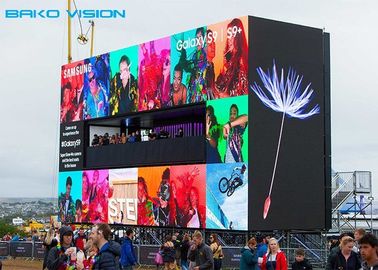

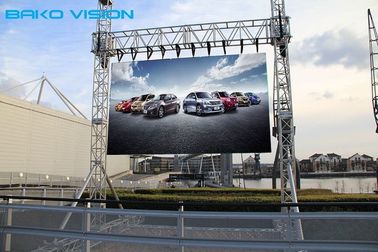

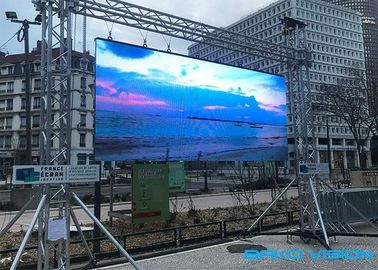

Performance shows, sports activities, advertising, information publishing, celebrating activities, hotel entertainment ect.
One type realize Multi Function for creative stage led screen, advertising led screen, sky backdrop curtain, stadium screen, dance floor and Outdoor screen for indoor use.
Specification
| Model | BOR-II-3.9 |
| Pixel Pitch | 3.9mm |
| Pixel Density | 65536 pixels/m2 |
| LED Type | SMD2525 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 500x500mm/500x1000mm |
| Cabinet Resolution | 128*128px/128*256px |
| Cabinet Weight | 8kg/14kg |
| Cabinet Material | die casting aluminum |
| Ingress Protection(front/rear) | IP65/IP54 |
| Brightness | >6500nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/8 Scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Gray Scale | 16bit |
| Power Consumption(avg.) | 420w/m2 |
| Input Voltage | AC 110/220±10%, 50~60Hz |
| Temperature(operating/storage) | -20~50°C / -40~60°C |
| Humidity(operating/storage) | 10%~90%RH / 10%~85%RH |
| MTBF | ≥1000hrs |
| Life Span | ≥100000hrs |
| Pixel Failure | <0.0003 |
After-sale Service
Two years warranty, 24h online technical support, back-visiting customer for each year
Sending technical personnel to the scene in customers significant activities.
FAQ
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
A:Sample needs 3-5 days if we have stock, mass production time needs 20 days .
A: Low MOQ, 1pc for sample checking is available
A: It usually takes 3-5 days if we can ship by DHL, UPS, FedEx or TNT. Sea shipping takes a month
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A: Yes, we offer 2-5 years warranty to our products.
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will repair them and resend them free to you if the led display got dead pixel or we can discuss the solution including re-call according to real situation.
