Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 2.97mm | Pixel Density: | 112,896 Pixels/m2 |
|---|---|---|---|
| Module Size: | 250*250mm | Cabinet Size: | 500*500/500*1000mm |
| Highlight: | P2.97 LED Video Wall Panel,SMD3528 Led Video Screen |
||
Indoor Rental LED Display P2.97 Hotselling for Performance Stage Slim aluminum structure
Key Feature
• Optional of Convex Shaped, Concave Shaped and Wave Shaped screens
• Ultra slim and lightweight
• Rental Slim aluminum structure
• Seamless splicing
• Quick lock system, easy installation
• High refresh rate and high contrast
• Wide viewing angle
• Light Weight and easy to operate
• Working status indicator available
Specification
| Model | BIR-II-2.9 |
| Pixel Pitch | 2.97mm |
| Pixel Density | 112,896 pixels/m2 |
| LED Type | SMD3528 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 500*500mm |
| Cabinet Resolution | 168*168pixels |
| Cabinet Weight | 7kg |
| Cabinet Material | aluminum |
| Ingress Protection(front/rear) | IP40/IP21 |
| Brightness | >1200nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/28 Scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Gray Scale | 16bit |
| Power Consumption(avg.) | 200w/m2 |
| Input Voltage | AC 110/220±10% 50~60Hz |
| Temperature (operating/storage) |
-20~50°C / -40~60°C |
| Humidity (operating/storage) |
10%~90%RH /10%~85%RH |
| MTBF | ≥1000hrs |
| Life Span | ≥100000hrs |
| Pixel Failure | <0.0002 |
Application

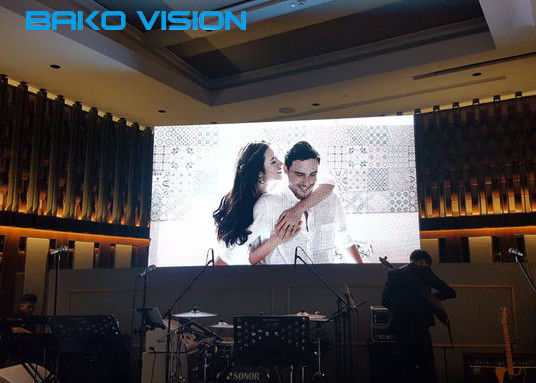

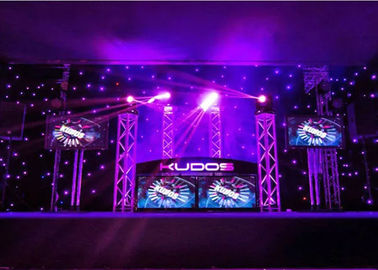

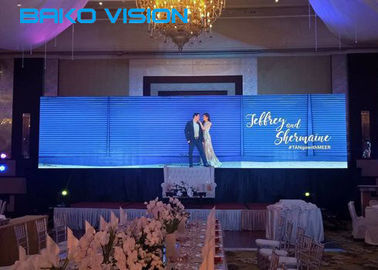

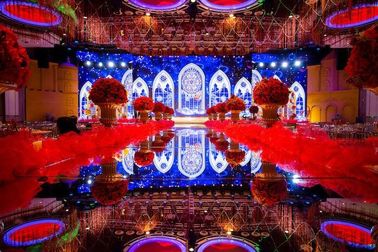

Widely used for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, outdoor stadium, and a variety of public facilities and etc.
Our service:
1. Enquiry response time: within 12hrs.
2. OEM&ODM: design and produce your customized requirements.
3. Provide distributors customized design and models we already have.
4. Protect your sales area, design idea and all your private information.
5. Top quality + reasonable price + patient after-sales service.
6. Brilliant Opto can also offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and LED large screen full color display.
