Product Details:
Payment & Shipping Terms:
|
| Product Name: | HD LED Screens | Pixel Pitch: | P1.579 / P1.875 / P2.5 / P3 |
|---|---|---|---|
| Driver IC: | MBI5124 / MBI5153 | Cabinet Size: | 480mm*480mm |
| Cabinet Material: | Die-Casting Aluminum | IP Rating: | IP40 Front / IP21 Rear |
| Brightness: | 600 - 1,000 Nits | Average Power Consumption: | < 250 W / M2 |
| Max. Power Consumption: | < 690 W / M2 | Usage: | TV Station, Meeting Room, Control Room, Broadcast, Ect. |
| Highlight: | P1.579 HD LED Screens,P1.579 4K LED Video Wall,ODM 4K HD LED Screens |
||
4K Indoor Fixed Screen Small Pixel Pitch LED Display P1.875 P2.5 Video Wall High Refresh for Meeting Room TV Station http://www.ledrentaldisplays.com
BHD Series (BHD.pdf)
4K LED Display
| Specifications | |
| Pixel Pitch(mm): | 1.5 / 1.875 / 2.5 / 3 |
| Cabinet Size(mm): | 480*480 |
| Refresh Rate(Hz): | > 1920 Hz |
| Key Point: | Used for high end meeting room, broadcast, TV station, control room, etc. |
Key Features
· Slim Design & Light Weight.

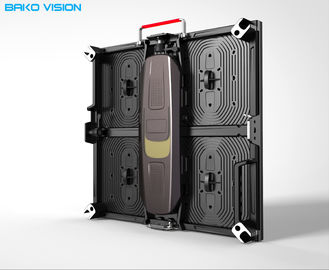

· Die-casting aluminum Cabinet.
· Front Service.
· SMD 3in1 Technology.
· Cable free at the back design.
· Virtually limitless.
· Cost-effective.
Indoor Fixed LED Screen Parameters
| Pixel Pitch | BHD-1.5 | BHD-1.8 | BHD-2.5 | BHD-3 |
| LED Type | Nationstar / Kinglight | |||
| Module Size | 240mm*240mm | |||
| Cabinet Size | 480mm*480mm | |||
| Module Resolution | 152*152 | 128*128 | 96*96 | 80*80 |
| Single Cabinet Weight | 7 kg/pc | |||
| Cabinet Material | Die-Casting Aluminum | |||
| Gray Scale | 16bit | |||
| Contrast Ratio | 4000:1 | |||
| Brightness | 600-1,000 cd/㎡ | |||
| View Angle | 160°/140° | |||
| Refresh Rate | > 1920 Hz | |||
| IP Rating | IP40/IP21 | |||
| Optimal Viewing Distance | 1.5m | 2m | 2.5m | 3m |
| Average Power Consumption | 258 W/m2 | 260 W/m2 | 215 W/m2 | 235 W/m2 |
| Maximum Power Consumption | 715 W/m2 | 690 W/m2 | 640 W/m2 | 670 W/m2 |
| Operating voltage | 110~220V AC,50/60HZ | |||
Fine Pixel Pitch Video Wall Applications
· Security monitors.
· Expos & Product launches.
· Business & Education.
· Conference rooms & Board rooms.
· Home use.
· Any perference you want.

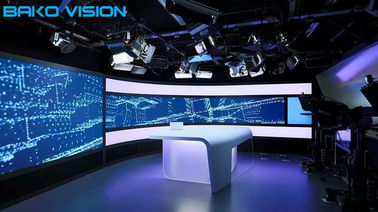

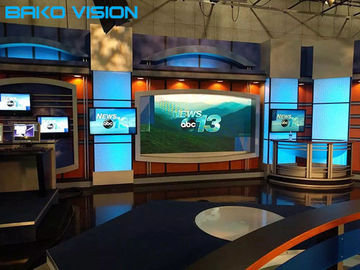

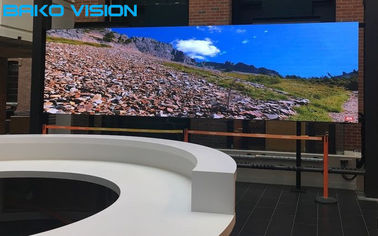

Full HD LED Panel Cases
Why choose HD LED Display ?
The indoor high-end display market is dominated by DLP rear projection display, but DLP technology has natural defects.
First of all, it is simply impossible to eliminate the 1mm spacing between display units, which can swallow at least one display pixel.
Secondly, it is also inferior to the direct light-emitting LED display in terms of color expression. The particular shortcoming is that, due to the differences between DLP display units, resulting in the uniformity of color and brightness of the entire display is difficult to control, with the increase in product run time, the difference between units will also become larger and larger, the spacing is difficult to maintain consistently, and will become more and more obvious.
The color difference between units and the adjustment of the spacing, even at a later stage of maintenance and repair, is a relatively difficult thing.
The biggest competitiveness of indoor small pixel pitch LED display is that the display is completely seamless and the display color is natural and true.
At the same time, in the later maintenance, fine pixel LED display already has a mature point-by-point correction technology, the use of more than one or two years of display can use the instrument for one-time correction of the whole screen, the operation process is simple, the effect is also very good.
Therefore, if the two are evaluated in terms of display quality, the high-density small-pitch LED display must be better than the DLP rear projection.
