Product Details:
Payment & Shipping Terms:
|
| Single Cabinet Weight: | 9 / 15 Kg/Panel | Contrast Ratio: | 4, 000:1 |
|---|---|---|---|
| Refresh Rate: | >1, 920 Hz | Brightness: | 5, 0000nits |
| Panel Size: | 500*500/500*1000 | Viewing: | 160/140 |
| Usage: | Outdoor Stage | Pixels: | 3.91 4.81 5.95 6.25 |
| Driving Mode: | 1/8 Scan | Control System: | Customized |
| Highlight: | SMD 2525 Led Display Signs,P3.91 Outdoor Led Video Display |
||
High Quality Light Weight Outdoor Rental Stage LED Display Video Wall for Fashion Wedding Show
Quick Detail
1. Slim and light weight design, convenient for installation and save transportation costs.
2. Die-casting aluminum forming process, the tolerance of cabinet frame is controlled within 0.1mm, using special connection lock, whole screen flatness and the stitching gap is less than 0.5mm.
3. Low power consumption PCB design, anti-noise cabinet design.
4. Support hanging installation and stand on floor installation, fast stitching without tools.
5. Support front service option and angle adjustment.
6. 500x500mm, and 500x1000mm can use together
Outdoor Rental LED Display Parameters:
| BOR-I-3 | BOR-I-4 | BOR-I-5 | BOR-I-6 | |
| Physical Pitch | 3.91mm | 4.81 mm | 5.95mm | 6.25 mm |
| Pixel Configuration | SMD 1921 | SMD 2525 | SMD 2525 | SMD 2727 |
| Pixel Density | 65536 pixels/m² | 43264 pixels/m² | 28224pixels/m² | 25600 pixels/m² |
| Module Dimensions (W × H) (mm) | 250 × 250 / 250×500 | 250 × 250 / 250×500 | 250 × 250 / 250×500 | 250 × 250 / 250×500 |
| Panel Dimensions (mm) | 500 × 500 × 80 500 × 1000 × 80 |
500 × 500 × 80 500 × 1000 × 80 |
500 × 500 × 80 500 × 1000 × 80 | 500 × 500 × 80 500 × 1000 × 80 |
| NO .of Modules Per Panel (W × H) | 2 × 2 | 2 × 2 | 2 × 2 | 2 × 2 |
| Physical Resolution of Module (W × H) | 64×64/64×128 | 52×52/52×104 | 42×42/42×84 | 40×40/40×80 |
| Physical Resolution of Panel (W × H) | 128×128/128×256 | 104×104/104×208 | 84×84/84×168 | 80×80/80×160 |
| Average Power Consumption | 75 /150 W/m² | 75 /150 W/m² | 75 /150 W/m² | 75 /150 W/m² |
| Max Power Consumption | 225 /550 W/m² | 225 /550 W/m²l | 225 /550 W/m² | 225 /550 W/m² |
| Servicing | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP 65/ IP 54 | IP 65/ IP 54 | IP 65/ IP 54 | IP 65/ IP 54 |
| Scan Method | 1/16 Scan | 1/13 Scan | 1/7 Scan | 1/10 Scan |

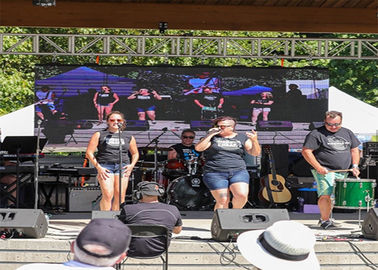

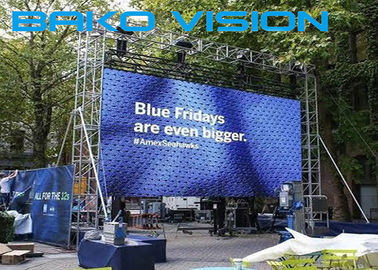

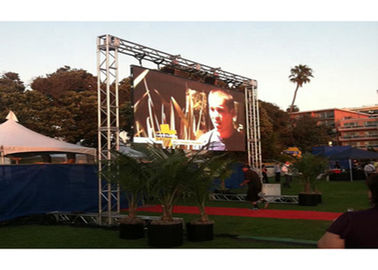

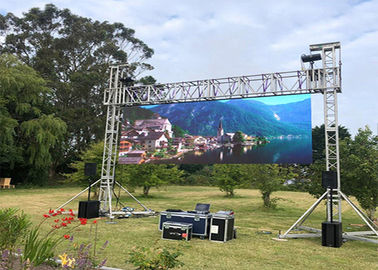

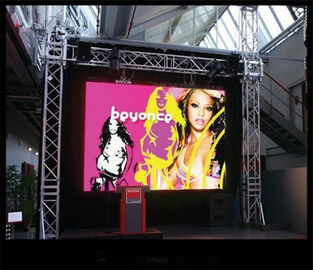

Outdoor Rental LED Display Cases:
Outdoor Rental LED Display Applications:
| Business Organizations | super market, shopping mall, office building, industrial park, exclusive agency, chain shop, hotel, restaurant, travel agency, pharmacy, etc. |
| Financial Organizations | banks, security company, insurance company, post office, hospital, school, etc. |
| Public Places | subway, airport, train/bus station, gas station, toll station, bookstore, park, exhibition hall, stadium, museum, convention center, ticket center, HR market, lottery center, plaza, commercial building, parking lot, etc. |
| Entertainments | movie theater, fitness hall, country club, night club, massage room, bar, cafe, Internet bar, beauty shop, golf course, casino, etc. |
Rental LED Display,LED Screen Hire,Die-casting Aluminum Cabinet,Electronics Display,Curve LED Display Screen,LED Sign Board,LED Message Board
Best Viewing Distance of Rental led display:
P3 led display for the best viewing distance between 3-10m
P4 led display for the best viewing distance between 4-15m
P5 led display for the best viewing distance between 5-20m
P6 led display for the best viewing distance between 6-25m
P8 led display for the best viewing distance between 8-30m
P10 led display for the best viewing distance between 10-33m
P12 led display for the best viewing distance between 12-40m
P16 led display for the best viewing distance between 15-45m
About us!
Shenzhen BAKO VISION Technology Co.,Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holding end professional customers among domestic and overseas markets.
Do not be hesitate to contact us if you have any quiry!
FAQ
Q1. Do you provide samples?is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q2.How to order?
A:Please send us your purchase order by Email or we can make you proforma invoice under your request.
We need to know the following information for your order before sending you PI.
1)Product information-Quantity,Specification(Size,Material,Technological if needed and Packing requirements etc.
2)Delivery time required.
3)Shipping information-Company name,Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if there's any in China.
Q3. Do you offer guarantee for the products?
A: Yes,we offer 2-5 years warranty to our products.
