Product Details:
Payment & Shipping Terms:
|
| Cabinet Weight: | 4.6kg/Panel | Cabinet Material: | Die Casting |
|---|---|---|---|
| Brightness: | >800nits | Gray Scale: | 16bits |
| Refresh Rate: | ≥ 1500Hz | MTBF: | ≥1000 Hours |
| Pixel Failure: | <0.0003 | Power Supply: | AC 110/220±10% 50~60Hz |
| Highlight: | hd led video wall,modular led display |
||
P1.579mm Small Pitch HD 480x480mm Customized Indoor LED display Screen for Meeting Room 2-BHD-Tia.pdf
HD Samll Pitch LED Display Features&Advantages
♦ TUV EMC Certificated
♦ Both Front and Rear Service Available
♦ High Definition Indoor Display
♦ Unsurpassed Color Uniformity
♦ Fast Installation and Easy Maintenance
♦ Superior Electronic Features
♦ Slim, Light Weight and Quiet
| Module | |
| Pixel Pitch | 1.579mm |
| Pixel Density | 401,956 pixel/sqm |
| Physical Resolution (W * H) | 152* 152mm |
| Module Size | 240 * 240mm |
| LED Type | SMD1010 |
| LED Configuration | 1R1G1B |
| Cabinet | |
| Resolution (W * H) | 304* 304mm |
| Dimension(mm)(W * H) | 480*480mm |
| Cabinet Material | Die-Casting Aluminum |
| Cabinet Weight | 7kg/panel |
| IP Rating(Front/Rear) | IP40 |
| Screen | |
| Brightness | >800nits |
| Input Voltage | AC 110/220±10% 50~60Hz |
| Gray Scale | 16bits |
| Refresh Rate | >3840Hz |
| Dot Defects Rate | <0.0001 |
| Viewing Angle (H/V) | 160°/140° |
| Life Span | ≥100000hrs |
| Power Consumption(avg.) | 640W/m² |
| Operating Temp/Humidity | ﹣20℃～50℃ / 10%～90%RH |
| Storage Temp/Humidity | ﹣40℃～60℃ / 10%～85%RH |

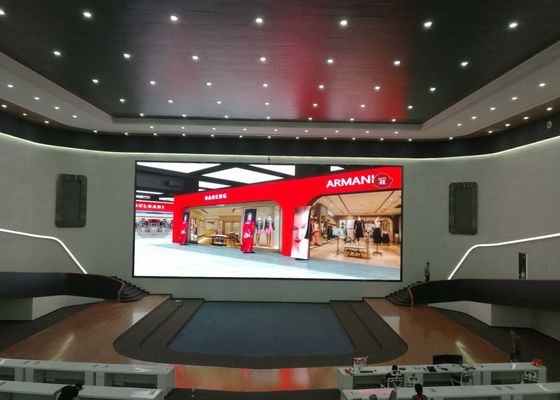

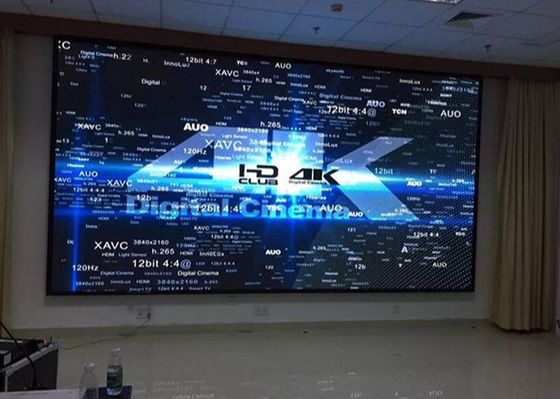

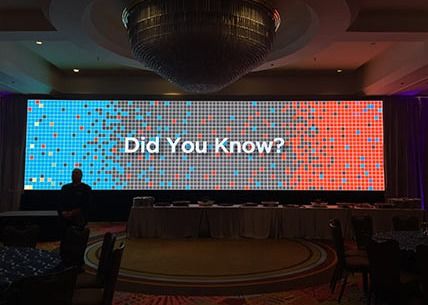

HD Samll Pitch LED Display Applications
FAQ
1. How many models are there in this series?
Yes, For indoor fine pitch HD led display we have P1.25mm P1.56mm P1.66mm P1.92 mm.
2. How about your warranty?
2 years warranty and lifetime maintenance
3. What's your delivery time?
Within 30 days after we receiving deposit.
4. What's your package and shipping way?
Goods are packed with wooden case or flight case; delivered by air shipping.road shipping or sea shipping
Trade Terms
1. Package: Wooden package, Flight case.
2. Payment: T/T, 30% deposits, 70% balance before delivery
3. Shipping port: Shenzhen
4. Warranty time: 2years
5. Delivery time:20-25 working days
