Product Details:
Payment & Shipping Terms:
|
| Single Cabinet Weight: | 9 / 15 Kg/Panel | Gray Scale: | Gray Scale |
|---|---|---|---|
| Colours: | 281 Trillion | Contrast Ratio: | 4, 000:1 |
| Refresh Rate: | >1, 920 Hz | Brightness: | 5, 0000nits |
| Panel Size: | 500*500/500*1000 | Viewing: | 160/140 |
| Usage: | Outdoor Stage | Pixels: | 3.91 4.81 5.95 6.25 |
| Highlight: | outdoor led screen hire,events led display |
||
Outdoor Light Weight Portable Rental LED Display Screen Video Wall for Stage Show6-BOR-II-Tia.pdf
Quick Detail
Light Weight
Easy Installation and Maintenance
High Contrast Ratio
Noiseless Design
Black SMD LED Lamp
Great Performance

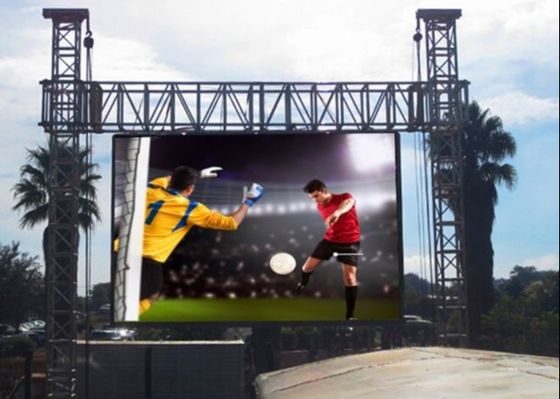

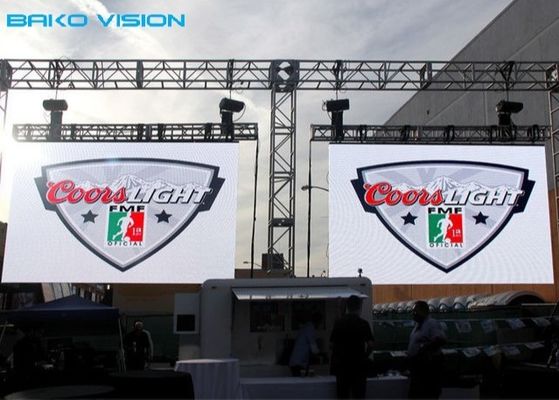

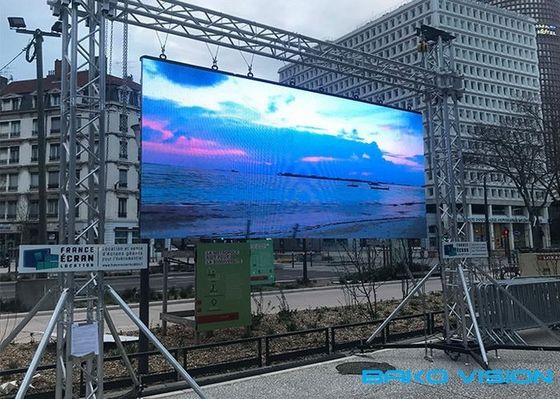

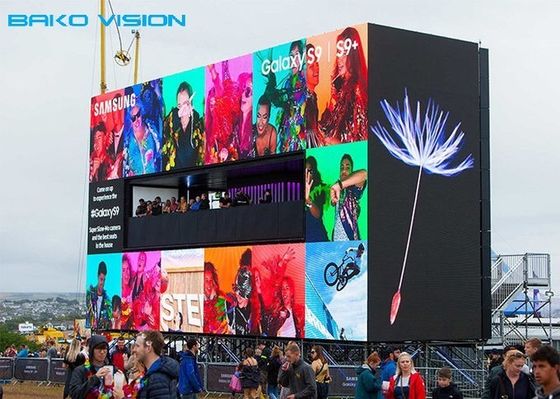

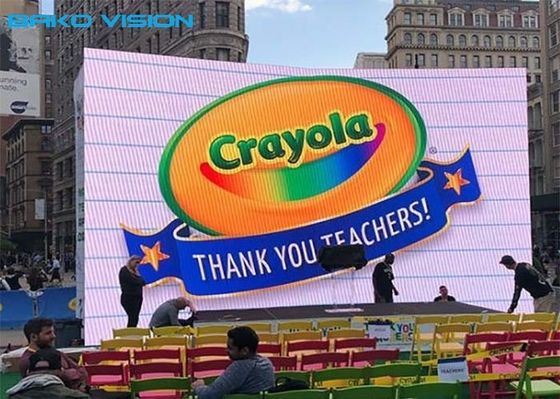

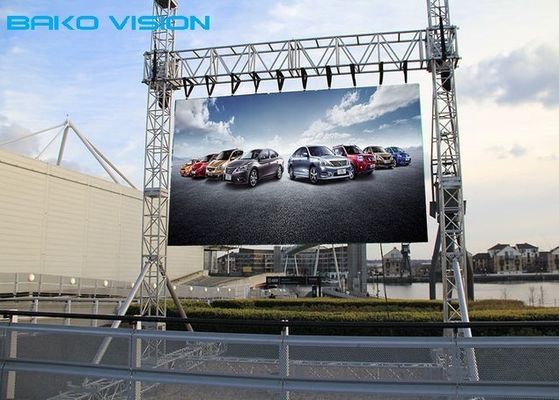

Outdoor Rental LED Display Cases:
Outdoor Rental LED Display Parameters:
| BOR-II-3 | BOR-II-4 | BOR-II-5 | |
| Physical Pitch(mm) | 3.91 mm | 4.81 mm | 5.95 mm |
| Pixel Configuration | SMD 1921 | SMD 2525 / 2727 | SMD 2525 / 2727 |
| Pixel Density | 65,536 pixels/m² | 43,264 pixels/m² | 28,224 pixels/m² |
| Module Dimensions (W × H) (mm) | 250x250 | 250x250 | 250x250 |
| Panel Dimensions (mm) | 500x500x80/ 500x1000x80 |
500x500x80/ 500x1000x80 |
500x500x80/ 500x1000x80 |
| No. of Modules Per Panel (W × H) | 2x2/2x4 | 2*2/2*4 | 2*2/2*4 |
| Physical Resolution of Module (W x H) | 64 × 64 | 52 × 52 | 42 × 42 |
| Physical Resolution of Panel (W x H) | 128 × 128 / 128 × 256 | 104 × 104 / 104 × 208 | 84 × 84 / 84 × 168 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Average Power Consumption | 400 W / m2 | 325 W / m2 | 310 W / m2 |
| Max Power Consumption | 800 W / m2 | 780 W / m2 | 750 W / m2 |
| Max Stacking | 20/10 | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 | 20/10 |
| Servicing | Front / Rear | Front / Rear | Front / Rear |
| IP Rating(Front/Rear) | IP65/IP54 | IP65/IP54 | IP65/IP54 |
| Scan Method | 1/16 Scan | 1/13 Scan | 1/7 Scan |
Outdoor Rental LED Display Description:
1. Smart locking system, screw driver free installation
2. Indication lights to show status of power and signal status
3, Cost effective cabinet unit
4. Ultra Slim and light weight (only 9Kg/panel), portable handy
5. deepest blackness levels and light absorbing techniques
6. High gray level and good color uniformity with brand IC, led lamp
7. High precision CNC maching, precision up to 0.1mm
8. Good performance LED chip
9. 2 years warranty, easy to install & maintenance
10. Perfect uniformity and no mosaic
11. cabinets,fanless design with noiseless power supply
Our Service
1.Pre-sale service:
Reply enquiries in 24 hours.
Market research and forecast for customer.
Provide unique and professional solutions based on customer's requirement
Data sheet and samples offer.
Other services, such as special packing design, factory visiting and so on.
2.In-sale service:
Tracking report in producing.
Quality test report for every order.
Photos and videos as per customer's requirement.
Free spare parts.
3.After-sale service:
Lifetime free maintenance and upgrade.
Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
Customer satisfaction tracking report.
Free technician training.
Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
Special service for big project, such as stadium, exhibitions, squares and so on.
About us!
Shenzhen BAKO VISION Technology Co.,Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holding end professional customers among domestic and overseas markets.
Do not be hesitate to contact us if you have any quiry!
FAQ
Q1. Do you provide samples?is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q2.How to order?
A:Please send us your purchase order by Email or we can make you proforma invoice under your request.
We need to know the following information for your order before sending you PI.
1)Product information-Quantity,Specification(Size,Material,Technological if needed and Packing requirements etc.
2)Delivery time required.
3)Shipping information-Company name,Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if there's any in China.
Q3. Do you offer guarantee for the products?
A: Yes,we offer 2-5 years warranty to our products.
