Product Details:
Payment & Shipping Terms:
|
| Pitch Pixel: | P3.91, P5.2, P6.25, P8.928 | Module Dimension (WxH): | 250*250mm |
|---|---|---|---|
| Cabinet Dimension (WxH): | 500*1000mm | Cabinet Material: | Aluminum |
| Cabinet Weight: | 25kg/pc | Brightness: | 2,000-4,500 Nits |
| Maintenance Way: | Front | IP Rating: | IP65 |
| Warranty: | 2-5 Years | Life Span: | 100,000 Hours |
| Highlight: | led screen stage backdrop,concert led screen |
||
Rental Dance Floor LED Display DJ Booth P3.91 Standing Screen for Wedding Concert Stage
BD Series (BD.pdf)

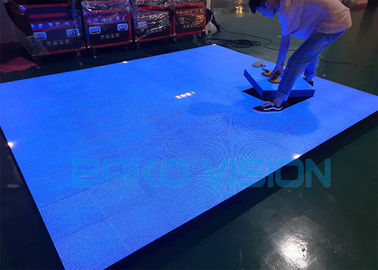

Dance Floor LED Screen
| Specifications | |
| Pixel Pitch: | 3.91mm / 5.2mm / 6.25mm / 8.928mm |
| Bearing Capacity: | 1.8 tons per square meter |
| Refresh Rate: | > 1920Hz |
| Key Point: | It is attracting more traffics, have fun with it |
Key Features
· Same Operation Way With the Regular LED Screen.
· Easy To Install And Maintenance.
· Very Durable, is Able to Support The SUV Car On it.
· Interactive And Non-interactive Design Accepted.
· High Brightness and Good Visual Display Performance.
Rental Dance Standing Display Basic Parameters
| BD-3 | BD-5 | BD-6 | BD-8 | |
| Physical Pitch | 3.91 mm | 5.2 mm | 6.25 mm | 8.928 mm |
| Pixel Configuration | SMD 1921 | SMD 1921 | SMD 2727 | SMD 3535 |
| Pixel Density | 65,536 pixels/m² | 36,864 pixels/m² | 25,600 pixels/m² | 25,600 pixels/m² |
| Module Dimensions (W × H) (mm) | 250 × 250 | |||
| Panel Dimensions (mm) | 500 × 1000 | |||
| Physical Resolution of Module (W × H) | 64 x 64 | 48 x 48 | 40 x 40 | 28 x 28 |
| Physical Resolution of Panel (W × H) | 128 x 256 | 96 x 192 | 80 x 160 | 56 x 112 |
| Panel Material | Aluminum | |||
| Single Cabinet Weight | 20 kg/panel | 25 kg/panel | 24 kg/panel | 25 kg/panel |
| ray Scale | 16 bit | |||
| Colours | 281 trillion | |||
| Contrast Ratio | 4,000 : 1 | |||
| Average Power Consumption | 300 W / m² | |||
| Max Power Consumption | 880 W / m² | 880 W / m² | 600 W / m² | 600 W / m² |
| Operating Temp/Humidity | -10℃-60℃ / 10%-60% | |||
| Storage Temp/Humidity | -30℃-60℃ / 10%-60% | |||
| Refresh Rate | >1,920 Hz | |||
| Brightness | 2,500 nits | 2,000 nits | 4,500 nits | 4,500 nits |
| Horizontal Viewing Angle | 160° | |||
| Vertical Viewing Angle | 140° | |||
| Expected Lifetime | 100, 000 Hrs | |||
| Best Viewing Distance | 4m | 5m | 6m | 9m |
| Scan Method | 1 / 16 Scan | 1 / 6 Scan | 1 / 5 Scan | 1 / 3 Scan |
| Maintenance Way | Front | |||
| IP Rating | IP 65 | |||
Where can we use the floor LED screen ? What benefits can it bring ?
As long as you need to attract traffic, the floor LED screen will become your best weapon. For example, shopping malls, exhibitions, amusement parks, bars, stages, urban greening, landmark buildings, corporate logos, square markets, automobile 4S shop.
1. Increase in traffic - It can bring customers new and magical fun experiences, it can attract customers to your event venue.
2. Increase the profits of the surrounding stores - It can indirectly increase the purchase amount of the store, increase the local business value of the place, and attract more brands to stay.
3. Stimulate the audience’s senses and enhance the viewing experience - When your competitors are still using the LED screens, considerable posters to catch the customers, you are already making the entire stage performance into their body and blood, which can allow you to compete against to have a better stage effect.
4. Increase the fun of entertainment
5. In the place of public welfare activities, it is like a city landmark
Wedding Booth Panel Case Study
