Product Details:
Payment & Shipping Terms:
|
| Pixel Configuration: | SMD3535 | IP Rating(Front/Rear): | IP65/ IP54 |
|---|---|---|---|
| Expected Lifetime: | 100,000 Hrs | Module Demensions (W*H)(mm): | 320*160 |
| Panel Dimensions (mm): | 960 × 960 × 150 | Operating Temp / Humidity: | -20ºC-50ºC/10%-90% |
| Panel Material: | Steel/ Aluminum | Driver IC: | MBI 5124/ MBI 5123 |
| Highlight: | roadside led display,street led screen |
||
P8mm Rear Accrss Colorful High Brightness Mupi Advertising Custom Size LED TV screen Walls

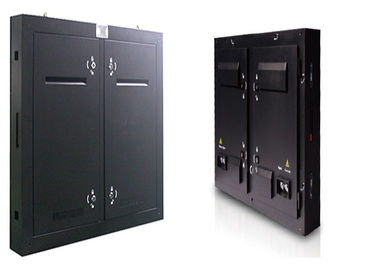

Cabinet structure is with light weight and standardization: adopting high strength metal process, achieving high precision, light weight and other outstanding features; uniform image picture with high refresh frequency and gray level to realize the vivid effect.
Digital Billboard Features
1. Fast and flexible installation
2. High-end display technology, the screen is more uniform and good
3. The use of the latest anti-collision plate technology guarantees good security
4. Gap adjustable, seamless stitching
5. No noise, low power consumption
6. Excellent thermal performance
7. Easy to operate,Easy to maintain
planning and design,high brightness , high reliability,and can be based on outdoor environment brightness ,humidity,temperature automatic adjustment ,energy-saving, intelligent control.
Digital Billboard Specifications, the catalogue can be download⇒2. Outdoor Fixed Screen-Rear Service.pdf
| BOF-8 | |
| Physical Pitch | 8mm |
| Pixel Configuration | SMD 2727 |
| Pixel Density | 22,500 pixels/m² |
| Module Dimensions(W*H)(mm) | 320*320 |
| Panel Dimensions(mm) | 960*960*150 |
| NO. of Modules Per Panel (W*H) | 3*6 |
| Physical Resolution of Module (W*H) | 40*20 |
| Physical Resolution of Panel (W*H) | 120*120 |
| Panel Material | Steel/ Aluminum |
| Colors | 281 trillion |
| Brightness | >6,500 nits |
| Weight (kg/m²) | 65/45 |
| Processing | 16 bit |
| Refresh Rate | >1920 Hz |
| IP Rating | IP65/ IP54 |
| Viewing Angle | V:160 degree H: 140 degree |
| Expected Lifetime | 100,000 Hrs |
| Operating Temp/Humidity | -20ºC-50ºC/ 10%-90% |
| Storage Temp/Humidity | -20ºC-50ºC/ 10%-90% |
| Avg./ Max. Power Consumption | 360/900W/ panel |
| Servicing | Front/Rear |
Digital Billboard Procesure Details
High bearing strength and fast installation through the connecting plate. With flexible installation, such as embedded installation, post mounting,etc. It would not occur the extrusion and deformation phenomenon between the modules when the display is working under the high and low temperatures.
100% waterproof module design,protection level IP65,PCS connections replace the
traditional electronic line which is safe and reliable.

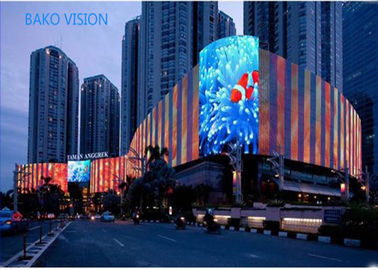

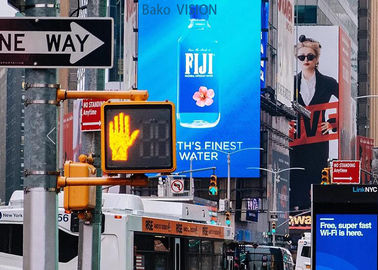

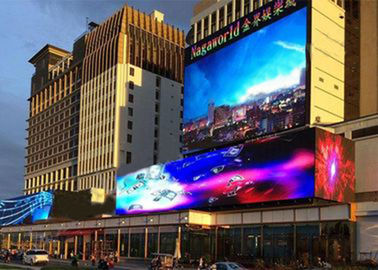

Digital Billboard Images
High voltage thermal pull out plug in application: It will not strike fire during pull out the plug process, and fully accomplish the phenomenon such as waterproof, anti-interference, corrosion resistance,etc.
IP65 Waiterproof, you can click the photo as follow and then you will get the video. ↓↓↓↓↓↓↓↓
Intelligent Software System
Intellighent control and player system by cloud technology.
Time management and real time minitoring
3. Digital Billboard Multiple installation methods
Digital Billboard Applications:
Ideal for dazzling different events, such as Stage, Concert, Fashion Show, Wedding, Conference, Building, Hotel, Club & Bars, Festival, etc.
About us
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
FAQ
1. I would like to ask you if it's possible to have my logo on the product.
A: We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extra-service,so a little bit extra service fee is needed.
2. How to install it after I received it?
We will offer you the drawing to guide you for installation, we could also offer drawing, software set up drawing or photo or arrange our engineer to help if needed.
3. What is drive method, driving IC and power supply?
Drive method: always we use static, 1/4 scan, 1/8 scan, 1/16 scan, the latter one contributes to less brightness than the former. We always use the static outdoor, and use the different kinds of scan indoor.
Driving IC is the generic term for several kinds of IC, that are used to control the LED lamps, and as a bridge between the control system and lamps.
Power supply: a kind of device that used as a transfer from 220V AC into 5V DC. It always seems like a box in the cabinet.
