Product Details:
Payment & Shipping Terms:
|
| Name: | LED Curtain Display | Physical Pitch: | 15.625mm, 31.25mm, 25mm |
|---|---|---|---|
| Cabinet Material: | Aluminum | IP Rating: | IP65 |
| Maintenance Way: | Front&Rear | Refresh Rate: | 3840Hz |
| Brightness: | 10,000nits | Transparency: | 35%-70% |
| Colours: | 281 Trillion | Contrast Ratio: | 2,000:1 |
| Highlight: | led facade display,flexible led video curtain |
||
Outdoor Curtain LED Display Transparent Mesh Screen Glass Window Video Wall for Building
BOC Series (BOC.pdf)

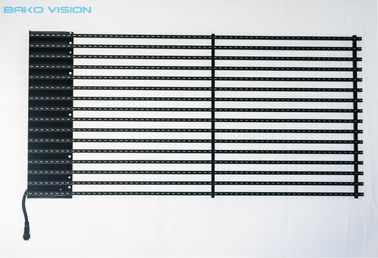

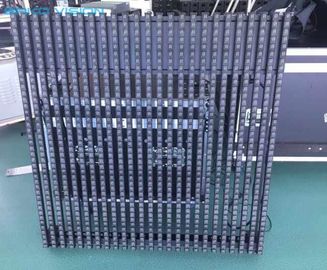

Outdoor Curtain LED Display
| Specifications | |
| Pixel Pitch(mm): | 15.625 / 25 / 31.25 |
| Cabinet Size(mm): | 500*1000 / 1000*500 |
| Refresh Rate(Hz): | 3840 Hz |
| Key Point: | High Transparency, High Brightness |
Window Video Wall Features
· Only 50% Power Consumption Comparing to Conventional Displays.
· Ultra-thin, up to 13.5kg/panel.
· Both Front and Rear for Maintenance.
· Narrow PCB Design, 35%-70% High Transparency.
· Fanless and Noiseless.
Transparent LED Screen Basic Parameters
| BOC-15.625 (double line) | BOC-15.625 | BOC-3115 | BOC-25 | BOC-31 | |
| Physical Pitch (mm)(H*V) | 15.625 | 15.625 | 31.25*15.6 | 25 | 31.25*31.25 |
| Pixel Density (pixels/m2) | 4,096 | 4096 | 2,048 | 1,600 | 1,024 |
| Module Size (W*H)(mm) | 23.8*1000 | 1000*10 | 10*1000 | 10*1500 | 1000*10 |
| Module Resolution (H*V) | 2*64 | 1*64 | 64*1 | 1*60 | 32*1 |
| Cabinet Size (W*H)(mm) | 500*1000 | 1000*500 | 500*1000 | 500*1500 | 500*1000 |
| Panel Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Cabinet Weight (kg/m2) | 13.5 | 7.5 | 7.5 | 9 | 9 |
| Average Power Consumption (W/m2) | 272 | 272 | 300 | 360 | 340 |
| Max. Power Consumption (W/m2) | 680 | 680 | 600 | 480 | 450 |
| Brightness(nits) | 9,000 | 10,000 | 10,000 | 10,000 | 10,000 |
| Refresh Rate (Hz) | 3840 | ||||
| Maintenance Way | Front & Rear | ||||
| Transparency | 35% | 70% | 68% | 60% | 68% |
| IP Rating (Front/Rear) | IP65 | ||||
Outdoor Board Installation Ways

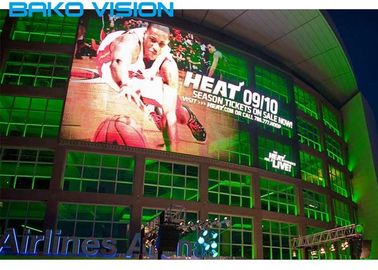

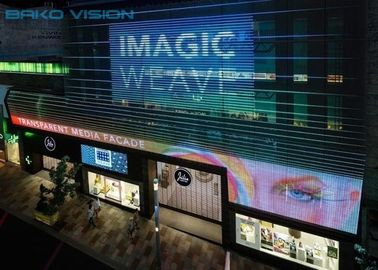

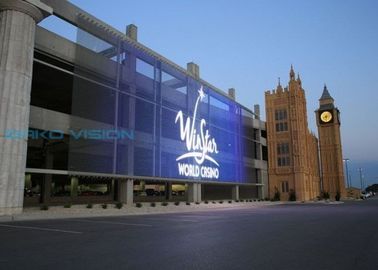

Curtain LED Display Case Study
About Bako Vision
FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.
Q2. What is your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery. Will show you the Professional Quality Control Photos before you pay the balance. Then you could see everything by your eyes before the shipment.
Q3. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty for your products.
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q7: How can I get technology support?
A:1. We could give you the free training in our factory, which include system use, system maintenance and equipment protection ect.
2. We could teach you by remotely if anything not clear.
