Product Details:
Payment & Shipping Terms:
|
| Physical Pitch: | P3.91/P4.81mm | Module Size: | 250*250mm |
|---|---|---|---|
| Cabinet Size: | 500*500mm/500*1000mm | No. Of Modules Per Panel (W*H): | 2*2/2*4 |
| Panel Material: | Die-casting | Weight: | 9kg/ 15kg Per Panel |
| Gray Scale: | 16 Bit | Colours: | 281 Trillion |
| Contrast Ratio: | 2,000:1 | Avg Power Consumption: | 310W/sqm |
| Max Power Consumption: | 750W/sqm | Brightness: | 6000nits |
| Refresh Rate: | 1920Hz | Vertical Viewing Angle: | 160° |
| Horizontal Viewing Angle: | 140° | IP Rating: | IP65 |
| Operating Temp/Humidity: | -20℃-60℃/10%-60% | Storage Temp/Humidity: | -30℃-60℃/10%-60% |
| Highlight: | outdoor led screen hire,events led display |
||

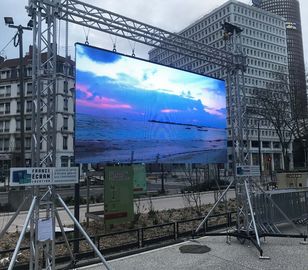

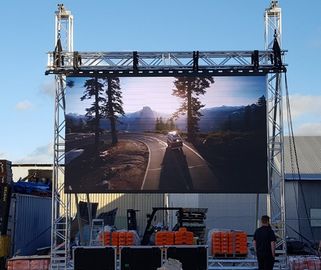

Outdoor Rental LED Display P3.91 Outdoor Rental LED Display Screen Video Wall
6-BOR-II.pdf
Outdoor Rental LED Display Parameter:
| BOR-II-3 | BOR-II-4 | |
| Physical Pitch | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1921 | SMD2525 |
| Pixel Density | 65,536 pixels/m² | 43,264 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250/250*500 | 250*250/250*500 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 |
| NO. of Modules Per Panel (W*H) | 2*2 | 2*2 |
| Physical Resolution of Module(W*H)(mm) | 64*64/64*128 | 52*52/52*104 |
| Physical Resolution of Panel(W*H) | 128*128/128*256 | 104*104/104*208 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum |
| Single Cabinet Weight | 9/15kg/panel | 9/15kg/panel |
| Processing | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000:1 | 4,000:1 |
| Refresh Rate | >1,920 Hz | >1,920 Hz |
| Brightness | >6,000 nits | >6,000 nits |
| Horizontal Viewing Angle | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear |
| IP Rating(Front/Rear) | IP 65/IP54 | IP 65/IP54 |
Outdoor Rental LED Display Feature:
1.Light weight: it can be loaded by one person, quick assembling, quick maintain, reduce. carrying, save costs.
2.Thin cabinet: the thickness is only 80mm, the space of the screen is small , and the entire screen will be more beautiful.
3.Gray Scale, Refresh Rate, Brightness
4. Quick dismounting: adopt fast locking structure connected, firm, quick, beautiful. Tools free installation. Cable-less between modules.
5.Concave and convex setup support: client can asselbly any shape of the led wall display to make different show effect compare with common led display panel.
6.Outdoor Rated:out door waterproof with IP65; suitable brightness adjustable for outdoor day and night; deep black levels, contrast ratio 4000:1.
7. Dual use screen: Can be floor screen
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.
Q2. What is your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q8: How can I get technology support?
A:1,We will train in our factory and send video for showing. The training include system use, system maintenance and equipment protection.
