Product Details:
Payment & Shipping Terms:
|
Pixel Configuration: | SMD2121 | Control System: | Novastar |
---|---|---|---|
Viewing Angle: | 160°/140° | Refresh Rate: | >1920Hz |
Contrast Ratio: | 4000:1 | Panel Dimensions: | Customized |
Highlight: | stage led video wall,led video wall display |
P5 HD Indoor Fixed LED Display Screen Led Wall
Indoor Fixed LED Screen Features and Advantages:
Indoor Fixed LED Screen Specification:
Physical Pitch | 5mm |
Pixel Configuration | SMD2121 |
Pixel Density | 40,000 pixels/Sqm |
Module Dimensions(W x H) (mm) | 320 x 160 |
Panel Dimensions (mm) | 1280 x 960 |
NO. of Modules Per Panel (W x H) | 4x 6 |
Physical Resolution of Module (W x H) | 64 x 32 |
Physical Resolution of Panel (W x H) | 256 x 192 |
Panel Material | Steel / Aluminum |
Scan Method | 1/16 Scan |
Gray Scale | 16bit |
Colours | 281 trillion |
Contrast Ratio | 4,000 : 1 |
Average Power Consumption | 120 W /Sqm |
Max Power Consumption | 400 W /Sqm |
Operating Temp/Humidity | -10℃ - 60℃ / 10% - 60% |
Storage Temp/Humidity | -30℃ - 60℃ / 10% - 60% |
Refresh Rate | >1,920Hz |
Brightness | 900-1,200nits |
Horizontal Viewing Angle | 160° |
Vertical Viewing Angle | 140° |
Expected Lifetime | 100,000 Hrs |
Servicing | Front / Rear |
IP Rating (Front/Rear) | IP 21 |

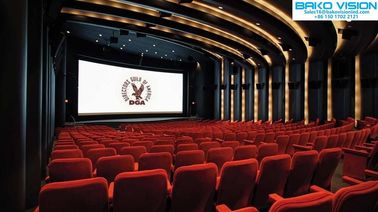

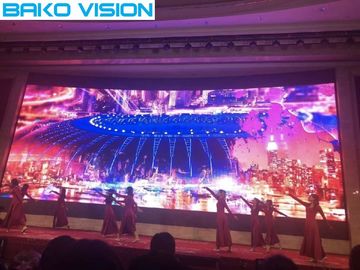

Indoor Fixed LED Screen Case:
Our service
Warranty
1.We guaratee all our display, modules, spare parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty, we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you antil it recovers well by remote control!
Delivery time
1.Delivery time, Accompalish manufacturing within 25 days after receiving the deposit.
2.Before Delivery, we will test the display , and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.
Installation
1.We can assist the training and technical support for the customer in the factory, if the customer require so.
2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need.
