Product Details:
Payment & Shipping Terms:
|
| Physical Pitch: | P31.25-15.625 | Module Size: | 10*1000mm |
|---|---|---|---|
| Cabinet Size: | 500*1000mm | Weight: | 7.5kg/panel |
| Gray Scale: | 16 Bit | Colours: | 281 Trillion |
| Contrast Ratio: | 2,000:1 | Avg Power Consumption: | 300W/sqm |
| Max Power Consumption: | 600W/sqm | Brightness: | 10000nits |
| Refresh Rate: | 3840Hz | Transparency: | 68% |
| IP Rating: | IP65 | ||
| Highlight: | led mesh screen,led facade display |
||

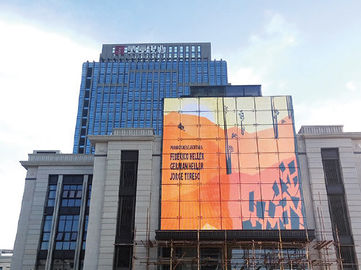

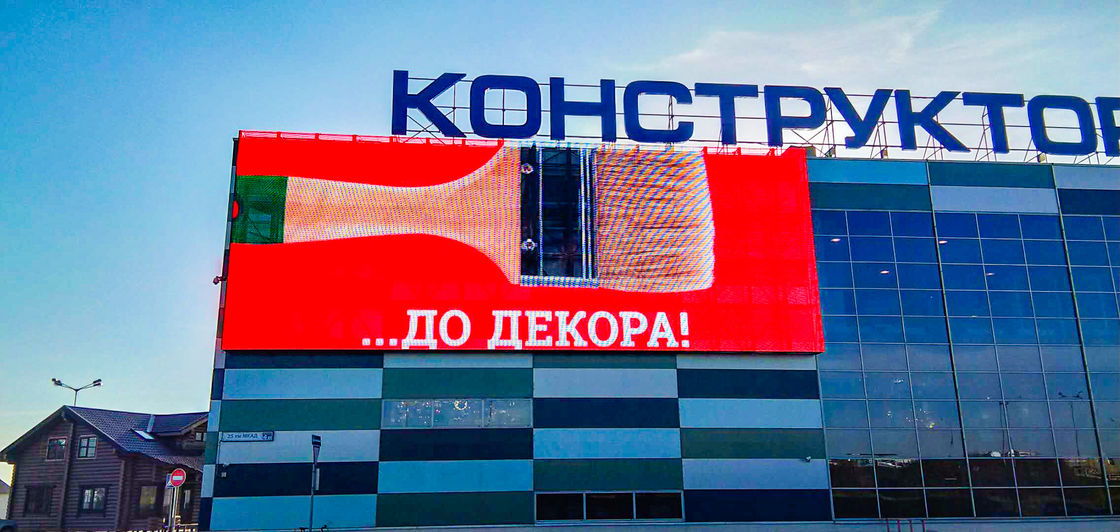

LED Curtain Display High Transparency High Brightness Outdoor Curtain Display
Ultra Lightweight and Slim
LED Curtain Display Features:
Lower Power Consumption
Only 50% power consumption comparing to conventional displays
Special LED selected and high efficiency power supply selected
High Protection Level
IP65 for whole screen, complete waterproof for various weather conditions
Screen life is inscreased significantly
Exceptionally Lightweight and Slim
7.5~13.5 kg/cabinet gross weight
Easy to install and save installation space
High Transparency and High Brightness
35~70% transparency rate, see through, suitable for glass wall mounting
10,000 nits brighness, for all outdoor environment
Vivid colors
LED Curtain Display Parameters:
| BOC-15.625 (Double line) | BOC-15.625 | BOC-3115 | |
| Physical Pitch | 15.625 mm | 15.625 mm | (H)31.25 mm (W)15.625mm |
| Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| Pixel Density | 4096 pixels/m² | 4096 pixels/m² | 2048 pixels/m² |
| Moudule Dimensions(W*H)(mm) | 23.8*1000 | 10*1000 | 10*1000 |
| Panel Dimensions (mm) | 500*1000 | 1000*500 | 500*1000 |
| Physical Resolution of Module (W*H) | 2*64 | 1*64 | 64*1 |
| Panel Material | Aluminum | Aluminum | Aluminum |
| Weight | 13.5 kg/panel | 7.5 kg/panel | 7.5 kg/panel |
| Average Power Cousumption | 272 W/m² | 272 W/m² | 300 W/m² |
| Max Power Consumption | 680 W/m² | 680 W/m² | 600 W/m² |
| Refresh Rate | >3840 Hz | >3840 Hz | >3840 Hz |
| Brightness | >9000 nits | >10000 nits | >10000 nits |
| Transparency | 35% | 70% | 68% |
| IP Rating | IP65 | IP65 | IP65 |
| Scan Method | Static Scanning | Static Scanning | Static Scanning |
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005,a world class manufacturer of
technologically advanced LED displays,it is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION product lines have include I/O rantal,I/O fixed, UHD fine pitch, transparent screen,advertising poster,foldable screen… meanwhile, based on our experienced R&D team,and comprehensive management , we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
FAQ
Q1:How to choose a proper led screen for your need?
A:You just need to think of 3 simple questions when you choose a led screen by yourself.
1.Will you use it indoor or outdoor?
2.Is it for rental use(need to be moved from one place to another place very often) or for fixed installation(to be installed in one place forever)?
3.what is the appoximate size of the led screen you would like to purchase?
Q2:Which pixel pitch should i choose?
A:There are many different pixel pitch from 1.667--20,25,30mm, there is a roughly principle-usually small pixel(1.667mm-10mm) used for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen(for example high way huge advertisement).
Q3:Which control system should i choose?
A:There is both synchronous and asynchronous control system for led screen on the market,for big size led screen(usually more than 20sqm) need to use synchronous control system,below 20sqm it's up to you to use syn or asyn.But asyn control system's refresh rate is much lower than sync control system and for asyn control system, you can choose to use wifi,3G,4G etc wireless control.
