Product Details:
Payment & Shipping Terms:
|
| Physical Pitch: | P2.5mm | Module Size: | 240*240mm |
|---|---|---|---|
| Cabinet Size: | 480*480mm | No. Of Modules Per Panel (W*H): | 2*2 |
| Panel Material: | Die-casting | Weight: | 7kg/panel |
| Gray Scale: | 16 Bit | Colours: | 281 Trillion |
| Contrast Ratio: | 2,000:1 | Avg Power Consumption: | 215W |
| Max Power Consumption: | 640W | Brightness: | 800~1000nits |
| Refresh Rate: | 1920Hz | Vertical Viewing Angle: | 160° |
| Horizontal Viewing Angle: | 140° | Expect Lifetime: | 100,000Hrs |
| Servicing: | Rear/Front | IP Rating: | IP40 |
| Operating Temp/Humidity: | -10℃-60℃/10%-60% | Storage Temp/Humidity: | -30℃-60℃/10%-60% |
| Highlight: | front maintenance led display,outdoor full color led screen |
||

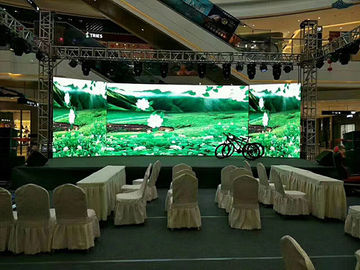

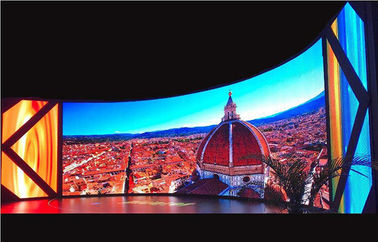

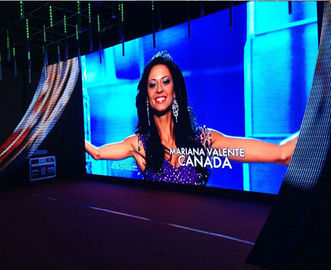

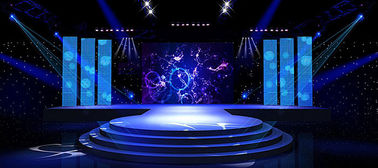

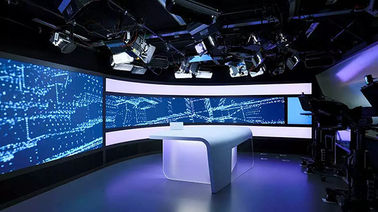

Indoor Fixed LED Display High Definition Pixels for stage and Fixed Install
Both Front and Rear Service Available
Unsurpassed Color Uniformity
Unique color calibration process;
Tight bin selection for LED wavelength;
Deep black levels, contrast ratio 4000:1
Fast Installation and Easy Maintenance
Truss hanging anf ground support both available;
Cable-less between modules;
Front and rear access;
Tools free installation
Slim, Light Weight and Quiet
480*480mm cabinet;
80mm thickness, 7kg/cabinet;
Fanless design
Superior Electrical Features
Dual signal backup port;
UI LCD monitoring display indicates the status (for option)
Parameter:
| Model | BHD-2.5 |
| Pixel Pitch | 2.5mm |
| Cabinet Size | 480*480mm |
| Cabinet Weight (kg/panel) | 7 |
| Brightness(cd/m²) | 600~800 |
| Refresh Rate | ≥2880Hz |
| Viewing Angle(H/V) | 160°/140° |
| Power Consumption (Max) W/m² | 640 |
| Power Consumption (Avg) W/m² | 215 |
| IP Rating | IP 40/IP 21 |
Advantages :
This product designed with die-casting aluminum, which makes it more stable and effective.
Lightweight makes it easy to operate and install.
The special splicing design realizes a variety of styles, so that the products meet the diverse requirements of customers.
Our products perform well in waterproof, antifreeze and high temperature resistance.
The product has been passed the dust-proof and water-proof, achieving protection standards IP43.
All module edges have made strong compression, which makes the cabinet have better flatness and is not easily deformed.
The box with a sliding iron top, bottom chute, and optional locking device to fine-tune the gap and ensure seamless between the boxes. Please do not squeeze the entire screen which ensure good surface smoothness
