Product Details:
Payment & Shipping Terms:
|
| Physical Pitch: | 1.875mm, 2mm, 2.5mm, 3mm | Cabinet Dimension: | 570*1897* 33mm / 640*1920*35mm |
|---|---|---|---|
| Cabinet Matrial: | Aluminum / Steel | Weight: | 28kg / Set |
| Contrast Ratio: | 4000:1 | Refresh Rate: | ≥3840Hz |
| Brightness: | ＞1,000nits | IP Rating: | IP40 |
| Average Power Consumption: | < 250W / Set | Max Power Consumption: | < 600W / Set |
| Highlight: | led poster screen,mirror led display |
||
| Specifications | |
| Pixel Pitch(mm): | 1.875 / 2 / 2.5 / 2.5 PRO |
| Cabinet Size(mm): | 480*480 |
| Refresh Rate(Hz): | > 1920 Hz |
| Key Point: | Used for high end meeting room, broadcast, TV station, control room, etc. |
Key Features
· Plug-and-Play Design.

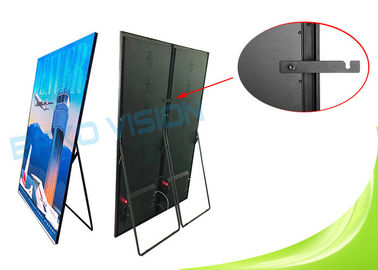

· Several Installation Way: Wall Mounted and Floor Stand Itself.
· Die-casting Aluminum Cabinet, Better Flatness.
· Light Weight Of Cabinet, Easy to Move.
· Cloud System Operation, One Control All.
| Pixel Pitch | 1.875mm | 2.5mm | 2.5mm Pro | 3.0mm |
| Pixel Configuration | SMD 1515 | SMD 2121 | SMD 2121 | SMD 2121 |
| Pixel Density | 279,936pixels/m² | 169,344pixels/m² | 157,464pixels/m² | 110,889pixels/m² |
| Module Dimention(mm) | 160 × 160 | 320 × 160 | 280 × 210 | 192 × 192 |
| Whole Set Dimention(mm) | 640 × 1920 × 35 | 640 × 1920 × 35 | 570× 1897 × 33 | 576 × 1920 × 35 |
| NO.of Modules Per Panel | 4 × 12 | 2 × 12 | 2 × 9 | 3 × 10 |
| Resolution of Module | 84 x 84 | 64× 64 | 108× 81 | 64 × 64 |
| Resolution of Whole Set | 336 × 1,010 | 256 × 768 | 216 × 729 | 192× 640 |
| Panel Material | Aluminum / Steel | |||
| Cabinet Weight | 32 kg | 32 kg | 28 kg | 32 kg |
| Gray Level | 16 bit(281 trillion colors) | |||
| Average Power Consumption | 250W/Set | 200W/Set | 100 W/ Set | 200 W/ Set |
| Max Power Consumption | 750W/Set | 600W/Set | 390 W / Set | 600 W / Set |
| Driving Method | 1/32 Scan | 1/32 Scan | 1/27 Scan | 1/32 Scan |
| Brightness | >1,000 nits | >1,000 nits | >1,000/3500 nits | >1,000 nits |
| Refresh Rate | ≥2,880 Hz | ≥2,880 Hz | ≥3,840 Hz | ≥2,880 Hz |
| Viewing Angle(V/H) | 160°/ 140° | |||
| Frame Rate | 60 fps | |||
| Operating Temp/Humidity | -10ºC~60ºC / 10%~60% | |||
| Storage Temp/Humidity | -30ºC~60ºC / 10%~60% | |||
| IP Rating (Front/Rear) | IP40 | |||
| Expected Lifetime | 100,000 Hrs | |||
· Shopping mall
· Theaters
· Hotel
· Airport
· High-speed rail stations

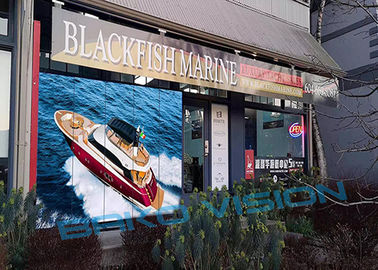

· Store windows
· Expo and exhit venues
· Brand stores
· Performance venues
· Large-scale conference rooms
· Over 10 Years Experience on LED Display Screen Manufacturing in China.
· 3 Years High Quality Warranty Provided.
· Global Quality Standard with CE, EMC, ROHS, ETL, UL, FCC, ISO9001 Certificated.
· Overseas Customer in 120+ Countries in The World.
· Full Capable to Provide the Tailor Work of OEM, ODM.
