Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | P4.81, P5.95, P6.67, P8, P10 | Cabinet Size: | Customized |
|---|---|---|---|
| Pannel Material: | Steel/Aluminum | Servicing: | Front |
| IP Rating(Front/Rear): | IP65/IP54 | Brightness: | ＞5500nits |
| Refresh Rate: | ＞1920Hz | Contrast Ratio: | 2000:1 |
BOF-F Series (BOF-F.pdf)

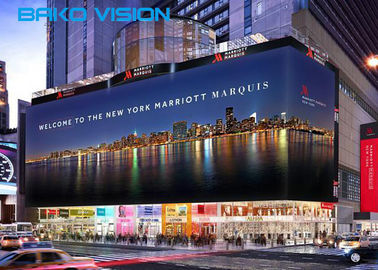

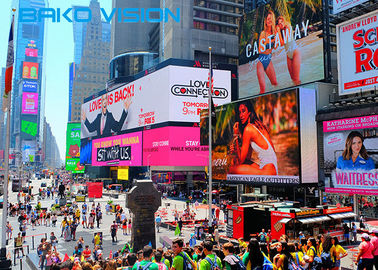

Outdoor LED Billboard
| Specifications | |
|---|---|
| Pixel Pitch(mm): | 4.81 / 5.95 / 6.67 / 8 / 10 |
| Brightness(nits): | Up to 7500 |
| Refresh Rate(Hz): | >1920 |

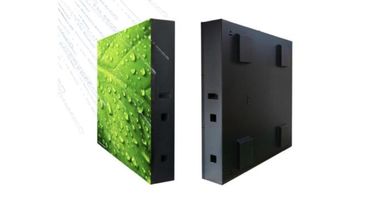

| Key Point: | Front service, wall mount installation, no need to make the maintenance space at the back |
Key Features
Interactive Advertising Signage Parameters
| BOF-F-4 | BOF-F-5 | BOF-F-6 | BOF-F-8 | BOF-F-10 | |
| Physical Pitch | 4.81mm | 5.95mm | 6.67mm | 8mm | 10mm |
| Pixel Configuration | SMD2727 | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
| Module Dimensions | 250×250mm | 320x320mm | 320x160mm | ||
| Panel Dimensions(W × H) | Customized | ||||
| Physical Resolution of Module (WxH) | 52x52 | 42x42 | 48×48 | 40x20 | 32×16 |
| Panel Material | Steel/Aluminum | ||||
| Grayscale | 16bit | ||||
| Colors | 281trillion | ||||
| Average Power Consumption | 90 W/m2 | ||||
| Max. Power Consumption | 230 W/m2 | ||||
| Refresh Rate | ＞1920Hz | ||||
| Brightness | > 5000 nits | > 5500 nits | > 6000 nits | > 6200 nits | > 6500 nits |
| Expected Lifetime | 100,000 Hrs | ||||
| Maintenance Way | Front | ||||
| IP Rating(Front/Rear) | IP65/IP54 | ||||
How much is an Static LED Billboard ?
1. LED billboard price itself - The larger the area, the higher the price will be, which means you could make any size you want according to your budget.
2. Transportation costs - At present, the mode of transportation of LED billboards is the central divide into air and sea shipping. So when considering the mode of transportation, you need to know whether you need to save time or money.
3. Local import tax costs - The cost of import tax varies according to local conditions. We suggest that you make a call to your local customs department by the products name ' LED screen ' or ' LED diaplay ', and the HS code is 8528591090.
4. Installation costs
5. Location costs - Different installation location costs different, an excellent location will bring a better advertising effect.
6. Maintenance costs - the cost of replacing or repairing modules, the cost of replacing power supply/receiving cards and cables, and the maintenance cost of various minor faults.
7. Electricity costs - power = work / time, P = W / T = UI. P stands for power, P for watt, W for work, W for joule, T for time, and T for seconds. KW is W multiplied by 1000.KW/h for power consumption.
About Bako Vision
FAQ:
Q1. What is DIP?
A1: DIP is the abbreviation of DOUBLE IN-LINE PACKAGE, which is assembled in a double in-line.
Q2. What is SMT? What is SMD ?
A2: SMT is a surface assembly technology ( SURFACE MOUNTED TECHNOLOGY ) and is currently the most popular technology and process in the electronics assembly industry; SMD is a surface mount device ( SURFACE MOUNTED DEVICE ).
Q3. What is DIP LED module technology, what are the advantages and disadvantages?
A3: It means that the lamp of DIP package passes the lamp foot through the PCB board, and the tin is filled in the lamp hole by soldering. The module made by this process is the plug-in lamp group. The advantages are: high brightness, good heat dissipation, and the disadvantage is The pixel density is small.
Q4. What is surface mount SMD technology module? What are the advantages and disadvantages?
A4: The surface mount is also called SMT. The SMT packaged lamp is soldered to the surface of the PCB board through the soldering process. The lamp pins do not need to pass through the PCB board. The module made by this process is called the surface mount module. The advantage is that the display effect is good. Large pixel density, suitable for indoor viewing: the disadvantage is that the brightness is not high enough, the lamp itself is not good enough.
