Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | P3, P4, P5, P6.67, P8, P10, P16 | Cabinet Size: | Customized |
|---|---|---|---|
| Pannel Material: | Steel/Magnesium Alloy/Aluminum | Servicing: | Front/Rear |
| IP Rating(Front/Rear): | IP65/IP54 | Brightness: | ＞5500nits |
| Refresh Rate: | ＞1920Hz | Contrast Ratio: | 2000:1 |
| Highlight: | roadside led display,street led screen |
||
Bako Vision High Brightness P6 P8 P10 SMD Full Color Display Outdoor Advertising LED Screen
BOF-B Series (BOF-B.pdf)
Outdoor LED Billboard
| Specifications | |
|---|---|
| Pixel Pitch(mm): | 3 / 4 / 5 / 6.67 / 8 / 10 / 16 |
| Brightness(nits): | Up to 7000 |
| Refresh Rate(Hz): | >1920 |
| Key Point: | Most common outdoor LED billboard |
Key Features
Full Color Display Parameters
| BOF-4 | BOF-5 | BOF-6 | BOF-8 | BOF-10 | |
| Physical Pitch | 4mm | 5mm | 6.67mm | 8mm | 10mm |
| Pixel Configuration | SMD1921 | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
| Module Dimensions | 320×160mm | ||||
| Panel Dimensions(W × H) | Customized | ||||
| Physical Resolution of Module (WxH) | 80x40 | 64x32 | 48×24 | 40x20 | 32×16 |
| Panel Material | Steel/Aluminum/Magnesium alloy | ||||
| Grayscale | 16bit | ||||
| Colors | 281trillion | ||||
| Average Power Consumption | 360 W/m2 | ||||
| Max. Power Consumption | 900 W/m2 | ||||
| Refresh Rate | ＞1920Hz | ||||
| Brightness | > 5000 nits | > 5500 nits | > 6000 nits | > 6200 nits | > 6500 nits |
| Expected Lifetime | 100,000 Hrs | ||||
| Maintenance Way | Rear | ||||
| IP Rating(Front/Rear) | IP65/IP54 | ||||
6 Main points to choose the right Outdoor LED Billboard
1. Cabinet - the most important parts, it must be designed as strictly waterproof, leakproof, drainage measures design.
2. Lightning protection device - this device should be installed on the building with the outdoor billboard led display, ensure the cabinets are grounded well, and the grounding resistance is less than 3 ohms. So, the power source can be discharged in time by large current.
3. Cooling system equipment - If the temperature and weather in your country is always very hot or could, then the air conditional cooling equipment must be installed for the outdoor billboard led display, you need to ensure the internal temperature is between -10 degrees ~ 40 degrees.
4. Brightness - The brightness of the outdoor billboard LED display is always very important to suit with your local environment, you need to make sure the height of installation place, view distance from the people, natural sun brightness, installation environment when you are discussing the solutions with your supplier.
5. Maintenance way - Front access/Rear access, it's according to that do you have the space to repair the outdoor billboard from the rear or front the installation.
6. Control system - Synchronous/Asynchronous.

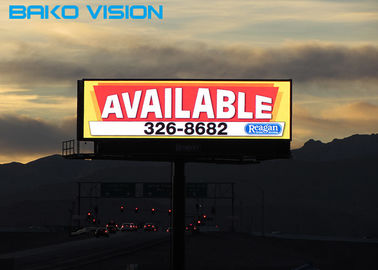

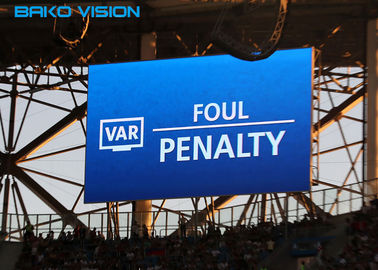

Advertising LED Screen Cases
About Bako Vision
FAQ:
Q1. What is DIP?
A1: DIP is the abbreviation of DOUBLE IN-LINE PACKAGE, which is assembled in a double in-line.
Q2. What is SMT? What is SMD ?
A2: SMT is a surface assembly technology ( SURFACE MOUNTED TECHNOLOGY ) and is currently the most popular technology and process in the electronics assembly industry; SMD is a surface mount device ( SURFACE MOUNTED DEVICE ).
Q3. What is DIP LED module technology, what are the advantages and disadvantages?
A3: It means that the lamp of DIP package passes the lamp foot through the PCB board, and the tin is filled in the lamp hole by soldering. The module made by this process is the plug-in lamp group. The advantages are: high brightness, good heat dissipation, and the disadvantage is The pixel density is small.
Q4. What is surface mount SMD technology module? What are the advantages and disadvantages?
A4: The surface mount is also called SMT. The SMT packaged lamp is soldered to the surface of the PCB board through the soldering process. The lamp pins do not need to pass through the PCB board. The module made by this process is called the surface mount module. The advantage is that the display effect is good. Large pixel density, suitable for indoor viewing: the disadvantage is that the brightness is not high enough, the lamp itself is not good enough.
