Product Details:
Payment & Shipping Terms:
|
| Panel Size: | 560x1890mm | Panel Weight: | 27kg/set |
|---|---|---|---|
| Video And Audio: | Support | Control Method: | USB, Wifi, Mobile Phone |
| Usage: | Events, Retail | LED Configuration: | Nationstar GOB |
| Highlight: | led poster screen,mirror led display |
||

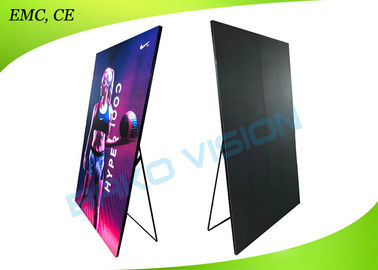

Seamless P2.5 LED Poster Nationstar GOB , W 560 mmx H 1890mm x T 30mm

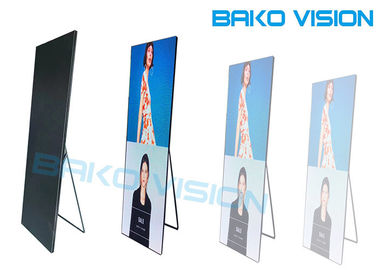

1. Three versions for your full options
Standard version, pro version, seamless version
2. Slim, lightweight, portable
Only 27kg, 30mm thick, no bezels
3. Smart control
By USB “plug & play”, WIFI connect, send video on mobile phone
4. Digital, novel advertising
A/V solutions, retail environments, conference room...
5. Quality assure

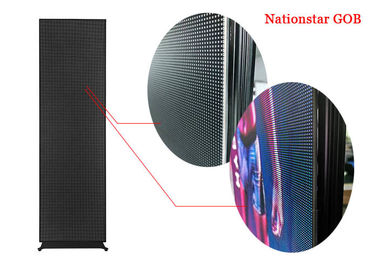

Nationstar GOB, Aluminum material, anti-scratch and good thermal effect

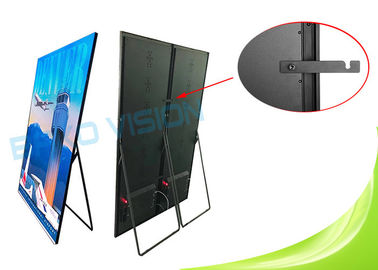

6. Easy and optional installation methods
Individuals, splicing, bracket standing, vertical standing base, wall mounting, hanging...
Parameters:
| Pixel Pitch | 1.9mm | 2.5mm | 2.5mm Pro | 3.0mm |
| Pixel Configuration | SMD 1515 | SMD 2121 | SMD 2121 | SMD 2121 |
| Pixel Density | 279,936pixels/m² | 169,344pixels/m² | 157,464pixels/m² | 110,889pixels/m² |
| Module Dimention(mm) | 160 × 160 | 160 × 160 | 280 × 210 | 192 × 192 |
| Whole Set Dimention(mm) | 640 × 1920 × 35 | 640 × 1920 × 35 | 571× 1897 × 33 | 574 × 1928 × 35 |
| NO.of Modules Per Panel | 4 × 12 | 2 × 9 | 2 × 9 | 2 × 9 |
| Resolution of Module | 84 x 84 | 64× 64 | 108× 81 | 64 × 64 |
| Resolution of Whole Set | 336 × 1,010 | 256 × 768 | 216 × 729 | 192× 640 |
| Panel Material | Aluminum | |||
| Cabinet Weight | 32 kg | 32 kg | 28 kg | 32 kg |
| Gray Level | 16 bit(281 trillion colors) | |||
| Contrast Ratio | 4000 : 1 | 4000 : 1 | 4000 : 1 | 4000 : 1 |
| Average Power Consumption | 250W/Set | 200W/Set | 100 W/ Set | 200 W/ Set |
| Max Power Consumption | 750W/Set | 600W/Set | 390 W / Set | 600 W / Set |
| Driving Method | 1/32 Scan | 1/32 Scan | 1/27 Scan | 1/32 Scan |
| Brightness | >1,000 nits | >1,000 nits | >1,000/3500 nits | >1,000 nits |
| Refresh Rate | ≥2,880 Hz | ≥2,880 Hz | ≥3,840 Hz | ≥2,880 Hz |
| Viewing Angle(V/H) | 160°/ 140° | |||
| Frame Rate | 60 fps | |||
| Operating Temp/Humidity | -10ºC~60ºC / 10%~60% | |||
| Storage Temp/Humidity | -30ºC~60ºC / 10%~60% | |||
| IP Rating(Front/Rear) | IP40 | |||
| Expected Lifetime | 100,000 Hrs | |||
About Bako Vision:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
