Product Details:
Payment & Shipping Terms:
|
| LEDs: | SMD2121 | Control System: | Novastar |
|---|---|---|---|
| Servicing: | Front | Viewing Angle: | 160°/140° |
| Refresh Rate: | ＞1920Hz | Contrast Ratio: | 4000:1 |
| Highlight: | stage led video wall,led video wall display |
||
P3 P4 P5 Indoor Wall mounted Front Access Front Service Fixed Led Video Wall For Hall
Fixed Led Video Wall Quick Details:
1, Pixel Pitch: 3mm 4mm 5mm.
2, Full colors: 281trillions.
3, SMD, Wide viewing angle: 160°/ 140°.
4, Standard cabinet size: Customized, weight: 40kg/m2.
5, Recommended minimum viewing distance: 5m.
6, Warranty: 2years.
Fixed Led Video Wall Description :
Bako Vision indoor LED Wall include permanent installation indoor electronic led display, the pixel various from 3mm, 4mm, 5mm, 6mm.You can use it as billboard or Led Wall in Concert hall or shop and so on.
Fixed Led Video Wall Features:
1, High brightness from 900nits to 1,200nits, visible from every direction indoor.
2, SMD LEDs ensure large viewing angle, up to 160° horizontally and 140° vertically.
Image no distortion, no color cast in any angle within this range.
3, Cabinet design lightweight, side handle for easy carrying and assemble job.
4, Meanwell brand power supply, saving energy and high efficiency.
5, Digital process: 16bits, High contrast ratio 4000:1, vivid color.
6, You can choose front service or back service, it's easy for maintenance
Fixed Led Video Wall Specification:
| Physical Pitch | 3mm | 4mm | 5mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density | 111,111 pixels/Sqm | 62,500 pixels/Sqm | 40,000 pixels/Sqm |
| Module Dimensions(W x H) (mm) | 192 x 192 | 256 x 128 | 320 x 160 |
| Panel Dimensions (mm) | 960 x 960 | 1024 x 768 | 1280 x 960 |
| NO. of Modules Per Panel (W x H) | 5 x 5 | 4 x 6 | 4x 6 |
| Physical Resolution of Module (W x H) | 64 x 64 | 64 x 32 | 64 x 32 |
| Physical Resolution of Panel (W x H) | 320 x 320 | 256 x 192 | 256 x 192 |
| Panel Material | Steel / Aluminum | Steel / Aluminum | Steel / Aluminum |
| Scan Method | 1/32 Scan | 1/16 Scan | 1/16 Scan |
| Gray Scale | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 |
| Average Power Consumption | 120 W /Sqm | 120 W /Sqm | 120 W /Sqm |
| Max Power Consumption | 400 W /Sqm | 400 W /Sqm | 400 W /Sqm |
| Operating Temp/Humidity | -10ºC - 60ºC / 10% - 60% | -10ºC - 60ºC / 10% - 60% | -10ºC - 60ºC / 10% - 60% |
| Storage Temp/Humidity | -30ºC - 60ºC / 10% - 60% | -30ºC - 60ºC / 10% - 60% | -30ºC - 60ºC / 10% - 60% |
| Refresh Rate | >1,920Hz | >1,920Hz | >1,920Hz |
| Brightness | 900-1,200nits | 900-1,200nits | 900-1,200nits |
| Horizontal Viewing Angle | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front / Rear | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP 21 | IP 21 | IP 21 |

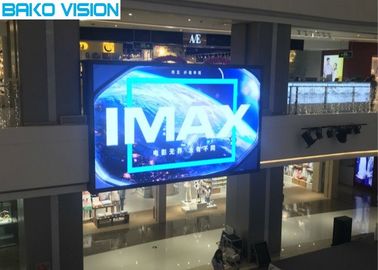

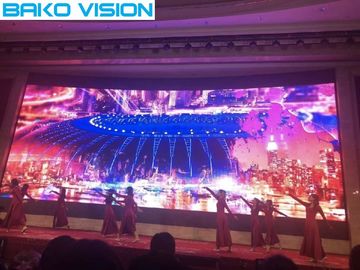

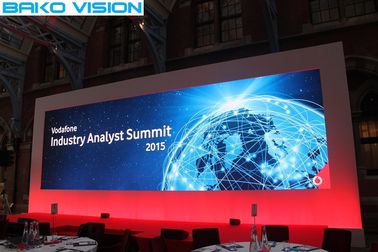

Fixed Led Video Wall Case:
Pre-sale service
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide professional solutions based on customer's requirement.
4. Offer sample and all document as customers required.
5. Other services, such as factory visiting and so on.
In-sale service
1. Tracking report of production.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
After-sale service
1. Lifetime maintenance and software upgrade.
2. Complaint respond period not exceed 24 hours, maintenance guidance and problem solution supplied in 48 hours.
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
5. Engineer guide installation onsite if needed.
