Product Details:
Payment & Shipping Terms:
|
| Physical Pitch: | 3mm | Panel Material: | Die-casting Aluminium |
|---|---|---|---|
| Module Size:: | 240mm*240mm | LED Chip: | Nationstar |
| Power Supply: | G-energy | Life Span: | 100,000 Hrs |
| Pixel Configuration: | SMD2020 | Contrast Ratio: | 4000:1 |
| Highlight: | front maintenance led display,outdoor full color led screen |
||

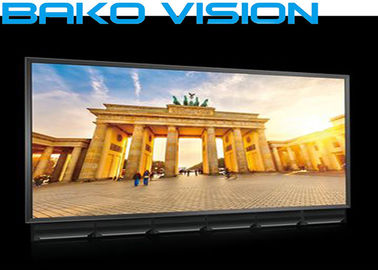

P3mm High Clearful Fixed Indoor Front Access Led Screen With Magnetic LED board
Specifications:
Light: Cabinet size 480mm X 480mm, Weight 6.4 kg/pcs;
Thin: Die-cast aluminum , high precision;
Fast: Fast locks, Easy to assemble and disassemble.
Perfect screen flatness, Polymeric nanocomposites cabinet.
Provide steel structure together, not need to build structure locally.
Sample structure, quick installation on the spot.
1.High brightness and stable performance lead long lifespan and low power consumption.
2.Accurate color uniformity and smoother, flicker-free video displaying.
3.Wide viewing angle, high contrast, high brightness (adjustable), high intensity (14bit gradation processing), high refresh, softer image, display life like images to meet the high-speed motion picture display.
1.High brightness and stable performance lead long lifespan and low power consumption.
2.Accurate color uniformity and smoother, flicker-free video displaying.
3.Wide viewing angle, high contrast, high brightness (adjustable), high intensity (14bit gradation processing), high refresh, softer image, display life like images to meet the high-speed motion picture display.
Parameter
| BHD-3 | |
| Physical Pitch | 3mm |
| Pixel Configuration | SMD 2020 |
| Pixel Density | 111,111 pixels/m² |
| Module Dimensions(W*H)(mm) | 240 × 240 |
| Panel Dimensions(mm) | 480 × 480 |
| NO. of Modules Per Panel (W*H) | 2*2 |
| Panel Material | Die-Casting Aluminum |
| Colors | 281Trillion |
| Processing | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 80*80 |
| Physical Resolution of Panel(W*H)(mm) | 160*160 |
| Single Cabinet Weight | 7 kg/panel |
| Average Power Consumption | 260W/panel |
| Max Power Consumption | 690W/panel |
| Brightness | 600-1000nits |
| Viewing Angle | H:160°/ V:140° |
| Operating Temp/ Humidity | -20ºC-50ºC/10%-90% |
| Storage Temp/ Humidity | -40ºC-60ºC/10%-90% |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front |
| IP Rating(Front/Rear) | IP 40 |
| Max Stacking | 20/10 |
| Max Hanging | 20/10 |
| Refresh Rate | >2,880 Hz |
| Scan Method | 1/20 Scan |
Pruduct details
Indoor module Front and rear maintenance , HD, Stable, Seamless
1.More can be set to the wall, flat large wall installation, compact space installation for 8 cm thickness make your space more spacious.
2.Before/after maintenance seamless HD.
3.Led display can be any size, any direction, a variety of specifications for installation, maintenance, convenient management.
High efficiency service-More convenient
Complete front & rear service for LED module and modular control box. Barrier free and quick service when customer do front service, easier operation
The use of magnetic suction mode installation, more space-saving, more beautiful, pre-maintenance more convenient.
Trade terms:
1. Payment terms: by TT, 30% advanced payment at time of order placement and the balance before shipment
2. Lead-time: 20 working days after receiving 30% deposit and balance before the shipment
3. Price term: EXW Shenzhen or FOB Shenzhen
4. Shipment: by sea or by air, Shenzhen Port, HS Code: 8528591090
5. Packing: foam packing in wooden carton or flight case
6. Warranty: we offer 2 years warranty, all products have age testing, shaking testing, waterproof testing, in general, module test is 24h, entire screen test is 72h, series of testing before delivery can ensure transportation and quality products.
